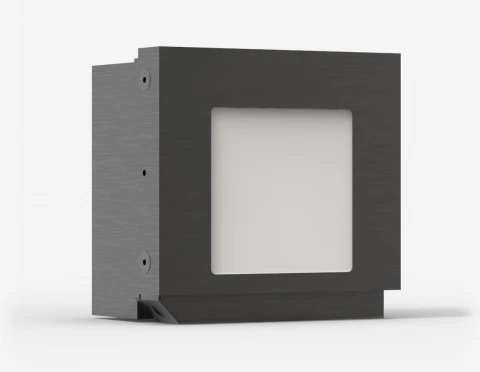

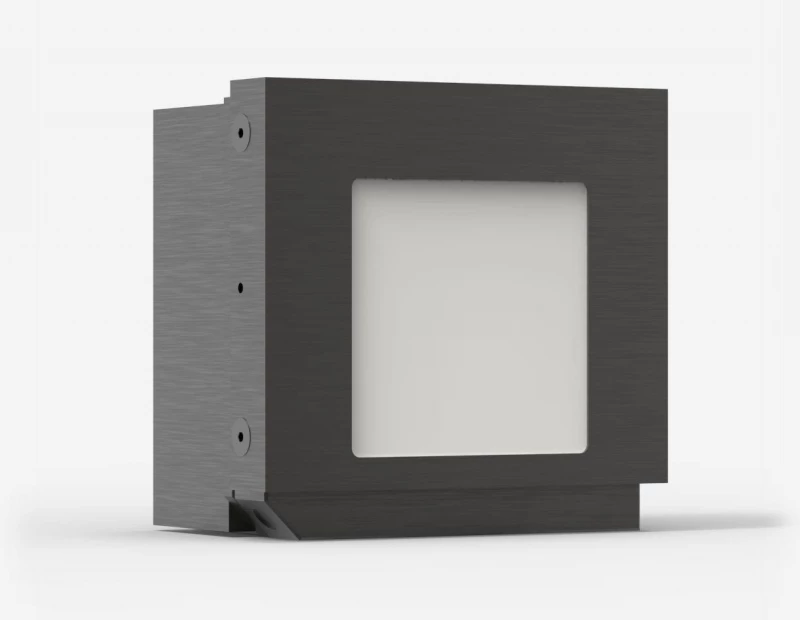

Thumbnail of QE50LP-H-MB-QED-D0 Pyroelectric Detector photo 1

Description

The QE50LP-H-MB-QED-D0 is a high-performance pyroelectric detector designed for laser energy measurement up to 85 J.

This versatile detector offers a range of features and options to suit various laser applications, making it an essential tool for precise energy measurements.

QE50LP-H-MB-QED-D0 Pyroelectric Detector

Visit the Gentec-EO Store

Specifications

Max Measurable Energy: 85000 mJ
Max Repetition Rate: 200 Hz
Effective Aperture: 47 mm
Spectral Range: 0.3 – 2.1 um
Typical Rise Time: 900 us
Repeatability: <0.5 %
Typical Energy Sensitivity: 3 V/J
Maximum Measurable Energy: 85 J
Maximum Measurable Energy: 200 uJ
Maximum Pulse Width: 675 us
Energy Calibration Uncertainty: ±3 %
Maximum Average Power Density: 600 W/cm²
Maximum Energy Density: 8 J/cm²
Cooling: Convection (heatsink)
Maximum Power: 45 W
Absorber: QED
Weight: 0.34 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Modular Concept: Increase the power capability of your detector with two different cooling modules
  • Low Noise Level: Achieve a noise level as low as 10 µJ for the MB coating
  • QED Attenuator Available: Measure up to 5X higher energies, available with optional calibration for all wavelengths between 532 & 1064 nm or single wavelength
  • High Repetition Rate Options: Choose from different repetition rates, including QE-MB: 200 Hz (standard), QE-MB: 500 Hz (upon request), and QE-MT: 4,000 Hz (standard)
  • Test Target Included: Comes with test targets for the MB models
  • Smart Interface: Contains all the calibration data
  • Compatible Stand: Designed to work seamlessly with compatible stands and displays & PC interfaces

Applications

  • Ideal for laser energy measurement in a wide range of settings
  • Suitable for research, industrial, and scientific laser applications
  • Offers precise measurements for quality control and process optimization

Frequently Asked Questions

What is the Gentec-EO QE series used for?
The Gentec-EO QE series is used to measure laser energy.
What is the maximum measurable energy for the QE50LP-H-MB-QED-D0?
The maximum measurable energy for the QE50LP-H-MB-QED-D0 is 85 J.
What is the noise equivalent energy for the QE50LP-H-MB-QED-D0?
The noise equivalent energy for the QE50LP-H-MB-QED-D0 is 20 μJ.
What is the spectral range for the QE series?
The spectral range for the QE series is 0.3 - 2.1 μm.
What is the weight of the QE50LP-H-MB-QED-D0?
The weight of the QE50LP-H-MB-QED-D0 is 0.34 kg.

Got more questions? Use the inquiry form to ask the supplier directly.
