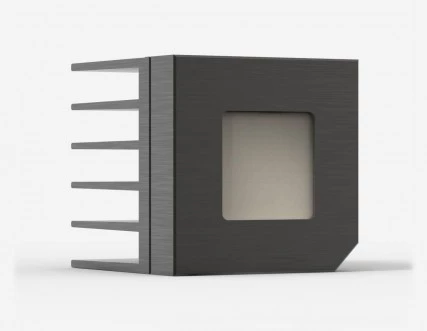

Thumbnail of Gentec-EO Pyroelectric Detector QE25SP-H-MT-D0 photo 1

Description

The Gentec-EO QE series is a robust line of high performance and high accuracy pyroelectric joulemeters that are designed to measure laser energy. Each modular unit is built for durability, compactness and ease of operation.

The QE optical absorber exhibits high damage thresholds and can operate at high rep-rates. The QE series can be used to even higher energy levels with QED attenuator / diffuser.

Gentec-EO Pyroelectric Detector QE25SP-H-MT-D0

Visit the Gentec-EO Store

Specifications

Max Measurable Energy: 3000 mJ
Max Repetition Rate: 6000 Hz
Effective Aperture: 25 mm
Spectral Range: 0.19 – 20 um
Maximum Measurable Energy: 3 J
Spectral Range: 0.19 - 20 μm
Typical Rise Time: 20 µs
Repeatability: <0.5%
Maximum Repetition Frequency: 6000 Hz
Typical Energy Sensitivity: 20 V/J
Noise Equivalent Energy: 2 μJ
Maximum Pulse Width: 10 μs
Energy Calibration Uncertainty: ±3 %
Maximum Average Power Density: 10 W/cm²
Maximum Energy Density: 0.5 J/cm²
Maximum Power: 10 W
Aperture Width: 25 mm
Aperture Height: 25 mm
Absorber: MT
Dimensions: 50H x 50W x 14D mm
Weight: 0.19 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • The QE series benefits from the use of a DB-15 male, “Smart Interface” connector, containing a memory chip programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific Q series joulemeter head. This connector permits the Gentec-EO display or PC interface automatically adjust to the characteristics of the joulemeter being connected.
  • All QE series detectors are also available with the INTEGRA connector. This option only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232 or USB with external trigger.
  • Every QE series joulemeter features high intrinsic responsivity and high insensitivity to electromagnetic interference.
  • The QE series also offers an exceptionally wide dynamic range and permits energy measurement from UV to far IR.
  • The QE series joulemeters are also available as custom products with analog output to be used with an oscilloscope or an OEM acquisition system.

Applications

  • Laser energy measurements
  • Laser optics
  • Spectroscopy
  • Metrology

Frequently Asked Questions

What is the benefit of the Smart Interface connector?
The Smart Interface connector contains calibration sensitivity, spectral correction factors, and other data relating to the specific joulemeter head, allowing the Gentec-EO display or PC interface to automatically adjust to the characteristics of the joulemeter being connected.
What is the Gentec-EO QE series used for?
The Gentec-EO QE series is used to measure laser energy.
What is the INTEGRA connector option?
The INTEGRA connector option only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, spectral correction factors, and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232, or USB with external trigger.
What is the maximum measurable energy for the QE25SP-H-MT-D0 laser energy detector?
The maximum measurable energy for the QE25SP-H-MT-D0 is 23 J.
What is the typical energy sensitivity for the QE series?
The typical energy sensitivity for the QE series is 20 V/J.

Got more questions? Use the inquiry form to ask the supplier directly.
