Description
Enhance your laser energy measurement capabilities with the Gentec QE25LP-H-MB-QED-D0 Pyroelectric Detector. Designed for accuracy and reliability, this detector allows precise measurement of laser energy up to 23 J.
With traceable calibration, high repeatability, and versatile compatibility, this energy detector caters to various applications in research, industrial processes, and laser system development.

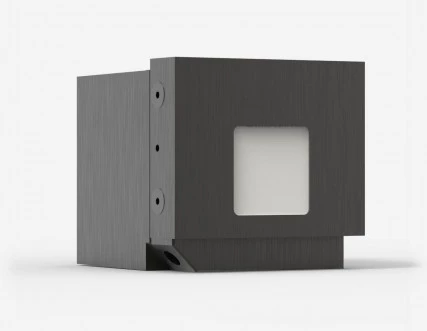

QE25LP-H-MB-QED-D0 Pyroelectric Detector for Laser Energy Measurement
Specifications
Max Measurable Energy: | 23000 mJ |
---|---|
Max Repetition Rate: | 300 Hz |
Effective Aperture: | 22 mm |
Spectral Range: | 0.3 – 2.1 um |
Repeatability: | <0.5 % |
Maximum Measurable Energy: | 23 J |
Noise Equivalent Energy: | 8.0 μJ |
Maximum Pulse Width: | 400 μs |
Energy Calibration Uncertainty: | ±3 % |
Maximum Average Power Density: | 600 W/cm² |
Maximum Energy Density: | 8 J/cm² |
Maximum Power: | 30 W |
Cooling: | Convection (heatsink) |
Absorber: | QED |
Dimensions: | 53H x 55W x 58D mm |
Features
- High Energy Capacity: Measures laser energy up to 23 J
- Traceable Calibration: Reliable and accurate measurements with NIST-traceable calibration
- Wide Spectral Range: Covers the spectral range from 0.3 to 2.1 μm
- Exceptional Repeatability: Provides repeatability of less than 0.5% for consistent results
- High Repetition Frequency: Capable of handling a maximum repetition frequency of 300 Hz
- Low Noise Equivalent Energy: Achieves a noise equivalent energy of 8 μJ for sensitivity
- Extended Pulse Width: Supports a maximum pulse width of 400 μs for versatile applications
Applications
- Industrial Laser Systems: Ideal for monitoring laser energy in industrial laser systems
- Research and Development: Suitable for R&D applications requiring precise laser energy measurements
- Quality Control: Ensures laser system performance meets stringent quality standards
Frequently Asked Questions
What applications can the QE series joulemeter be used for?
The QE series joulemeter can be used for laser energy measurements, laser optics, spectroscopy, and metrology.
What is the Gentec-EO QE series used for?
The Gentec-EO QE series is used for measuring laser energy.
What is the INTEGRA connector used for?
The INTEGRA connector only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific QE series joulemeter head.
What is the QE optical absorber capable of?
The QE optical absorber exhibits high damage thresholds and can operate at high rep-rates.
What is the Smart Interface connector used for?
The Smart Interface connector contains a memory chip programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific Q series joulemeter head. This connector permits the Gentec-EO display or PC interface to automatically adjust to the characteristics of the joulemeter being connected.
