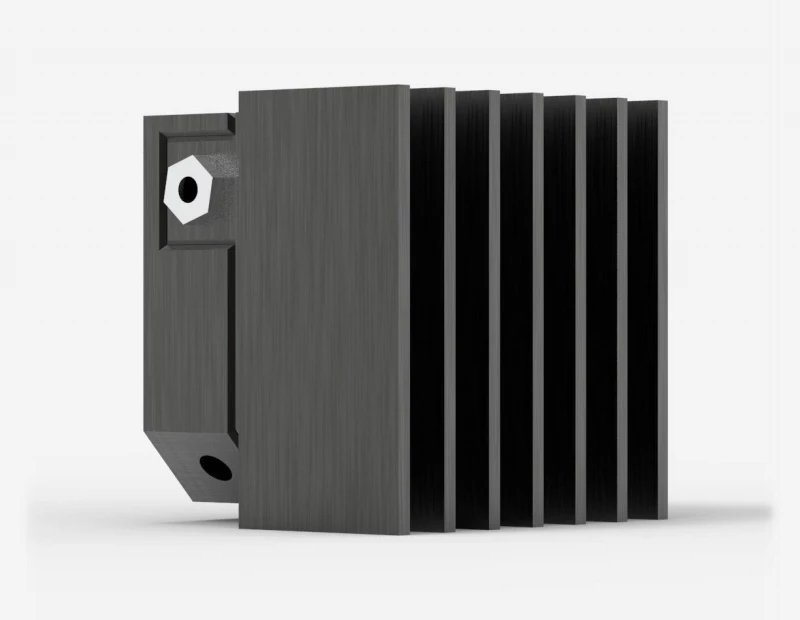

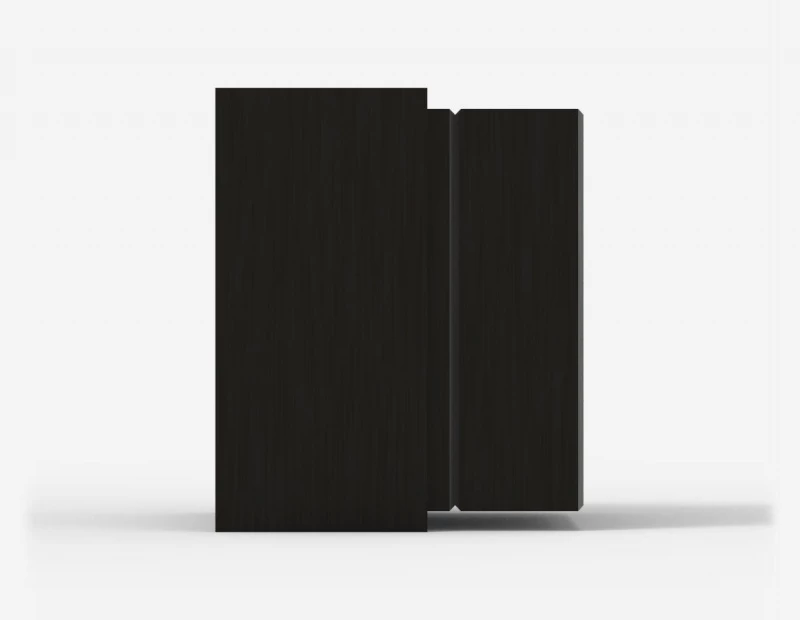

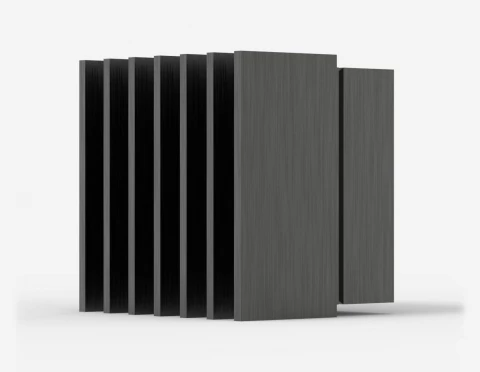

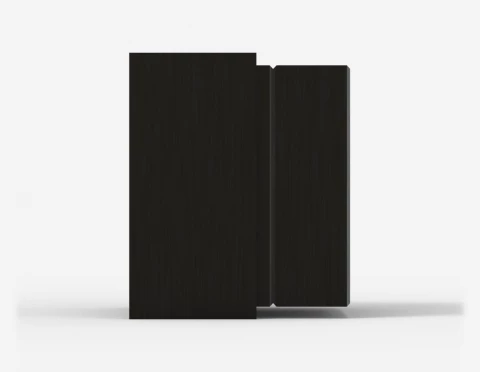

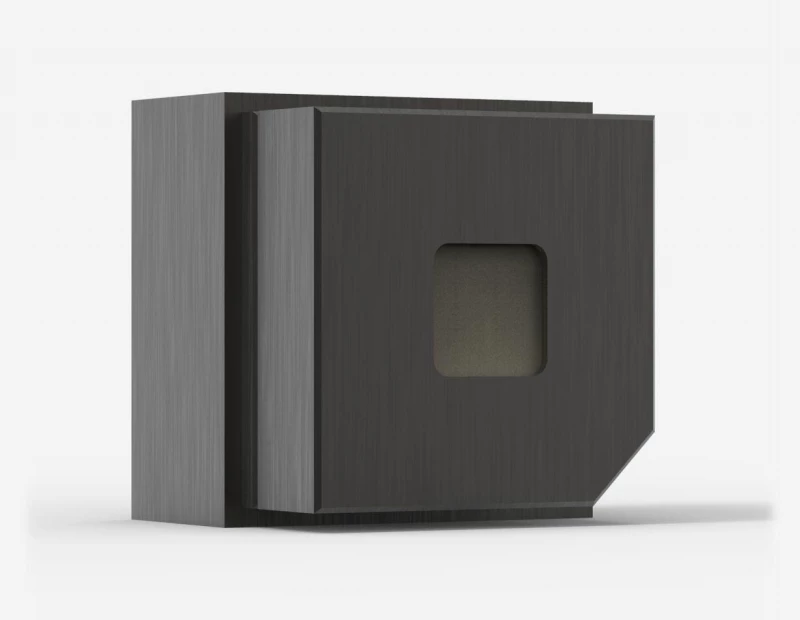

QE12HR-H-MB-D0 Pyroelectric Detector for Laser Energy Measurement
Description
Experience precise laser energy measurement with the Gentec QE12HR-H-MB-D0 Pyroelectric Detector. Engineered with advanced pyroelectric technology, this detector ensures accurate readings up to 0.85 J. With traceable calibration and versatile compatibility, it's an essential tool for applications requiring reliable laser energy measurements.
QE12HR-H-MB-D0 Pyroelectric Detector for Laser Energy Measurement
Specifications |
|
|---|---|
| Max Measurable Energy: | 850 mJ |
| Max Repetition Rate: | 1000 Hz |
| Effective Aperture: | 12 mm |
| Spectral Range: | 0.19-20um |
| Repeatability: | <0.5 % |
| Maximum Measurable Energy: | 0.85 J |
| Noise Equivalent Energy: | 1.4 μJ |
| Maximum Pulse Width: | 40 μs |
| Energy Calibration Uncertainty: | ±3 % |
| Maximum Average Power Density: | 10 W/cm² |
| Maximum Energy Density: | 0.6 J/cm² |
| Maximum Power: | 5 W |
| Cooling: | Convection (heatsink) |
| Absorber: | MB |
| Dimensions: | 36H x 36W x 33D mm |
Features
- High Precision: Accurately measures laser energy up to 0.85 J
- Wide Spectral Range: Covers wavelengths from 0.193 to 20 μm for diverse laser applications
- Fast Repeatability: Achieves <0.5% repeatability for consistent and reliable results
- High Repetition Frequency: Supports a maximum repetition frequency of 1000 Hz
- Compact Design: Compact dimensions of 36H x 36W x 33D mm and lightweight at 0.12 kg
- Convection Cooling: Utilizes convection cooling with a heatsink for efficient temperature management
- Damage Thresholds: Withstands maximum average power density and energy density for durability
- Traceable Calibration: NIST-traceable calibration ensures measurement reliability
Applications
- Research and Development: Ideal for R&D environments requiring precise laser energy measurements
- Industrial Applications: Suitable for integration into industrial laser systems requiring accurate energy monitoring
- High Repetition Applications: Perfect for applications with high repetition frequencies, up to 1000 Hz
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Gentec-EO QE series is used to measure laser energy.
The maximum measurable energy for the QE12HR-H-MB-D0 detector is 0.85 J.
The maximum repetition frequency for the QE12HR-H-MB-D0 detector is 6000 Hz.
The noise equivalent energy for the QE12HR-H-MB-D0 detector is 1.4 μJ.
The QE series joulemeters have a spectral range of 0.19 - 20 μm.
