Description
Gentec-EO offers QE95 series energy detectors for pulse energy measurements of up to 250J in a wide spectral range with an attenuator and 70J - without attenuator.

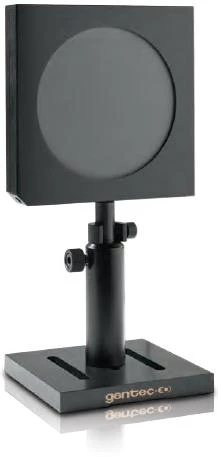

Gentec-EO - Energy Detector - QE95ELP-S-MB
Specifications
| Max Measurable Energy: | 70000 mJ |
|---|---|
| Max Repetition Rate: | 10 Hz |
| Effective Aperture: | 95 mm |
| Spectral Range: | 0.19 – 20 um |
Download Data Sheet
Features
- MODULAR CONCEPT: Increase the power capability of your detector: 2 different cooling modules
- EXTRA LARGE APERTURE: Effective aperture of 95 mm Ø
- QED ATTENUATOR AVAILABLE: Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength.
- LOW NOISE LEVEL: 15 μJ for the MB coating
- TEST TARGET INCLUDED: With the MB models
- SMART INTERFACE: Containing all the calibration data
Applications
Pulsed high power laser energy measurements in a wide spectral range:
- 300nm - 2.1um (with attenuator)
- Spectroscopy
Frequently Asked Questions
What is the maximum pulse energy that can be measured with the Gentec-EO QE95ELP-S-MB energy detector?
The Gentec-EO QE95ELP-S-MB energy detector can measure pulse energy of up to 250J with an attenuator and 70J without an attenuator.
What is the effective aperture of the Gentec-EO QE95ELP-S-MB laser energy detector?
The Gentec-EO QE95ELP-S-MB energy detector has an effective aperture of 95 mm Ø.
Can the Gentec-EO QE95ELP-S-MB energy detector measure higher energies than its maximum limit?
Yes, the Gentec-EO QE95ELP-S-MB energy detector can measure up to 5X higher energies with the QED attenuator available as an option.
What is the noise level of the MB coating of the Gentec-EO QE95ELP-S-MB energy detector?
The noise level of the MB coating of the Gentec-EO QE95ELP-S-MB energy detector is 15 μJ.
What is included with the MB models of the Gentec-EO QE95ELP-S-MB laser energy detector?
The MB models of the Gentec-EO QE95ELP-S-MB energy detector come with a test target included.
