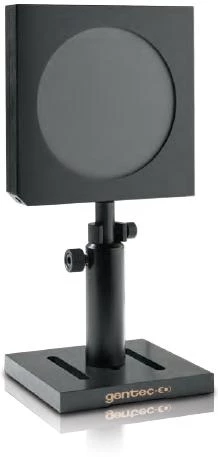

Gentec-EO - Energy Detector - QE95ELP-H-MB

Specifications

Max Measurable Energy: 70000 mJ
Max Repetition Rate: 10 Hz
Effective Aperture: 95 mm
Spectral Range: 0.19 – 20 um
Damage Threshold (Max Power): 40 W
Document icon Download Data Sheet Download icon

Features



  • MODULAR CONCEPT: Increase the power capability of your detector: 2 different cooling modules

  • EXTRA LARGE APERTURE: Effective aperture of 95 mm Ø

  • QED ATTENUATOR AVAILABLE: Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength.

  • LOW NOISE LEVEL: 15 μJ for the MB coating

  • TEST TARGET INCLUDED: With the MB models

  • SMART INTERFACE: Containing all the calibration data


Applications

Pulsed high power laser energy measurements in a wide spectral range:




  • 300nm - 2.1um (with attenuator)

  • Spectroscopy
