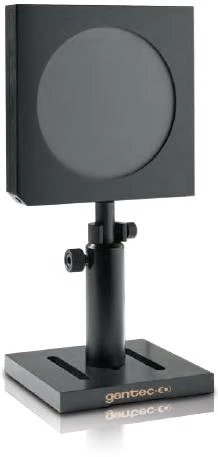

Gentec-EO - Energy Detector - Attenuator - QE95LP-S-MB-QED

Gentec-EO
REQUEST QUOTE
Gentec-EO - Energy Detector - Attenuator - QE95LP-S-MB-QED

OVERVIEW

Gentec-EO offers QE95 series energy detectors for pulse energy measurements of up to 250J in a wide spectral range with an attenuator and 70J - without attenuator.

SPECIFICATION

  • Max Measurable Energy: 250000 mJ
  • Max Repetition Rate: 40 Hz
  • Effective Aperture: 95 mm
  • Spectral Range: 0.3 - 2.1 um
Download Data Sheet

Applications

- Pulsed high power laser energy measurements in a wide spectral range:
300nm - 2.1um (with attenuator)

- Spectroscopy

KEY FEATURES

1. MODULAR CONCEPT
Increase the power capability of your detector: 2 different cooling modules

2. EXTRA LARGE APERTURE
Effective aperture of 95 mm Ø

3. QED ATTENUATOR AVAILABLE
- Measure up to 5X higher energies
- Available with optional calibration, all wavelengths between 532 & 1064 nm, or
single wavelength

4. LOW NOISE LEVEL
15 μJ for the MB coating

5. TEST TARGET INCLUDED
With the MB models

6. SMART INTERFACE
Containing all the calibration data
