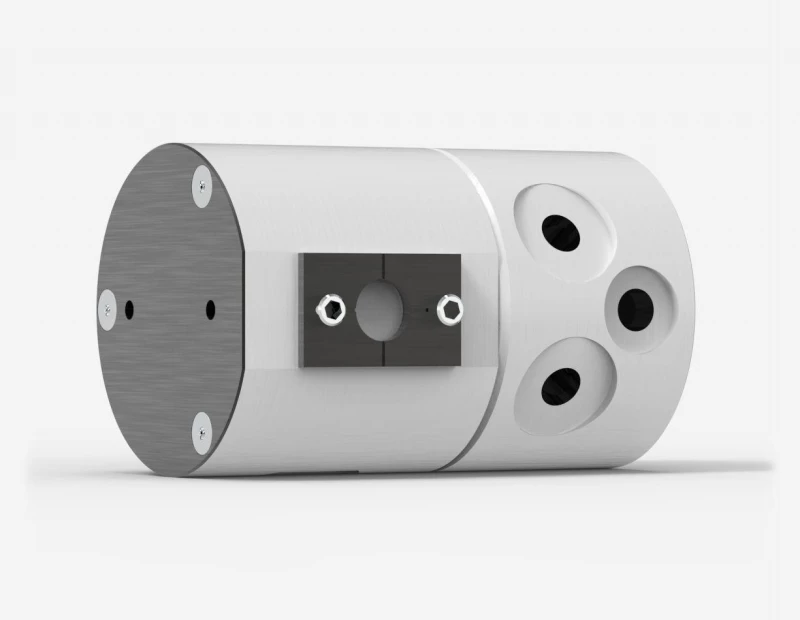

Gentec-EO M6-6-SI Integrating Sphere Detector
Description
The Gentec-EO M6-6-SI is an advanced integrating sphere detector designed for accurate laser energy measurement up to 200 µJ. With a broad spectral range, fast response time, and exceptional precision, this detector is a versatile tool for laser research, industrial applications, and material testing.
Gentec-EO M6-6-SI Integrating Sphere Detector
Specifications |
|
|---|---|
| Max Measurable Energy: | 200 mJ |
| Max Repetition Rate: | 200000 Hz |
| Effective Aperture: | 6 mm |
| Spectral Range: | 0.35-1.1um |
| Typical Rise Time: | 150 ns |
| Repeatability: | ±1 % |
| Noise Equivalent Energy: | 2 nJ |
| Maximum Pulse Width: | 100 ns |
| Energy Calibration Uncertainty: | ±4 % |
| Maximum Power: | 5.0 W |
| Absorber: | Si |
| Dimensions: | 38.1 Ø x 58.4D mm |
| Weight: | 0.15 kg |
Features
- Laser Energy Measurement: Capable of measuring laser energy up to 200 µJ
- High Sensitivity: Offers a noise equivalent energy of 2 nJ for precise measurements
- Wide Spectral Range: Covers the spectral range from 0.35 to 1.1 μm
- Fast Response: Exhibits a typical rise time of 150 ns
- Repeatability: Provides repeatability within ±1% for consistent results
- Maximum Repetition Frequency: Supports measurements at a maximum repetition frequency of 200,000 Hz
- Maximum Pulse Width: Measures pulses with a maximum width of 100 ns
- Energy Calibration Uncertainty: Maintains accuracy with an uncertainty of ±4%
Applications
- Laser Research: Essential for laser characterization and performance evaluation
- Industrial Laser Applications: Used in various laser-based industrial processes
- Material Testing: Ideal for non-destructive testing and quality control
- Scientific Experiments: Suitable for a wide range of scientific experiments
- Laser Development: Supports the development of laser systems and components
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The MACH 6 Joulemeter is an energy meter that can measure every pulse at up to 200 kHz with 12-bit digital accuracy and capture up to 4 million pulses in real time.
The MACH 6 Joulemeter is designed to support fast energy probes that include Silicon, InGaAs, and Pyroelectric Detectors.
The MACH 6 Joulemeter can measure from pJ to mJ and from 0.35 to 2.5 μm.
The key features of the MACH 6 Joulemeter include up to 200 kHz pulse-to-pulse capture and store, tracking missing pulses and pulses below threshold, several heads to choose from, analog module available, full-speed USB 2.0 connection, and user-friendly software with many diagnostic features.
The MACH 6 Joulemeter is available in different models including M6-6-Si, M6-6-Si-L, M6-6-In, M6-6-In-L, M6-6-PY, and M6-12.5-PY, each with different specifications and measurement capabilities.
