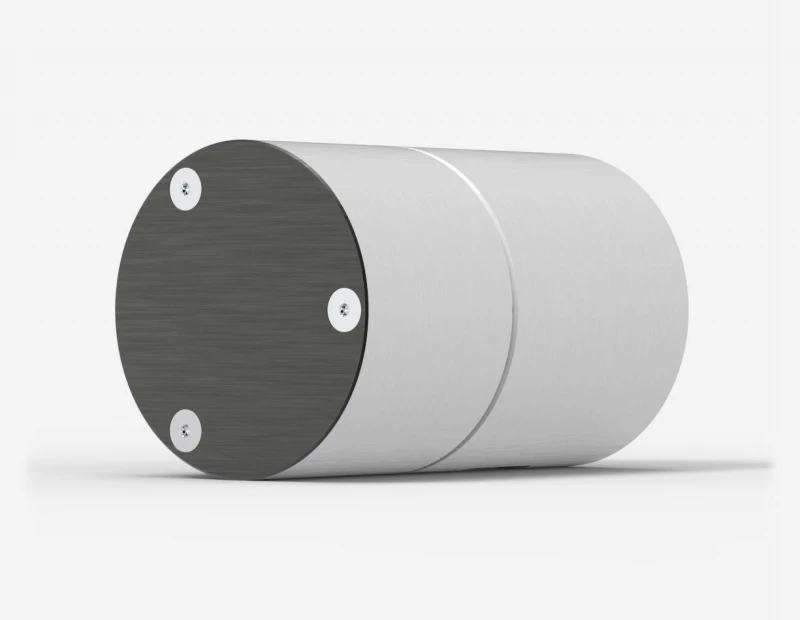

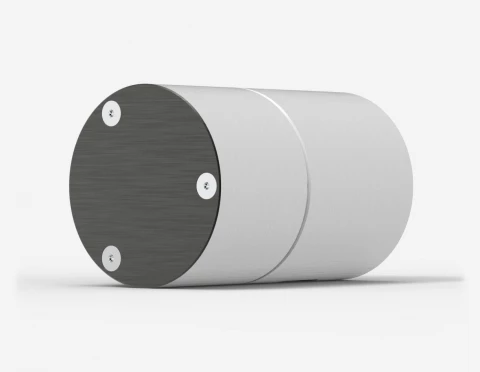

Thumbnail of M6-6-PY Integrating Sphere Detector - Laser Energy Measurement up to 2 mJ photo 1
Thumbnail of M6-6-PY Integrating Sphere Detector - Laser Energy Measurement up to 2 mJ photo 2

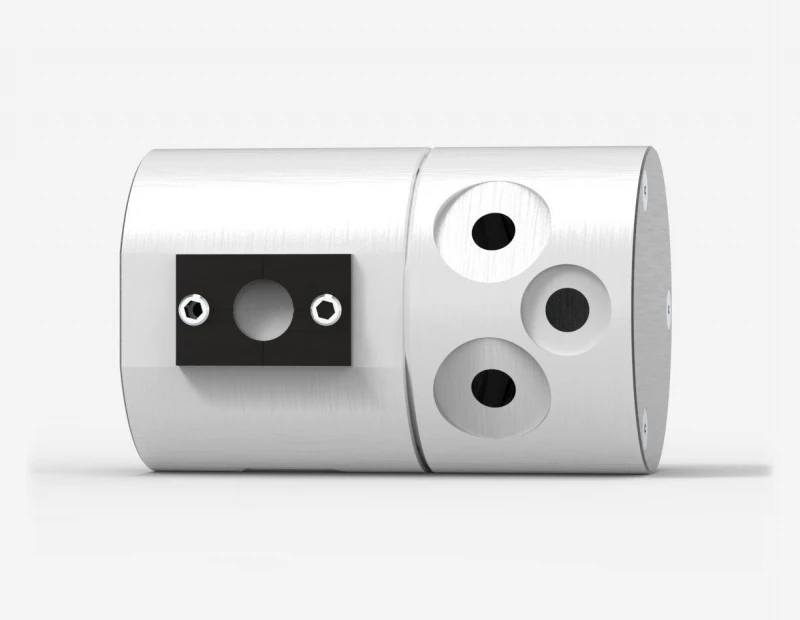

Thumbnail of M6-6-PY Integrating Sphere Detector - Laser Energy Measurement up to 2 mJ photo 3

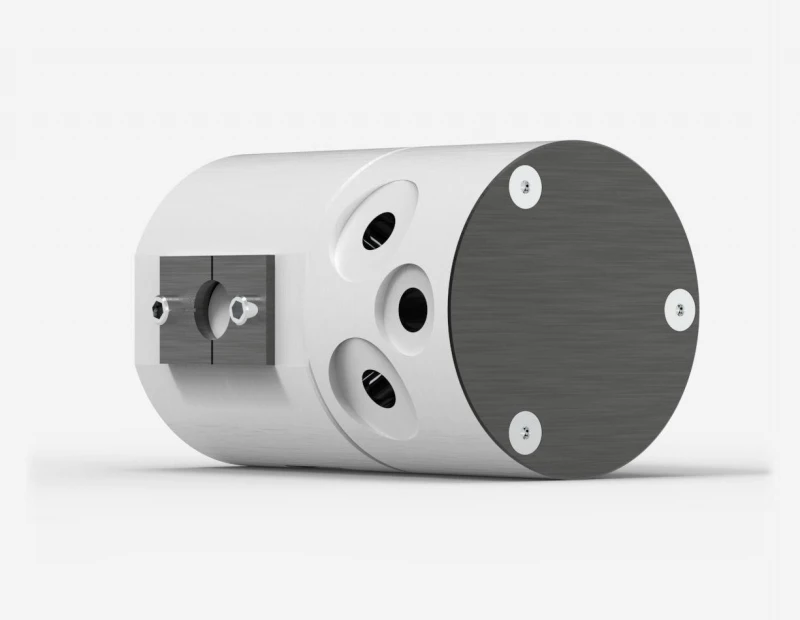

Thumbnail of M6-6-PY Integrating Sphere Detector - Laser Energy Measurement up to 2 mJ photo 4

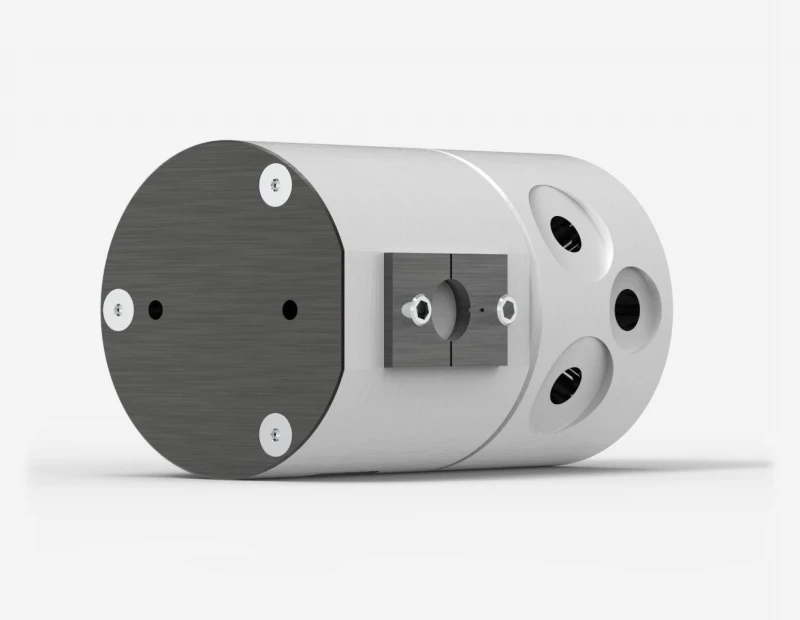

Description

The M6-6-PY Integrating Sphere Detector by Gentec-EO is designed for precision laser energy measurement up to 2 mJ. With a versatile range of heads including Silicon, InGaAs, and pyroelectric, this laser energy meter provides accurate measurements across various wavelengths. Featuring pulse-to-pulse measurement capabilities at high rep rates (up to 200 kHz), it ensures precise monitoring of every pulse without sampling.

This integrating sphere detector allows capturing and storing up to 4 million pulses, offering detailed insights into your laser's performance. Unique pulse tracking features enable identification of missing pulses and those below the threshold. The USB 2.0 connection ensures high-speed data transfer, and the user-friendly software provides diagnostic features like live mode, histogram, and FFT display for temporal diagnostics.

M6-6-PY Integrating Sphere Detector - Laser Energy Measurement up to 2 mJ

Visit the Gentec-EO Store

Specifications

Max Measurable Energy: 20 mJ
Max Repetition Rate: 200000 Hz
Effective Aperture: 6 mm
Spectral Range: 0.35 – 2.5 um
Typical Rise Time: 150 ns
Repeatability: ±1 %
Noise Equivalent Energy: 0.1 μJ
Maximum Pulse Width: 100 ns
Maximum Power: 5 W
Aperture Diameter: 6 mm
Absorber: Pyroelectric
Dimensions: 38.1 Ø x 58.4D mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Up to 200 kHz Pulse-to-Pulse: Measure every pulse at high rep rates
  • Capture and Store: Store up to 4 million pulses, 40 seconds at 100 kHz
  • Pulse Tracking: Identify missing pulses and those below the threshold
  • Versatile Heads: Choose from Silicon, InGaAs, and pyroelectric heads
  • Analog Module: Use with APM and oscilloscope for fast analog measurements
  • USB 2.0 Connection: High data rate transfer for fast operation
  • User-Friendly Software: Live mode, histogram, FFT display, and life test mode
  • Compatible Stand: Pair with compatible stands for stable operation

Applications

  • Precision Laser Energy Measurement: Accurate measurements up to 2 mJ
  • Temporal Diagnostics: Live mode, strip chart, histogram, and FFT display
  • Automated Laser Testing: Life test mode for laser performance analysis

Frequently Asked Questions

What is the maximum pulse rate that the MACH 6 Joulemeter can measure?
The MACH 6 Joulemeter can measure every pulse at up to 200 kHz.
How much data can the MACH 6 energy meter capture and store in real time?
The MACH 6 Joulemeter can capture and store up to 4 million pulses in real time.
What types of energy probes are supported by the MACH 6 laser energy meter?
The MACH 6 Joulemeter is designed to support a full complement of fast energy probes that include Silicon, InGaAs, and Pyroelectric Detectors.
What is the measurement range of the MACH 6 laser energy detector?
The MACH 6 Joulemeter can measure from pJ to mJ and from 0.35 to 2.5 μm.
What are some of the diagnostic features of the MACH 6 Joulemeter's user-friendly software?
The MACH 6 Joulemeter's user-friendly software includes Live Mode, Strip Chart, Histogram and Statistics displays, FFT display of pulse energy data for temporal diagnostics, and Life Test Mode to automate laser testing.

Got more questions? Use the inquiry form to ask the supplier directly.
