Description
The PGx01 series is a high energy broadly tunable picosecond Optical Parametric Amplifier (OPA) designed to offer ultra-broad tuning capabilities from 193 to 16,000 nm. With its high peak power (>50 MW), this OPA is ideal for various non-linear spectroscopy applications.
It boasts a narrow linewidth of <6 cm⁻¹ (for UV < 9 cm⁻¹) and provides motorized hands-free tuning in either the 193–2,300 nm or 2,300–16,000 nm range, making it a versatile tool for laser spectroscopy experiments. The PGx01 series also features PC control and remote control via a keypad.
PGx01 SERIES - Travelling Wave Optical Parametric Generators
Specifications
| Widest Tuning Range: | 193 – 16000 nm |
|---|---|
| Signal Polarization: | Vertical, Horizontal |
| Core Tuning Range: | 420 – 4500 nm |
| Peak Efficiency (S+I): | Not Specified |
| Idler Polarization: | Vertical, Horizontal |
| Output Pulse Energy: | 600-1000 μJ |
| Beam Divergence: | <2-<4 mrad |
| Pump Energy: | 8-15 mJ |
| Max Pulse Repetition Rate: | 50 Hz |
| Pulse Duration: | 30 ps |
| Power Consumption: | <100 W |
| Power Requirements: | 100-240 VAC |
| Room Temperature: | +15 to +30 ℃ |
| Size (W × L × H): | 450 × 582 × 270 mm |
Download Data Sheet
Features
- Ultra-wide spectral range: 193 to 16,000 nm
- High peak power (>50 MW) for non-linear spectroscopy applications
- Narrow linewidth <6 cm⁻¹ (for UV < 9 cm⁻¹)
- Motorized hands-free tuning in 193–2,300 nm or 2,300–16,000 nm range
- PC control for convenient operation
- Remote control via keypad for ease of use
Applications
- Nonlinear spectroscopy: vibrational-SFG, surface-SH, CARS, Z-scan
- Pump-probe experiments
- Laser-induced fluorescence (LIF)
- Other laser spectroscopy applications
Frequently Asked Questions
What is the PGx01 Series travelling wave optical parametric generator (TWOPG) used for?
It is an ultra-fast tunable coherent light source used for nonlinear spectroscopy, pump-probe experiments, laser-induced fluorescence, and other laser spectroscopy applications.

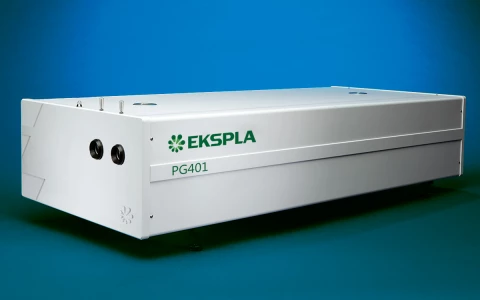

What is the tuning range of the PG401 model?
The PG401 model has a tuning range from 420 to 2300 nm and can be extended to the widest possible tuning range of 193 to 16000 nm with optional second harmonic generator (SHG), Sum frequency Generator (DUV) or Difference frequency Generator (DFG) stages.
What is the highest pulse energy in the near-IR spectral range for the PG501 model?
The PG501 model has the highest pulse energy in the near-IR spectral range and has a tuning range from 680 to 2300 nm. Optional DFG stages are available for extension of tuning range to the 2300 – 16000 nm region.
What is the target application for the PG701 model?
The PG701 model is targeted for vibrational-SfG or infrared spectroscopy applications and has a tuning range from 1395 to 4500 nm.
What are the features of the PGx01 Series travelling wave optical parametric generator?
The features include ultra-wide spectral range from 193 to 16000 nm, high peak power (>50 MW) ideal for non-linear spectroscopy applications, narrow linewidth <6 cm⁻¹, motorized hands-free tuning in 193 – 2300 nm or 420 – 10000 nm range, remote control via keypad, and PC control via USB port (RS232 is optional) and LabVIEW™ drivers.
