Description
The Nano range allows a great deal of flexibility both in scientific and industrial applications. The output of these systems is multimode, however the telescopic resonators offer high energy beams with low divergences - comparable to those from unstable Gaussian coupled resonators but with a more uniform spatial profile, and a smoother temporal profile.

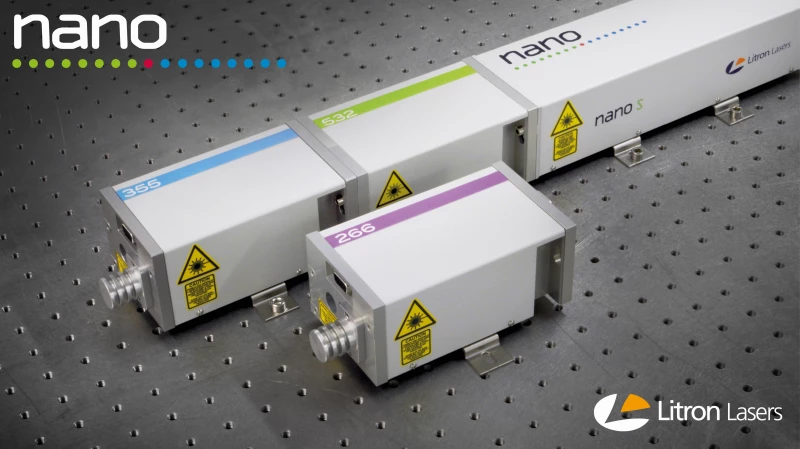

Nano S 130-10 Laser
Specifications
| Wavelength: | 532 nm |
|---|---|
| Pulse Energy: | 65 mJ |
| Pulse Energy Stability: | 2 % |
| Pulse Duration: | 6 ns |
| Repetition Rate: | Not Specified |
| Optional Wavelengths: | 1064nm, 355nm, 266nm, 213nm |
Download Data Sheet
Applications
Spectroscopy
Remote Sensing
Photochemistry
Non-Linear Optics
OPO Pumping
Ablation
ESPI
LIDAR
LIBS
LIF
Frequently Asked Questions
What is the difference between the Nano S, Nano L, and Nano T laser heads?
The Nano S, Nano L, and Nano T laser heads are all fundamentally the same construction, but differ in size and output energies. The Nano S is the smallest with energies up to 150mJ per pulse, the Nano L has a footprint of only 380mm x 96mm with output energies up to 340mJ, and the Nano T has a footprint of 520mm x 96mm with output energies up to 290mJ.
What is the Nano S 130-10 Laser used for?
The Nano S 130-10 Laser can be used for a variety of applications including spectroscopy, remote sensing, photochemistry, non-linear optics, OPO pumping, ablation, ESPIL, LIDAR, and LIBS.
Can the Nano S be configured with a true TEM00 output?
Yes, the Nano S can be configured with an intra-cavity aperture to give a true TEM00 output.
What is the maximum repetition rate for the Nano L laser head?
The Nano L laser head has a maximum repetition rate of up to 100Hz.
What is the maximum output energy for the Nano T laser head?
The Nano T laser head has a maximum output energy of up to 290mJ.
