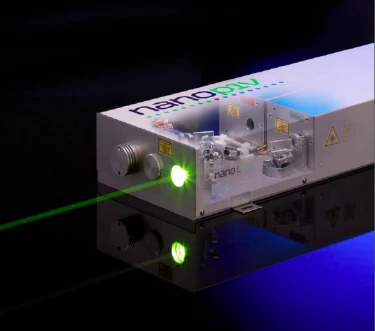

Litron Nano L 50-100 PIV
Description
Litron offers an extensive range of flashlamp pumped and diode pumped PIV laser systems with output energies of up to 1J per pulse and repetition rates of up to 200Hz for flashlamp systems and up to 20kHz for diode pumped systems. All of the systems are twin head devices, meaning that the PIV laser head contains two totally independent lasers. The range of PIV systems is based around both the ultra-compact Nano series and the larger invar stabilised LPY and LDY series. The overriding factor that sets Litron’s products apart is quality. This is evidenced not only in the design and construction of the product, but also in its performance.
Litron Nano L 50-100 PIV
Specifications |
|
|---|---|
| Wavelength: | 532 nm |
| Pulse Energy: | 50 mJ |
| Pulse Energy Stability: | 2 % |
| Pulse Duration: | 8 ns |
| Repetition Rate: | 0-100Hz |
Features
Compact dual head design
Dedicated PIV laser head
Stable resonator design
Telescopic versions for low divergence
Rugged for industrial environments
3rd and 4th harmonics available for LIF and dual colour PIV
Rep. rates to 200Hz
Energies up to 425mJ @ 532nm
Applications
Stable Resonator
Gaussian Optics
Telescopic Resonator
Optical Attenuator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Flashlamp pumped PIV laser systems use flashlamps to pump the laser, while diode pumped PIV laser systems use diodes. Diode pumped systems have higher repetition rates, up to 20kHz.
The twin head design in the Litron PIV laser systems means that the PIV laser head contains two totally independent lasers, providing redundancy and flexibility in operation.
The Litron Nano L 50-100 PIV laser system has an output energy of up to 425mJ per pulse at 532nm.
Yes, the Litron PIV laser systems are rugged and designed for use in industrial environments.
The repetition rate of the flashlamp systems in the Litron PIV laser range is up to 200Hz.
