Thumbnail of SR 25i CO₂ Laser photo 1

Description

Our SR series CO₂ laser sources, SR 08s, SR 10e, SR 10i, SR 10x, SR 15e, SR 15i, SR 15s, SR 15x, SR 25i and SR 25x, are all IP66 rated to ensure a high level of protection against water and dust ingress. This, together with the reliability that our customers have come to expect from Luxinar, guarantees a watertight laser technology.

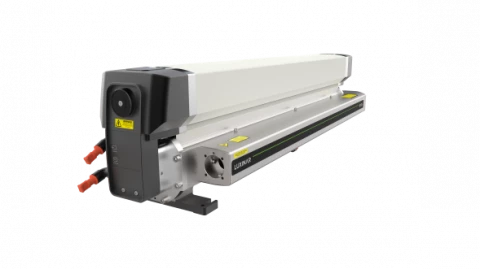

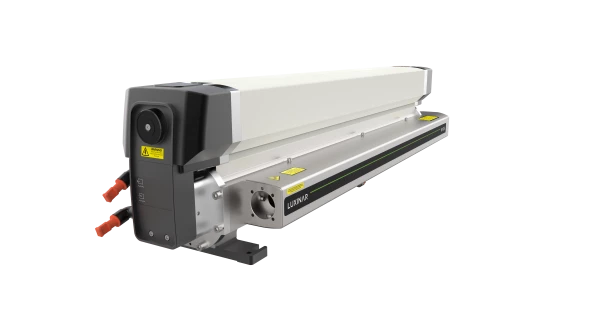

SR 25i CO₂ Laser

Visit the Luxinar Ltd Store

Specifications

Gas Medium: CO2
Wavelength: 9.3 um
Output Power: 185 W
Mode Quality (M^2): <1.2
Beam Diameter: 6.3 mm
Beam Divergence (Full Angle): 2 mrad
Polarization: Linear
Cooling: Water-to-Water

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

SR 25i – 250W sealed CO₂ laser source

With 250W output power, the SR 25i is the highest rated laser of the SR series.

  • IP66 rating
  • Wavelengths 10.6µm, 10.25µm, 9.3µm
  • Integrated and field replaceable RF power supplies
  • Compact, lightweight laser source
  • Simple diagnostics
  • Minimum shipment power 20% higher than rated power

The SR 25i has an integrated RF power supply design and is hermetically sealed, making it ideal for the harshest of industrial environments; it will withstand dust, heat and water spray. The simple control interface and compact mechanical design of the unit allow easy integration into laser-based processing machines used for cutting, marking, perforating and drilling, among others. Throughput, economy, flexibility and reliability are the main features associated with the SR series of CO₂ laser sources.

Applications

  • Cutting
  • Drilling
  • Marking
  • Engraving
  • Scribing
  • Perforating
  • Welding
  • Kiss Cutting

Frequently Asked Questions

What applications is the SR 25i CO₂ laser source suitable for?
The SR 25i CO₂ laser source is suitable for cutting, drilling, marking, engraving, scribing, perforating, welding, and kiss cutting.
What is the IP rating of the SR series CO₂ laser sources?
The SR series CO₂ laser sources, including the SR 25i, are all IP66 rated to ensure a high level of protection against water and dust ingress.
What is the minimum shipment power of the SR 25i CO₂ laser source?
The minimum shipment power of the SR 25i CO₂ laser source is 20% higher than the rated power, which is 222-300W.
What is the output power of the SR 25i CO₂ laser source?
The output power of the SR 25i CO₂ laser source is 185-250W.
What is the RF input requirement for the SR 25i CO2 laser source?
The RF input requirement for the SR 25i CO2 laser source is a DC input voltage of 50VDC ± 1%, with a maximum average DC input current of 96A.

Got more questions? Use the inquiry form to ask the supplier directly.
