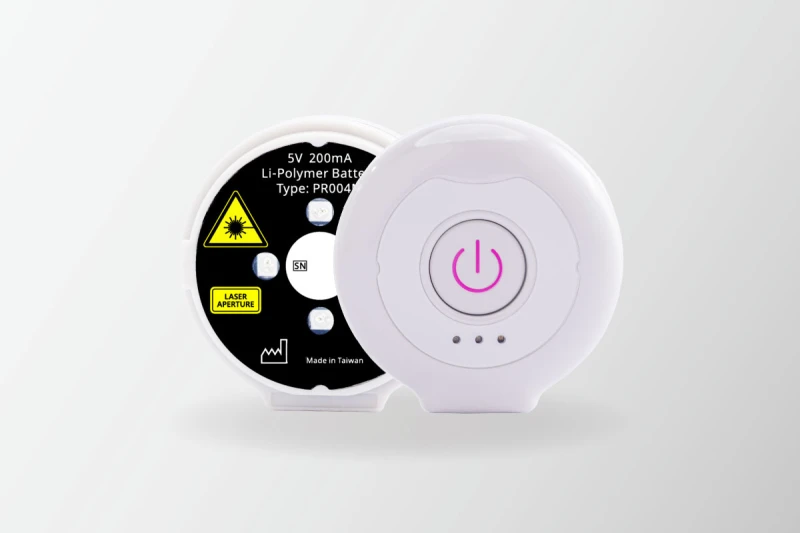

Multi-Wavelength Handheld Laser Therapy Device with Adjustable Straps

Description

The Multi-Wavelength Handheld Laser Therapy Device is a portable, easy-to-use light-based device designed for personal wellness applications. It combines multiple light wavelengths in a compact handheld format and includes adjustable straps for stable positioning during use.

Its ergonomic design supports hands-free operation when needed, making it suitable for home environments, travel use, or routine personal care sessions. The multi-wavelength output is intended to provide broader light coverage compared to single-wavelength devices.

With its lightweight structure and flexible mounting options, the device is designed for users looking for a convenient way to incorporate light-based therapy into their daily routine without complex setup or clinical equipment.

Specifications

Wavelength:	680 nm
Output Power (CW):	Not Specified
Wavelength Options:	680 ±20nm / 850 ±20nm / 940 ±20nm
Number Of Laser Diodes:	4pcs
Product Size:	Ø40/H13 ±1mm
Pulse Duration:	0.05 second
Product Weight:	16 ±1g
Pulse Repetition Rate:	10Hz
Battery Capacity:	Lithium polymer battery 400mAh
Operating Mode:	pulse wave (PW)
Laser Safety Classification:	Class 2
Laser Standard:	IEC 60825-1:2014
Operating Environment Temperature:	10~40°C
Operating Environment Humidity:	30~75%
Transportation And Storage Environment Temperature:	-20~70°C
Transportation And Storage Environment Humidity:	10~90%

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Multi-Wavelength Laser Therapy Device: Experience the benefits of three different red light wavelengths for comprehensive relief.
Compact and Easy to Use: The device is lightweight and portable, making it convenient for use at home or on the go.
Flexible Application: Comes with medical-grade gel patches and adjustable straps for versatile use on various body parts.
Pulse Mode Support: Switch between single-wavelength or tri-wavelength therapy modes to suit your needs.
Quick Relief: A 15-minute session promotes blood circulation and eases discomfort effectively.

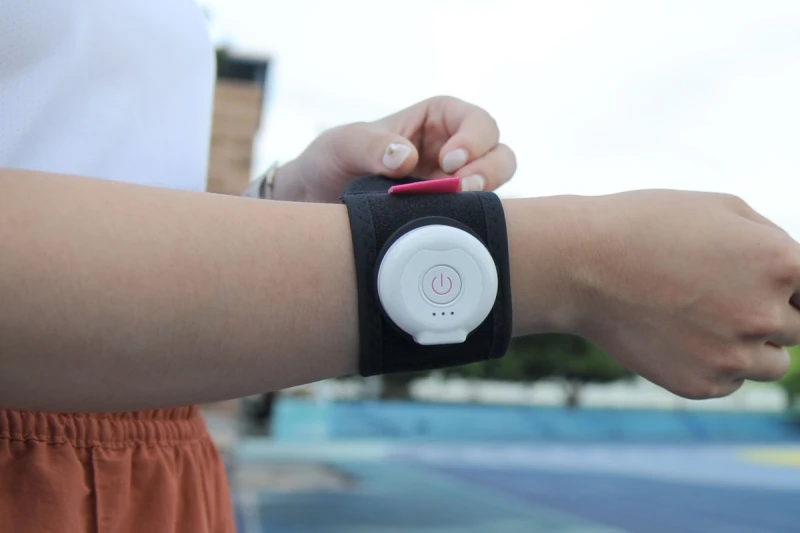

Feather-light Comfort: Enjoy soothing warmth with easy application on arms and legs using long and short straps.
Safety Precautions:
- Avoid direct light exposure to eyes.
- Do not use with a transformer or fast charging.
- Keep the laser output area clean for optimal energy transmission.
- Keep away from children and pets to prevent accidental ingestion or contact.
- Not suitable for use on pregnant women, individuals with skin disease, malignant tumors, pacemakers, or recent wounds.
- Avoid using on sensitive, fragile, or rash-covered skin.
- Do not use with electronic medical equipment.
- Store in a dry, cool place away from water.
- Remove clothing between the device and skin to maintain light intensity.

Applications

Personal Wellness Use
Designed for individuals incorporating light-based devices into their at-home wellness routines.
Muscle Comfort & Recovery Support (Non-clinical use framing)
Commonly used by consumers seeking light-based tools as part of general recovery or relaxation routines.
Everyday Mobility & Convenience
Suitable for use in home, office, or travel settings due to its compact and portable design.
Targeted Light Application
Allows focused placement of light over specific areas using adjustable straps for stable positioning.
Routine Self-Care Sessions
Used as part of regular personal care routines where consistent light exposure is desired.

Name

Work Email

Organization

Your message to supplier

Ships from:: Taiwan
Sold by:: LECC Technology Co., Ltd. ✓ Verified Supplier
On FindLight:: since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the 1x4 Laser used for?

The 1x4 Laser is a Multi-Wavelength Laser Relief Device designed to relieve soreness and discomfort throughout the body by using red light wavelengths that penetrate the dermis, subcutaneous tissue, and superficial muscles.

How does the 1x4 Laser work?

The device uses three different red light wavelengths delivered through laser diodes to gently penetrate the skin and muscles, promoting blood circulation and easing discomfort in a 15-minute session.

What are the key features of the 1x4 Laser?

The device is compact and easy to use, featuring medical-grade gel patches, adjustable straps, pulse mode, and the ability to switch between single-wavelength or tri-wavelength therapy modes.

Is the 1x4 Laser safe to use?

Yes, the 1x4 Laser is classified as a Class 2 laser under IEC 60825-1:2014 standards. However, users should avoid direct eye exposure, not use it on certain medical conditions, and follow all safety precautions.

What are the specifications of the 1x4 Laser?

The device has wavelengths of 680 ±20nm, 850 ±20nm, and 940 ±20nm, with 4 laser diodes. It weighs 16 ±1g, has a pulse duration of 0.05 seconds, and a pulse repetition rate of 10Hz.

Can the 1x4 Laser be used on any part of the body?

Yes, the device comes with gel patches and adjustable straps for flexible application on various body parts, including arms and legs.

Are there any precautions to take when using the 1x4 Laser?

Yes, avoid using it on pregnant women, individuals with skin diseases, malignant tumors, pacemakers, or open wounds. Do not use it with electronic medical equipment and ensure the area of laser output is clean.

Is this device meant for home use?

Yes, it is designed primarily for personal and home-based use, offering a portable and easy-to-operate form factor.

What does multi-wavelength mean in simple terms?

It means the device emits more than one type of light wavelength, allowing broader light coverage compared to single-wavelength devices.

Does it require special training to operate?

No special training is needed. It is designed for straightforward personal use with simple controls.

Can it be used while traveling?

Yes, its compact size and portable design make it suitable for travel or on-the-go use.

What makes this different from single-wavelength devices?

Multi-wavelength designs provide a broader light profile, which some users prefer for more general-purpose light application routines.
