How do fiber-delivery systems, articulated arms, and handpieces differ in medical laser applications?

Fiber-delivery systems use silica or specialty fibers to transmit the laser beam flexibly to the treatment site, typically for endoscopic, ENT, urology, or dermatology procedures; they are specified by core diameter, NA, wavelength range, and damage threshold. Articulated arms use a series of mirrors and joints to relay free-space CO₂ or other mid-IR beams with low loss and precise beam quality, mainly in surgical and dermatological systems. Handpieces mount at the output of fibers or arms and contain focusing optics, scanners, spot-size adjusters, or contact tips to control energy density and treatment geometry on tissue.

What role do cooling, beam shaping, and safety accessories play in medical laser operation?

Cooling accessories—such as water-cooling circuits, air-cooling modules, or cryogen spray devices—stabilize the laser head temperature and manage epidermal or tissue cooling to reduce collateral damage and improve patient comfort. Beam shaping accessories include zoom lenses, diffractive or refractive beam shapers, scanners, and spacers that define spot size, fluence, and pattern (e.g., fractional arrays). Safety accessories such as interlock connectors, key switches, emission indicators, and wavelength-specific laser safety eyewear ensure compliance with IEC/ANSI laser safety standards and mitigate operator and patient risk.

Which technical specifications are most important when selecting medical laser fibers and delivery accessories?

Key parameters include supported wavelength range, core/cladding diameters, numerical aperture, minimum bend radius, and maximum power or energy density rating (continuous or per pulse). For handpieces and optics, relevant specs are spot size range, working distance, transmission at the operating wavelength, AR coating durability under sterilization, and compatibility with the laser’s mechanical and optical interface. For articulated arms, mirror coating reflectivity at the laser wavelength, angular range, backlash, and total transmission are critical to maintain beam quality and power at the applicator.

How should I compare sterilization compatibility and biocompatibility when choosing medical laser accessories?

For reusable fibers, handpieces, and contact tips, verify the approved sterilization methods (autoclave, EtO, plasma, chemical) and the number of validated cycles without degradation of optical performance or mechanical integrity. Materials contacting tissue (e.g., sapphire tips, polymer sheaths, stainless housings) should meet relevant biocompatibility standards (such as ISO 10993) and exhibit resistance to discoloration, cracking, or delamination under repeated clinical use and cleaning agents. Single-use accessories usually specify a maximum number of pulses or procedures and are optimized for consistent performance rather than cycle durability.

What are typical lead times and what factors most strongly affect pricing for medical laser accessories?

Standard catalog accessories—such as generic fibers, common handpieces, and basic footswitches—often have lead times from stock to a few weeks, while customized optics, branded connectors, or OEM-integrated assemblies can range from 6–12 weeks depending on qualification requirements. Pricing is driven by optical complexity (custom lens trains, coatings, diffractive elements), sterilization and regulatory requirements, material selection (e.g., sapphire vs. glass tips), level of integration (fiber + handpiece + connector as a set), and order volume or long-term supply agreements.

How can I find, compare, and request quotes for medical laser accessories on FindLight without creating an account?

On FindLight, navigate to Laser Systems → Medical and Dental Lasers → Medical Laser Accessories, then use filters for wavelength, power handling, delivery type (fiber, articulated arm, handpiece), sterilization compatibility, and vendor region to narrow results. You can open multiple product detail pages in new tabs to compare specifications side by side, then use the “Request Quote” or “Contact Supplier” forms on each listing to send technical requirements and RFQs directly to vendors without registration; responses are handled via the email address you provide.

Laser Systems
Medical and Dental Lasers
Medical Laser Accessories

Medical Laser Accessories for Clinical Systems

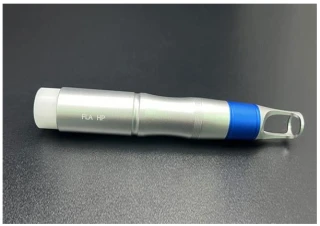

FLA Handpiece for Laser Skin Treatment with Honeycomb Mirror Technology

Request Quote

Sold by: CRYSTECH Inc. Ships from: China

Specifications
Model:	HP1064-FLA-00N
Application Wavelength:	1064nm/532nm
Efficiency:	95%
Spot Shape:	hexagon
Signal Cable:	No

Did You Know?

Did you know that many dermatology handpieces for Er:YAG and CO2 medical lasers integrate both beam-shaping optics and skin-contact cooling to keep epidermal temperatures below ~40–45 °C, even though the ablative plume can exceed several hundred degrees at the surface? Modern articulated arms and fiber couplers must maintain beam pointing stability on the order of a few milliradians to avoid overexposure of adjacent tissue, which is why high-quality medical laser accessories often rely on dielectric mirrors with damage thresholds >10 J/cm² at nanosecond pulse durations. A common misconception is that accessories are optically passive; in reality, disposable tips, spacers, and focusing handpieces substantially modify spot size, fluence (J/cm²), and effective penetration depth, and must be matched precisely to procedure parameters and laser wavelength.

Related Resources

Frequently Asked Questions

Medical laser accessories are peripheral components—such as fiber delivery sets, handpieces, articulated arms, footswitches, aiming beam modules, and cooling interfaces—that couple a base laser unit to the patient or workflow. They are designed with specific optical interfaces (fiber connectors, beam ports, lens mounts) and electrical or pneumatic connections so they can safely transmit, shape, or control the laser output according to the procedure and system standard (e.g., IEC 60601-2-22).

Overview of Medical Laser Accessories

Medical Laser Accessories on FindLight cover auxiliary components that adapt, deliver, and monitor energy from medical laser systems. These products support dermatology, ophthalmology, surgical, urology, and dental platforms by conditioning the beam, routing light to the treatment site, and integrating safety or control features.

Typical Medical Laser Accessories include articulated arms, fiber delivery cables, handpieces, scanner heads, cooling interfaces, aiming beam modules, safety shutters, and footswitches. They are matched to specific laser sources such as CO₂, diode, Nd:YAG, Er:YAG, Ho:YAG, and excimer systems and are specified for medical environments.

Key Specifications and Use Cases

When evaluating Medical Laser Accessories, engineers focus on compatibility with wavelength, power, and clinical workflow. Important parameters include:

Wavelength range: nm band matched to the primary laser line (e.g., 532 nm, 808–980 nm, 1064 nm, 2940 nm, 10.6 µm).
Power/energy rating: maximum CW power or pulse energy and repetition rate the accessory can safely handle.
Beam delivery type: articulated arm, hollow waveguide, silica fiber, or specialty fiber optimized for the laser wavelength.
Spot size and divergence: adjustable or fixed spot diameter at working distance, numerical aperture, and beam profile.
Interface and connectors: mechanical coupling to the host laser, fiber connector type, and mounting flange standards.
Sterilization and biocompatibility: reusable vs disposable tips, sterilization method, and materials in contact with patients.

Common use cases for Medical Laser Accessories include precise beam delivery for dermatological resurfacing, dental surgery, ENT procedures, tissue ablation, endoscopy, and photocoagulation. Accessories help tailor the same base laser platform to multiple specialties via interchangeable handpieces and delivery sets.

Buyer Guidance on FindLight

Procurement engineers selecting Medical Laser Accessories should first verify optical and mechanical compatibility with existing laser systems, then compare thermal ratings, ergonomics, and maintenance requirements. Review datasheets for wavelength range, power handling, and connection standards, and confirm regulatory status where relevant.

On FindLight you can compare Medical Laser Accessories by key specifications and request detailed quotations or technical documentation directly from suppliers. No registration is required to contact vendors, enabling rapid evaluation of alternatives and integration into new or existing medical laser setups.
