Description
The BBK-38 series kinematic laser beam benders provide a 90º beam displacement with a 38mm clear aperture. Independent orthogonal mirror correction with 80 pitch adjustment screws provides precise, repeatable alignment.
Optic removal and replacement can be accomplished without affecting alignment. Several mirror diameters and thicknesses can be accommodated. All cative hardware.

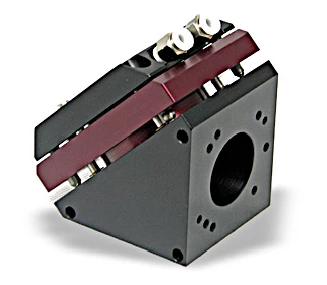

Kinematic Beam Bender
Specifications
| Type: | Beam Bender |
|---|---|
| Compatibility: | Other / Not specified |
| Build Material: | Other / Not specified |
Download Data Sheet
Features
- ±2º Independent Orthogonal Mirror Adjustment
- 80 Pitch Adjustment Screws
- Accommodates 50mm (1.968\") & 50.8mm (2.0\") Diameter Mirrors (other diameters available)
- Face & Side Mounting Holes
- Available for All Wavelengths
- Sealed Design
- Anodized Aluminum Construction
- 38mm Clear Aperture
- Water Cooling & Interlock Options
- Internally Cooled Copper Mirror Option
Frequently Asked Questions
Is it possible to remove and replace the optic without affecting alignment?
Yes, optic removal and replacement can be accomplished without affecting alignment.
What are the features of the Kinematic Beam Bender?
The features of the Kinematic Beam Bender include independent orthogonal mirror adjustment, 80 pitch adjustment screws, and accommodation for all wavelengths.
What are the options available for the Kinematic Beam Bender?
The options available for the Kinematic Beam Bender include water cooling and interlock options, internally cooled copper mirror option, and face and side mounting holes.
What is the Kinematic Beam Bender used for?
The Kinematic Beam Bender is used to provide a 90º beam displacement with a 38mm clear aperture.
What is the range of mirror diameters and thicknesses that can be accommodated by the Kinematic Beam Bender?
The Kinematic Beam Bender can accommodate several mirror diameters and thicknesses.
