Description
Motorized Z-Axis Units from this series are fabricated from high-grade anodized aluminum and stainless steel to provide high speed linear positioning of various autofocus and/or laser process head designs. A high torque DC servo motor, belt drive, and precision ball screw provide trouble free operation.
The linear stage is guided via (4) miniature recirculating ball trucks. Stage over-travel limits are sensed by non-contact proximity sensors. All precision components are enclosed within a lightweight, internally sealed enclosure.
Optional features include an encoder for use as a CNC controlled Z-Axis. Motorized Z-Axis units are available in 25mm (1.0\"), 38mm (1.5\") and 50mm (2.0\") clear apertures, with linear strokes of 25mm (1.0\"), 50mm (2.0\") and 100mm (4.0\").

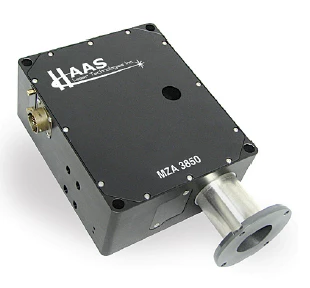

Motorized Z-Axis Unit MZA-3850
Specifications
| Adjustment Range: | Not Specified |
|---|---|
| Adjustment Accuracy: | Not Specified |
| Clear Aperture: | 25 mm |
| Acceleration Stability: | Not Specified |
| Type: | Other / Not specified |
| Build Material: | Anodized Aluminum |
| Features: | Sealed Design |
| Compatibility: | Laser Marker, Laser Engraver |
Download Data Sheet
Frequently Asked Questions
What are the available clear aperture options for the Motorized Z-Axis Unit MZA-3850?
The Motorized Z-Axis Unit MZA-3850 is available in 25mm (1.0"), 38mm (1.5") and 50mm (2.0") clear apertures.
What are the linear stroke options for the Motorized Z-Axis Unit MZA-3850?
The Motorized Z-Axis Unit MZA-3850 is available in linear strokes of 25mm (1.0"), 50mm (2.0") and 100mm (4.0").
What is the Motorized Z-Axis Unit MZA-3850 made of?
The Motorized Z-Axis Unit MZA-3850 is fabricated from high-grade anodized aluminum and stainless steel.
What kind of motor does the Motorized Z-Axis Unit MZA-3850 have?
The Motorized Z-Axis Unit MZA-3850 has a high torque DC servo motor.
What optional feature is available for the Motorized Z-Axis Unit MZA-3850?
An encoder is available for use as a CNC controlled Z-Axis.
