Fume Extractors

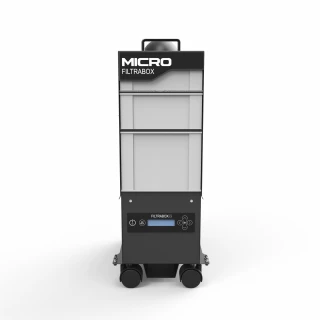

Micro Fume Extractor

Micro Fume Extractor

Portable Laser Fume Extractor w/ 1-micro blower and 3 stage HEPA filtration for excellent performance on hobby lasers or small industrial laser systems. Extracts, filters and recirculates clean air into the ...

Sold by: PAT Technology Systems Inc. Ships from: Canada
Specifications
Air Flow: 399.27 m^3/h
Inluded Filters: Pre-Filter, HEPA Filter, Chemical Filter
Compatible Laser Machines: Laser Cutting, Laser Marking, Laser Engraving, Laser Welding, Laser Cleaning, Laser Soldering, Laser Micromachining, Laser Dicing, Laser Drilling, Plasma Cutting, Laser Lift-Off
Power Consumption: Not Specified
Electrical Requirements: 120V - 60Hz, 230V - 50Hz, 230V - 60Hz

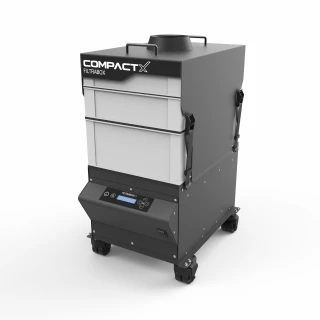

COMPACT X Laser Fume Extractor

COMPACT X Laser Fume Extractor

Portable Laser Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration for excellent performance in a space-saving format. Great for small to mid-sized industrial laser systems. Extracts, filters and ...

Sold by: PAT Technology Systems Inc. Ships from: Canada
Specifications
Air Flow: 399.27 m^3/h
Inluded Filters: Pre-Filter, HEPA Filter, Chemical Filter
Compatible Laser Machines: Laser Cutting, Laser Marking, Laser Engraving, Laser Welding, Laser Cleaning, Laser Soldering, Laser Micromachining, Laser Dicing, Laser Drilling, Plasma Cutting, Laser Lift-Off
Power Consumption: 1400 W
Electrical Requirements: 120V - 60Hz, 230V - 50Hz, 230V - 60Hz

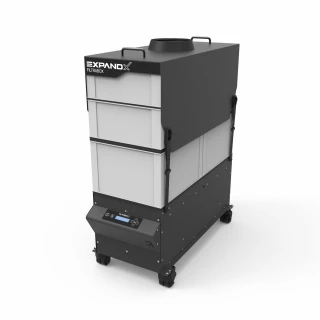

ExpandX-1 Portable Laser Fume Extractor

ExpandX-1 Portable Laser Fume Extractor

Portable Laser Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration for maximum capacity on small to mid-sized industrial laser systems. Extracts, filters and recirculates clean air into the ...

Sold by: PAT Technology Systems Inc. Ships from: Canada
Specifications
Air Flow: 399.27 m^3/h
Inluded Filters: Pre-Filter, HEPA Filter, Chemical Filter
Compatible Laser Machines: Laser Cutting, Laser Marking, Laser Engraving, Laser Welding, Laser Cleaning, Laser Soldering, Laser Micromachining, Laser Dicing, Laser Drilling, Plasma Cutting, Laser Lift-Off
Power Consumption: 1400 W
Electrical Requirements: 120V - 60Hz, 230V - 50Hz, 230V - 60Hz

Did You Know?

Laser fume extractors are an important component in any laser cutting or engraving facility. They play a critical role in maintaining a safe and healthy working environment. These systems are designed to capture, isolate and remove fumes, smoke, and particulate matter generated during laser processing, which can be harmful to both the operator and the laser equipment itself. The laser fume extractors work by drawing in contaminated air and passing it through a series of filters to remove pollutants. The most common filters used in laser fume extractors are high-efficiency particulate air (HEPA) filters and carbon filters. HEPA filters are designed to capture particles as small as 0.3 microns, making them highly effective at removing fumes, smoke, and particulate matter generated during laser processing. Carbon filters, on the other hand, are used to absorb gaseous pollutants such as odors and toxic fumes, providing an additional layer of protection. After passing through these filters, the purified air is recirculated back into the workspace, ensuring that the air quality remains safe for operators and the laser equipment remains free from contamination. Laser fume extractors are available in a range of sizes and configurations, making them suitable for a wide range of applications, from small desktop laser engravers to large-scale industrial laser cutting facilities. Some extractors are designed for use with specific laser systems, while others are more versatile and can be used with a range of laser technologies. In addition, many laser fume extractors feature adjustable air flow settings, allowing the operator to fine-tune the system to suit their specific needs.

Frequently Asked Questions

While many laser fume extractors offer wide compatibility with various laser machines, it is important to choose an extractor that is compatible with your specific laser equipment and is suitable for your specific laser material processing application.

Brief Introduction to Laser Fume Extractors

Laser fume extractors are essential for maintaining a safe and clean working environment in laser processing operations. These systems effectively capture and filter harmful fumes, smoke, and particulates generated during laser engraving, cutting, and marking processes. By removing airborne contaminants, fume extractors protect both operators and equipment, ensuring compliance with health and safety regulations.

The primary function of a laser fume extractor is to remove hazardous emissions produced when laser energy vaporizes materials. These emissions can include volatile organic compounds (VOCs), fine particulate matter, and other toxic substances. A high-quality fume extractor utilizes a multi-stage filtration system, typically comprising a pre-filter, HEPA filter, and activated carbon filter, to effectively capture and neutralize these pollutants.

Pre-filters are designed to capture larger particles, extending the life of subsequent filters. HEPA filters are highly efficient at trapping fine particles, including those as small as 0.3 microns, ensuring a significant reduction in airborne particulates. Activated carbon filters are particularly effective at adsorbing VOCs and odors, providing a cleaner and more pleasant working environment.

When selecting a laser fume extractor, several factors should be considered. The airflow capacity, measured in cubic feet per minute (CFM), indicates the volume of air the system can process and should be matched to the size and type of laser equipment used. Noise levels are also important, especially in shared or sensitive environments; quieter models help maintain a comfortable workspace. Portability can be an advantage for smaller setups or mobile operations, allowing for flexible positioning of the extractor.

Regular maintenance is crucial to ensure the continued effectiveness of a fume extraction system. This includes timely replacement of filters, cleaning of intake and exhaust areas, and periodic checks of the system's performance. Proper maintenance not only extends the life of the extractor but also ensures optimal air quality and safety standards are consistently met.

In summary, laser fume extractors are vital components in laser processing environments, safeguarding health, enhancing equipment longevity, and ensuring compliance with safety regulations. By selecting the appropriate system and maintaining it properly, operators can create a safer and more efficient workspace.
