Description
Portable Laser Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration for maximum capacity on small to mid-sized industrial laser systems. Extracts, filters and recirculates clean air into the workspace.
Expansion Capable: An upgrade blower module can be added at any time for 2x more airflow; effectively converting the ExpandX-1 to an ExpandX2 for more demanding applications or 2 laser set-ups!

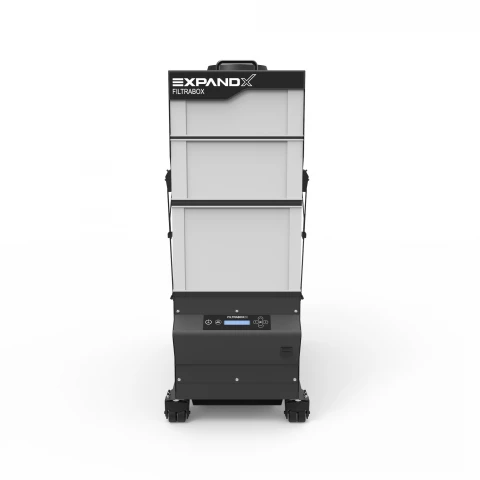

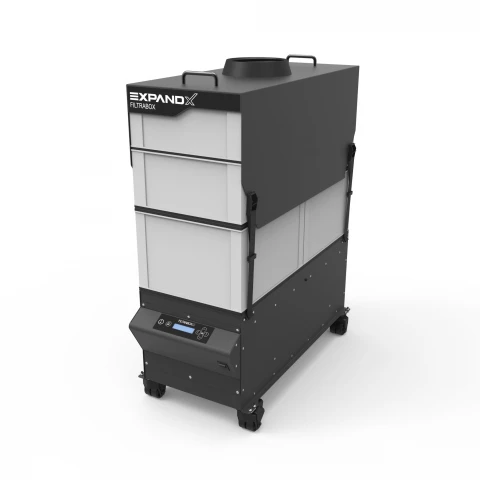

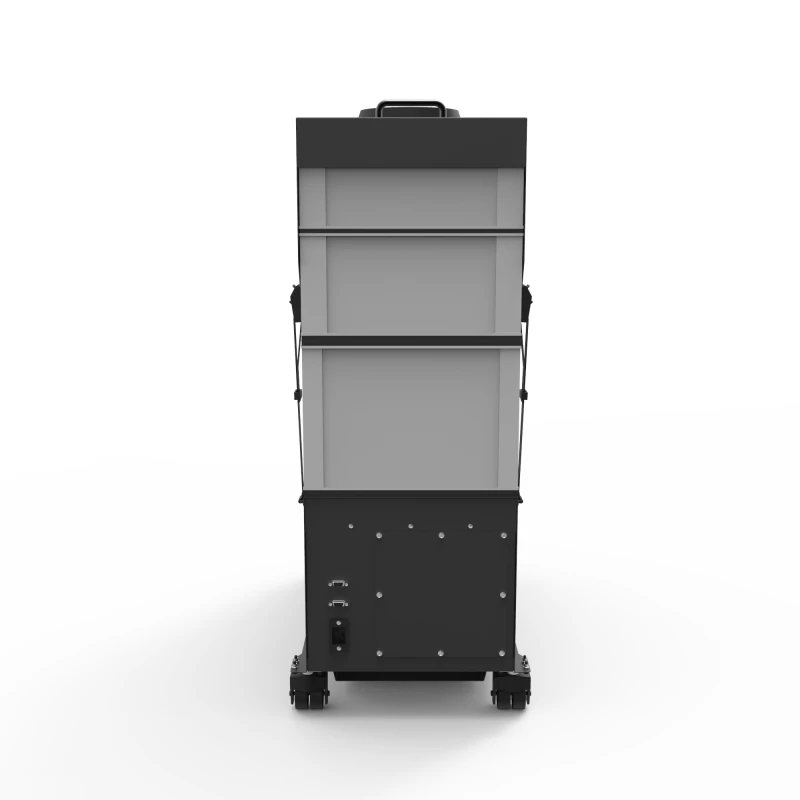

ExpandX-1 Portable Laser Fume Extractor
Specifications
| Air Flow: | 399.27 m^3/h |
|---|---|
| Inluded Filters: | Pre-Filter, HEPA Filter, Chemical Filter |
| Compatible Laser Machines: | Laser Cutting, Laser Marking, Laser Engraving, Laser Welding, Laser Cleaning, Laser Soldering, Laser Micromachining, Laser Dicing, Laser Drilling, Plasma Cutting, Laser Lift-Off |
| Power Consumption: | 1400 W |
| Electrical Requirements: | 120V - 60Hz, 230V - 50Hz, 230V - 60Hz |
| Noise Level: | 50 dB |
| Dimensions (HxWxD): | 965 mm |
| Weight: | 36.2 kg |
| Certification: | Not Specified |
| Rated Amps: | 6A (230V) / 12A (120V) |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- More Capacity and Efficiency with True 3-Stage Filtration: Separated Filters
- Easier to Use: Intelligent Flow Regulator
- Space Saving: Slim-line Design
- Robust, Simple User Interface.
- Fast and Friendly Tech Support: Modularity for Serviceability
- Extreme Air Power: Digital Blower w/ Hyper bearings
Applications
This laser fume extractor is an excellent choice where maneuverability is important
Frequently Asked Questions
What is the ExpandX-1 Portable Laser Fume Extractor used for?
The ExpandX-1 Portable Laser Fume Extractor is used to extract, filter, and recirculate clean air into the workspace for small to mid-sized industrial laser systems.
Can the ExpandX-1 be upgraded for more demanding applications?
Yes, the ExpandX-1 can be upgraded by adding an upgrade blower module at any time, effectively converting it to an ExpandX2 for more demanding applications or 2 laser set-ups.
What are the features of the ExpandX-1 Portable Laser Fume Extractor?
The ExpandX-1 Portable Laser Fume Extractor features more capacity and efficiency with true 3-stage filtration, separated filters for easier use, an intelligent flow regulator for space saving, a slim-line design, a robust and simple user interface, and fast and friendly tech support.
How can I contact Filtrabox for more information about the ExpandX-1?
You can call Filtrabox at +1 514-840-9696 (ext. 101) or +1 877-582-7929 (International) for more information about the ExpandX-1.
What is included in the ExpandX-1 Portable Laser Fume Extractor?
The ExpandX-1 Portable Laser Fume Extractor includes 1 pre-filter + 1 spare, 1 HEPA filter, 1 chemical cartridge set (pair), and a warranty.
Got more questions? Use the inquiry form to ask the supplier directly.
