Description
Polarization-Maintaining Fibers are a specialized type of singlemode fiber designed to maintain the polarization of light as it travels through the fiber. These fibers incorporate stress elements within the cladding, which apply mechanical stress to the fiber core, inducing birefringence. This unique design ensures that the polarization of the transmitted light remains consistent, making them essential for applications requiring high precision and stability.

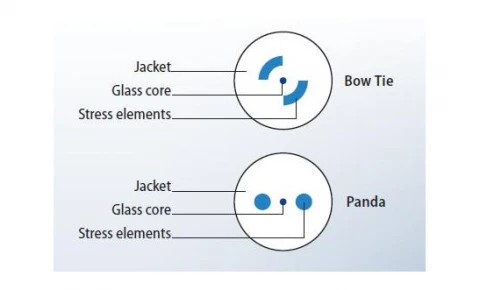

The stress elements embedded in the cladding of these fibers can be crafted in various designs, such as the Panda and Bow Tie configurations. These designs are integral to the fiber's ability to maintain polarization, as they directly influence the mechanical stresses applied to the core. The fibers are primarily utilized in optical networks, pump lasers, and microscopic applications, where maintaining the polarization state is crucial for performance.
Polarization-maintaining fibers are available in a range of specifications to suit different wavelength requirements. They are designed to operate efficiently across various wavelength ranges, from visible to infrared (VIS-IR), providing flexibility for diverse applications. The fibers feature a consistent jacket diameter, typically around 125 µm, and are coated with acrylate for durability and protection. Additionally, custom jacketings and assemblies can be requested to meet specific application needs.
With a focus on precision and reliability, these fibers offer low attenuation rates and consistent performance across their specified wavelength ranges. They are available in multiple configurations, each tailored to specific wavelength and mode field diameter requirements. This adaptability ensures that users can find the perfect fiber solution to maintain polarization in their optical systems, enhancing the overall efficiency and accuracy of their applications.
FiberTech Polarization-Maintaining Fiber - 84821001G
Specifications |
|
|---|---|
| Mode Field Diameter: | 3.3 um |
| Wavelength Range: | 460 – 630 nm |
| Numerical Aperture: | 0.12 |
| Fiber Type: | Panda |
Features
- Polarization-Maintaining Fibers: Designed to maintain the polarization of light, ideal for networks with optical fibers, pump lasers, and microscopic applications.
- Stress Elements: Embedded in the cladding to exert mechanical stresses on the fiber core, leading to birefringence.
- Fiber Types: Available in Panda and Bow Tie designs to suit various applications.
- Mode Field Diameter: Ranges from 3.2 μm to 6.6 μm across different wavelengths, ensuring compatibility with various applications.
- Jacket Diameter: Uniform 125 μm across most fibers, with some options at 400 μm for specific needs.
- Transmission Properties: Wavelength ranges from 400 nm to 1390 nm, accommodating a wide spectrum of light.
- Cut-Off Wavelength: Varies from 365 nm to 1150 nm, ensuring precise performance control.
- Attenuation: Low attenuation rates as low as 2 dB/km, enhancing signal quality over long distances.
- Numerical Aperture: Ranges from 0.10 to 0.16, providing flexibility in light acceptance angles.
- Coating: Acrylate coating with diameters of 165 μm, 245 μm, and 400 μm for durability and protection.
- Order Numbers: Unique identifiers for each fiber type, ensuring easy ordering and inventory management.
- Jacketings and Assemblies: Custom options available upon request to meet specific application requirements.
Applications
- Optical Networks: Polarization-maintaining fibers are essential in networks with optical fibers to ensure the polarization of light is preserved, enhancing signal quality and reducing noise.
- Pump Lasers: These fibers are used in pump lasers to maintain beam quality and polarization, which is critical for efficient laser operation.
- Microscopic Applications: In microscopy, polarization-maintaining fibers help in maintaining the polarization state of light, which is vital for certain imaging techniques and improving the contrast and resolution of microscopic images.
- Polarization-Sensitive Systems: These fibers are used in systems where polarization sensitivity is crucial, such as in fiber optic gyroscopes and sensors.
- Telecommunications: Used in telecommunications to preserve polarization, which is crucial for maintaining the integrity and speed of data transmission over long distances.
- Scientific Research: Polarization-maintaining fibers are used in research settings where precise control over light polarization is needed, such as in quantum optics experiments.
- Medical Equipment: Utilized in medical equipment that requires precise light delivery and polarization maintenance for accurate diagnostics and treatment.
Frequently Asked Questions
Stress elements embedded in the cladding exert mechanical stresses on the fiber core, which leads to birefringence in the fiber core.
Polarization-maintaining fibers are special single-mode fibers that maintain the polarization of the light in the fiber.
The attenuation of the polarization-maintaining fibers ranges from 3 to 100 dB/km depending on the wavelength.
These fibers are used in networks with optical fibers, for pump lasers and for microscopic applications.
The numerical aperture of the polarization-maintaining fibers ranges from 0.1 to 0.16.
