Description
The OZ Optics Optical Fiber Length Meter (OFLM-1000) delivers fast, accurate and reliable measurements of optical fiber lengths. This powerful tool saves time and money while preventing measurement errors and improving quality control. With resolution better than 2 mm and repeatability of less than 3 mm, the OFLM 1000 delivers highly accurate optical path length measurements for distances up to 500 m. The system reports and records its measurements to any Windows based personal computer, allowing easy data logging and report writing.

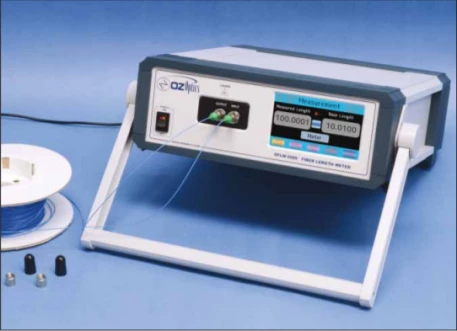

Fiber Length Meter
Specifications
| Resolution: | 2 mm |
|---|---|
| Repeatability: | 3 mm |
| Minimum Distance: | 1 cm |
| Maximum Distance: | 150 m |
| Accuracy: | ±(0.1% L + 1.5 mm) |
| Optical Connector: | Super FC/PC standard, Other connectors available on request. |
| Measurement Range: | Few mm up to 500 m |
| Power Requirements: | 120 V or 240 V AC, 50/60Hz |
| Operating Current: | 1 Amp |
| Computer Interface: | USB |
| Operating Temperature: | 0 to 40 °C |
| Storage Temperature: | -20 to 60 °C |
Download Data Sheet
Features
- Measures lengths from a few mm up to 500 m
- Better than 2 mm resolution
- Less than 0.1% measurement error
- No dead zone. Can measure fibers less than 1 cm long
- Absolute and relative measurements
- Works with singlemode, multimode, polarization maintaining, and specialty fibers
- Continuous (1 Hz) measurements of optica fiber lengths
- Saves time spent manually measuring fiber lengths
- Improves quality control
- Portable benchtop units
Applications
- Optical fiber cable assembly
- Production testing
- Optical network field installations
- Quality control and acceptance testing
- Fiber optic sensor assembly and testing
- Low-cost dynamic strain sensor
- Construction of fiber interferometers
- Fiber laser manufacturing
- Cable management
Frequently Asked Questions
What is the OFLM-1000 used for?
The OFLM-1000 is used for measuring optical fiber lengths with high accuracy and reliability.
What is the measurement range of the OFLM-1000?
The OFLM-1000 can measure lengths from a few mm up to 500 m.
What is the resolution of the OFLM-1000?
The OFLM-1000 has a resolution better than 2 mm.
Can the OFLM-1000 measure fibers less than 1 cm long?
Yes, the OFLM-1000 can measure fibers less than 1 cm long.
What type of fibers can the OFLM-1000 work with?
The OFLM-1000 works with singlemode, multimode, polarization maintaining, and specialty fibers.
