Description
The OZ Optics BM-200-3A Backreflection Meter is a fiber optic measurement device designed to measure the total accumulated optical return loss reflected back through a device or fiber under test.
It is equipped with built-in laser diodes for return loss measurement at specific wavelengths and optional insertion loss measurement capability.
The meter features a rugged and compact design with a built-in USB communications port for remote operation.

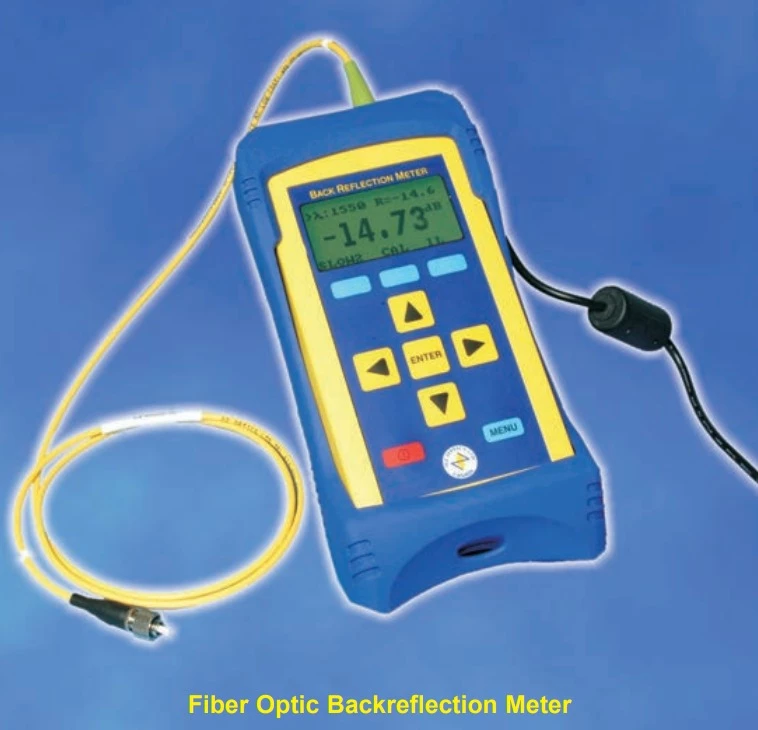

Backreflection Meter
Specifications
| Fiber Core Diameter: | 9 um |
|---|---|
| Fiber Cladding Diameter: | 125 um |
| Wavelenght: | 1550 nm |
| Fiber Type: | Single Mode |
| Laser Type: | Fabry-Perot laser |
| Output Power: | ≥ -3 dBm |
| Connector Type: | 8° angled NTT-FC/APC receptacle |
| Fiber Type: | 9/125 micron core/cladding, singlemode fiber (Corning SMF-28) |
| Reflectance Dynamic: | -1 -70 dB |
| Long-Term Stability: | ±0.05 dB |
| Short-Term Stability: | ±0.025 dB |
| Input Voltage: | Universal 110/220 VAC to VDC adaptor |
| Dimensions: | 190 x 90 x 60 mm |
| Weight: | 500 g |
| Relative Humidity: | < 85%, RH non-condensing |
| Operating Temperature: | -10 to +55 °C |
| Storage Temperature: | -30 to +70 °C |
Download Data Sheet
Features
- Sensitivity to -70 dB for precise measurement
- Built-in USB communications port for remote operation
- Wide range of available wavelengths for versatile testing
- Built-in source for accurate return loss measurement
- Dual wavelength source available for enhanced flexibility
- Rugged and compact design for durability
- High resolution for detailed measurements
- Optional insertion loss measurement capability for comprehensive testing
Applications
- Backreflection measurement of components
- Insertion loss measurement
- End-to-end loss measurement
- Quality control
- New product development
- Component or system troubleshooting
- Network installation
Frequently Asked Questions
What are some applications for the OZ Optics BM-200-3A Backreflection Meter?
The OZ Optics BM-200-3A Backreflection Meter can be used for backreflection measurement of components, insertion loss measurement, end-to-end loss measurement, quality control, new product development, component or system troubleshooting, and network installation.
What is the OZ Optics BM-200-3A Backreflection Meter used for?
The OZ Optics BM-200-3A Backreflection Meter is a fiber optic measurement device designed to measure the total accumulated optical return loss reflected back through a device or fiber under test.
Does the OZ Optics BM-200-3A Backreflection Meter have a built-in USB communications port?
Yes, the OZ Optics BM-200-3A Backreflection Meter is equipped with a built-in USB communications port for remote operation.
What are the available wavelengths for testing with the OZ Optics BM-200-3A Backreflection Meter?
The OZ Optics BM-200-3A Backreflection Meter has a wide range of available wavelengths for versatile testing.
What is the sensitivity of the OZ Optics BM-200-3A Backreflection Meter?
The OZ Optics BM-200-3A Backreflection Meter has a sensitivity to -70 dB for precise measurement.
