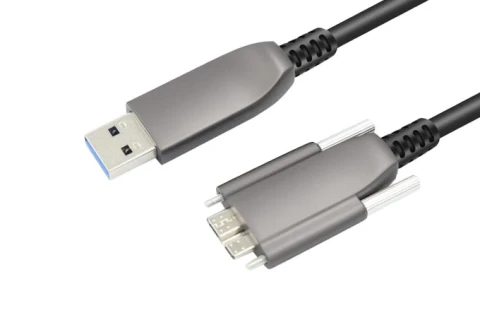

USB3.0 Active Optical Cable AM to Micro-B for Basler, Dalsa, JAI Machine Vision Cameras
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Shenzhen Fiberlink Tech Co., Ltd -
On FindLight:
since 2024
Description
The AOCFiberlink FUAB-3001 USB3 Active Optical Cable is also called USB 3.1 AOC, Fiber Optic USB Cable, Optical USB Cable, USB Active Optical Cable,Hybrid USB AOC,USB 3.1 Active Optical Cable. It is specifically designed to address the increasing demand for high-bandwidth connections, up to 5Gbps. These cables provide plug-and-play links that surpass the limitations of traditional copper cables, enabling extended distances for data transmission.
USB3.0 Active Optical Cable AM to Micro-B for Basler, Dalsa, JAI Machine Vision Cameras
Specifications |
|
|---|---|
| Type: | Micro USB |
| Version: | USB 3.0 |
| Length: | 100 m |
| Transfer Speed: | |
| Connector Material: | Silver-plated |
| Certifications: | CE |
| Compatability: | USB3.0 |
| Data Rate: | 5 Gbps |

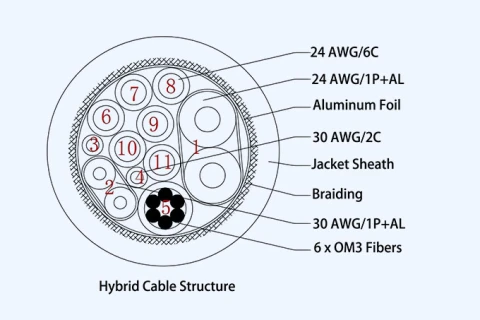

| Cable: | Hybrid Fiber+Copper |
| Maximum Length: | 100 meters |
Features
- High Bandwidth: complied with the latest USB 3 standards, up to 5Gbps super speed
- Long length Transmission: Delivers lossles signals over 100meter maximum length
- Power Supply: Support 5V 900mA max to the remote device
- Easy Installation: Plug and play for both sides, unidirectional design
- Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated connectors
- EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
- Customizable: Up to 100m maximum length, custom length, logo, and packaging available
Applications
- Machine Vision Camera Link
- Industrial Control
- Medical Device Connectivity
- KVM Extension
- Remote Desktop USB 3.0 Connections
Frequently Asked Questions
Though no USB standard currently exists for optical cables, USB 3. Active Fiber Optical Cables by AOCFIBERLINK have been successfully tested with more than a hundred devices spanning all major consumer operating systems. In general, you can expect USB 3. Active Fiber Optical Cables by AOCFIBERLINK to work with most self-powered USB 3.0/2.0 compliant device.
USB 3. Active Fiber Optical Extension Cables by AOCFIBERLINK are designed to be used with self-powered peripherals only. No significant power is available after powering its internal opto-electronics. A self-powered USB 3.0/2.0 hub can always be used at the peripheral (B-side) to provide power if desired.
