Description

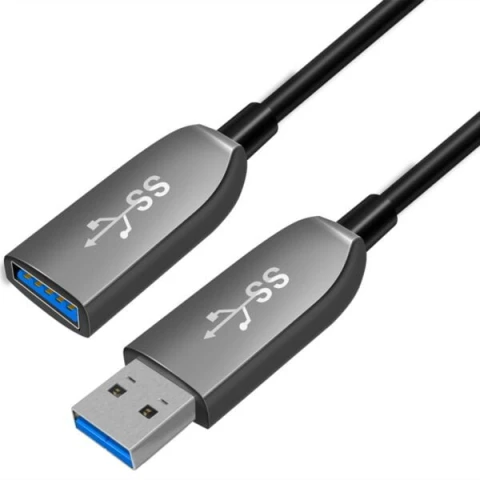

The FUBC-30AA-XX series 5Gbps Active Fiber Optical USB 3.0 Extension Cable (Type A Male to Type A Female) is also known as USB 3.0 AOC, Fiber Optic USB Cable, Optical USB Cable, USB Active Optical Cable, Hybrid USB AOC, and USB 3.0 Active Optical Cable. Designed to address the increasing demand for high-bandwidth connections, these cables support up to 5Gbps data transfer rates. They provide plug-and-play functionality and surpass the limitations of traditional copper cables, enabling extended-distance data transmission.
5Gbps USB 3.0 Active Fiber Optical Extension Cable - Type A Male to Female, 100m, 4K Ready
Shenzhen Fiberlink Tech Co., Ltd
Specifications
Type: | USB-A to USB-A |
---|---|
Version: | USB 3.0 |
Length: | 100 m |
Transfer Speed: | Not Specified |
Connector Material: | Gold-plated |
Certifications: | Other/Unspecified |
Features
- High Bandwidth: Complies with the latest USB 3.0 standards, offering up to 5Gbps super speed.

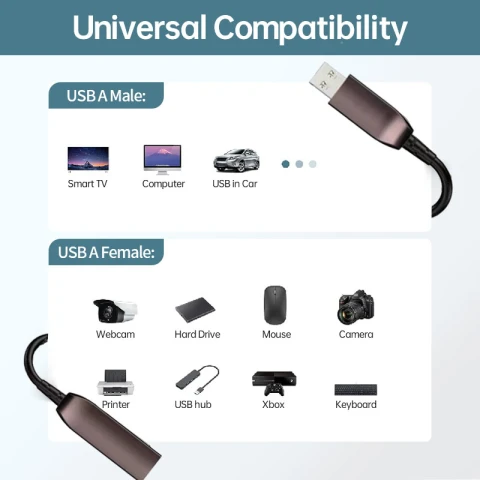

- Backward Compatible: Supports USB 3.0/2.0 devices with data transfer up to 100 meters (328ft).
- Long-Length Transmission: Ensures lossless signal transmission over a maximum length of 100 meters.
- High Resolution: Supports DisplayPort Alternate Mode for up to 4K resolution.
- Power Supply: Provides 5V/900mA max to the remote device.
- Easy Installation: Plug-and-play functionality with a unidirectional design.

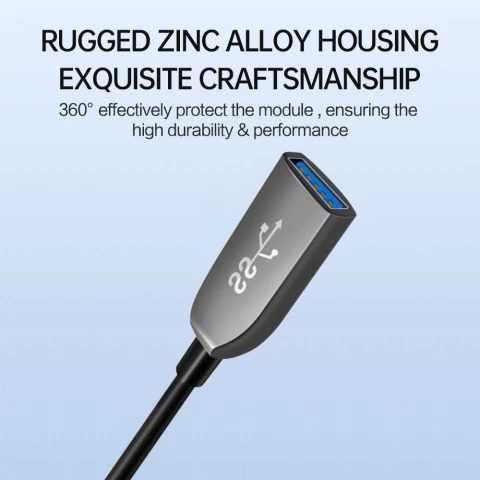

- Durable Construction: Zinc-alloy housing with corrosion-resistant gold-plated connectors.
- EMI Resistance: High resistance to electromagnetic interference, ensuring a safe and radiation-free environment.
- Customizable: Available in custom lengths, logos, and packaging, up to a maximum of 100 meters.
Applications
- Machine Vision Camera Link
- Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control, and monitor connection
- Medical Imaging Equipment
- LED Signboards and Monitors
- Radio and TV Broadcast Stations
- Airplane On-board Video Systems
- Conference Rooms
- Digital Signage
- Video Conference Equipment
- Security Monitoring Systems
Frequently Asked Questions
Are USB 3.0 Active Fiber Optical Cables by AOCFIBERLINK compatible with all USB devices?
Though no USB standard exists for optical cables, these cables have been tested with over a hundred devices across major consumer operating systems and generally work well with self-powered USB 3.0/2.0 devices.
Can I charge my portable device (like iPhone or iPad) with these cables?
These cables are designed for use with self-powered peripherals only. They do not provide significant power after powering their internal opto-electronics. A self-powered USB hub can be used to provide power if needed.
