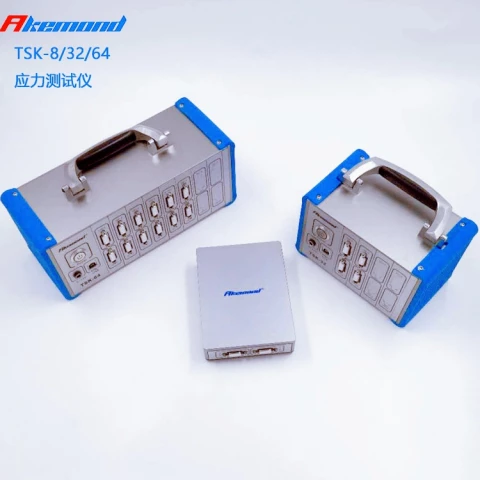

Veshay Akemond TSK Series PCB Strain Measurement System
Description
The Veshay Akemond TSK Series PCB Strain Measurement System is a high-precision diagnostic tool engineered to monitor mechanical stress on printed circuit boards (PCBs) during manufacturing, testing, and operation. Designed to prevent common structural failures like pad lifting, solder joint cracking, and trace damage, this system is vital for ensuring long-term reliability and compliance with IPC-JEDEC 9704 standards.
Capable of supporting multiple input channels and strain gauge configurations (120Ω and 350Ω), the TSK Series offers scalable solutions from 8 to 32 channels. It features a 24-bit analog-to-digital converter and a 1/4 bridge Wheatstone circuit to deliver accurate, high-resolution measurements. The system supports high-frequency sampling up to 10 kHz per channel, enabling precise tracking of dynamic strain behavior.
The integrated software suite enhances usability with real-time data visualization, advanced analytical tools such as principal strain and strain rate analysis, and automated report generation. Compact, lightweight, and USB-compatible, the TSK Series is optimized for ease of use and field portability. With a wide operating temperature range of -40°C to 70°C, it’s an ideal fit for demanding testing environments.
Veshay Akemond TSK Series PCB Strain Measurement System
Specifications |
|
|---|---|
| Measurement Range: | -55500 – 55500 uE |
| Accuracy: | -0.3 – 0.3 % |
| Stability: | 6 ppm/degC |
| Sampling Frequency: | 10 KHz (per channel) |
| Operational Temperature Range: | -40 – 70 degC |
| Brand Name: | Akemond |

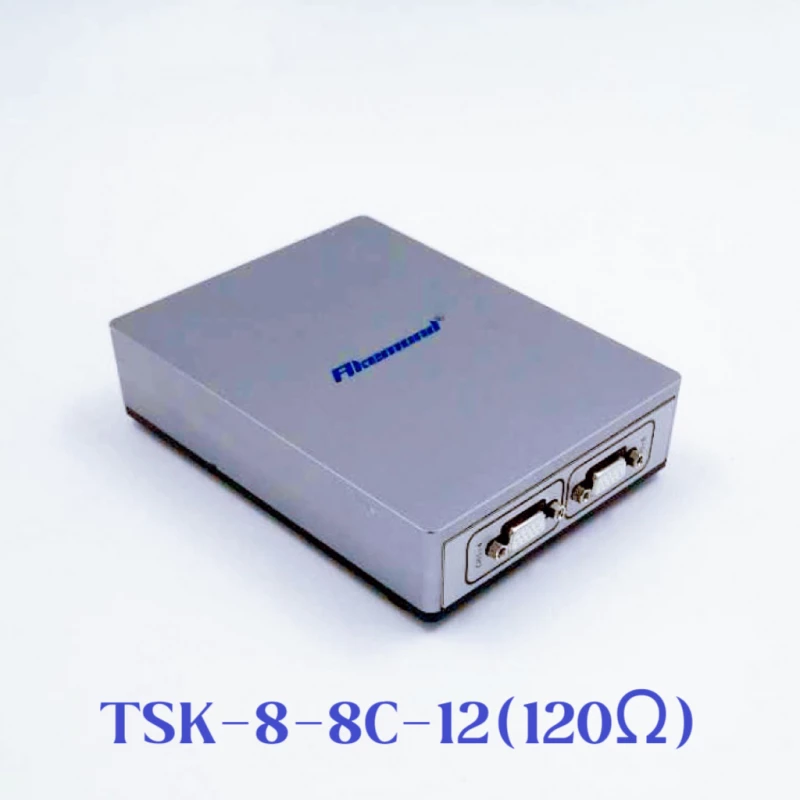

| Model No.: | TSK-8-8C |
| Channels: | 8-channel strain signal input |
| Maximum Capacity Module: | 8 |
| Sampling Frequency: | max10KHZ/per channel |
| AD Converter Resolution: | 24bits |
| Wheatstone Bridge Type: | 1/4 bridge |
| Supports Strain Gauge Sensors: | 120Ohms/350ohms |
| Nonlinear: | ±0.1%FS or less |
| Data Interface: | High-speed USB |
| Software Capabilities: | Real-time display, analysis, auto reports |
| Compliance: | IPC-JEDEC 9704 |
Features
- Multi-Channel Capability: Supports 8 to 32 input channels for simultaneous strain data collection
- High-Speed Sampling: Up to 10 kHz per channel to capture transient stress events
- 24-bit A/D Conversion: Enables ultra-precise, high-resolution measurements
- Strain Gauge Compatibility: Works with 120Ω and 350Ω resistance gauges
- Advanced Software Tools: Real-time data display, principal strain analysis, one-click reporting

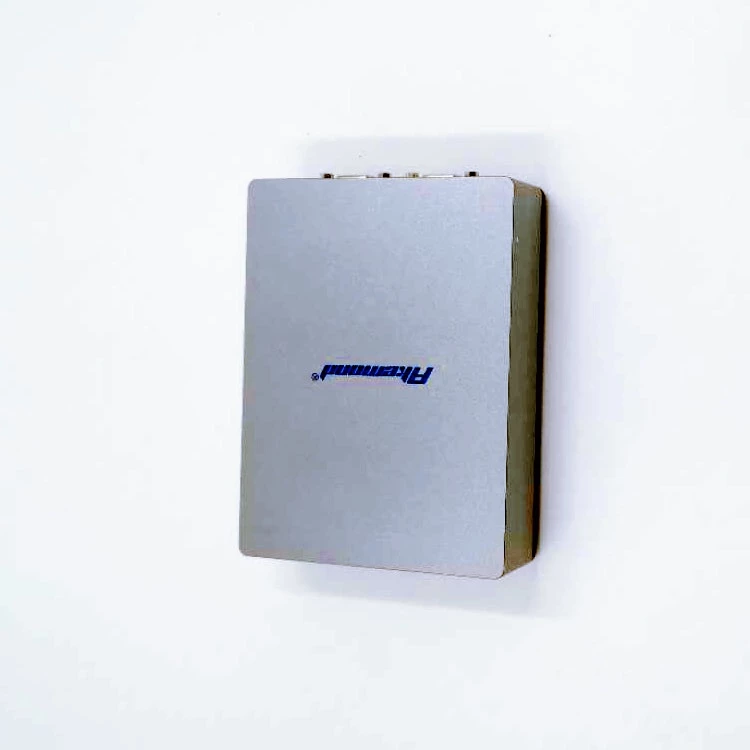

- Compact and Lightweight: Designed for easy transport and integration
- USB Connectivity: Ensures quick and reliable data transfer
- Wide Operating Range: Reliable performance from -40°C to +70°C
Applications
- PCB Reliability Testing: Identify strain points during drop testing, thermal cycling, or in-circuit testing
- Assembly Process Monitoring: Detect mechanical stress during reflow soldering or handling
- Fixture and Adapter Optimization: Analyze mechanical impacts from fixtures to minimize stress
- Failure Analysis: Pinpoint causes of structural failure for design or process improvements
- R&D and Product Development: Evaluate strain behaviors in prototypes and new PCB materials
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Dongguan Veshay Laser Technology Co., Ltd -
On FindLight:
since 2024
Frequently Asked Questions
The TSK Series is designed to measure mechanical strain on PCBs during manufacturing, assembly, and testing processes. It helps detect stress-related issues like pad lifting, solder joint cracks, and trace damage, improving overall product reliability.
The system supports both 120Ω and 350Ω resistance strain gauges, commonly used in PCB strain testing applications. This ensures compatibility with industry-standard sensors and flexible configuration for different testing needs.
The TSK Series supports 8 input channels by default and can be expanded to up to 32 channels. This allows for simultaneous strain monitoring at multiple points on the PCB during complex testing procedures.
Each channel supports a high sampling rate of up to 10 kHz, making the system capable of capturing fast, transient strain events with high fidelity and accuracy.
Yes, the TSK Series comes with powerful software that offers real-time data visualization, advanced strain calculations (such as diagonal and principal strain), and one-touch report generation to streamline documentation.
Yes, the system complies with IPC-JEDEC 9704, the standard guideline for strain measurement in printed circuit boards during assembly and in-circuit testing, ensuring its suitability for professional and industrial use.
