Akemond TSK Series PCB Strain Measurement System
Akemond Strain measurements is a designed for PCB board test and special tailor-made test system, the system provides many more stable hardware and powerful analysis software, and provides a user-friendly interface, to be able to significantly improve your test efficiency and product quality.
- Compact and light weight
- Card expansion channel
- Software filtering function
- Connect to strain gauge directly
- Available for 120 and 350 ohms in puts
- Easily connect to PC via Hi-Speed USB port
- All channels acquire strain signal simultaneously
- High speed sampling rate up to 10kHZ per channel
- User-friendly software with One-touch report generation function
- Date record/analysis/report software

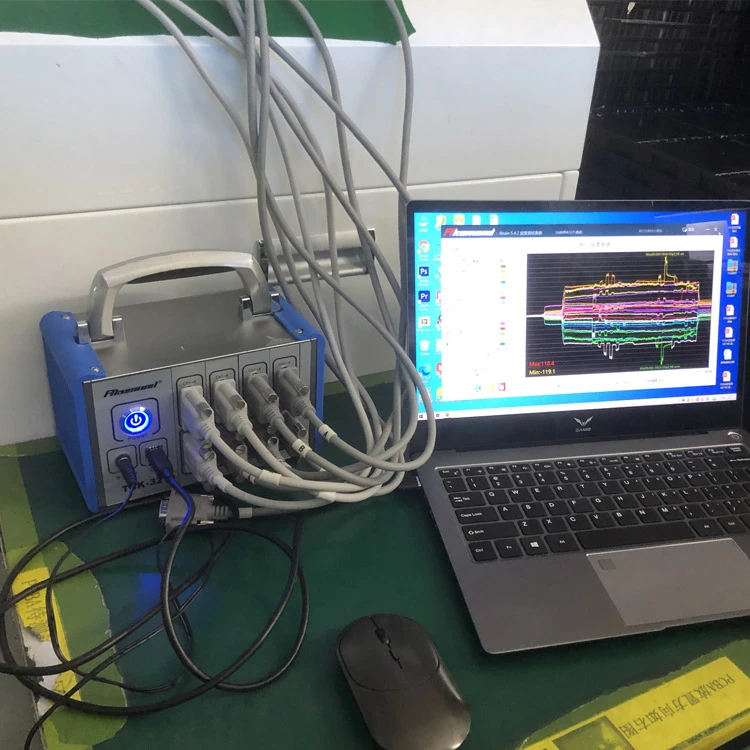

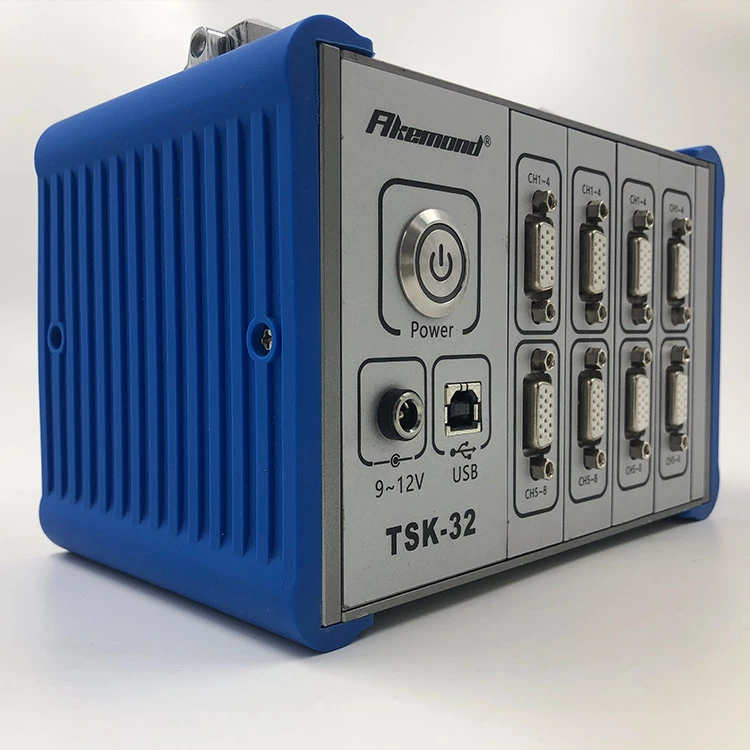

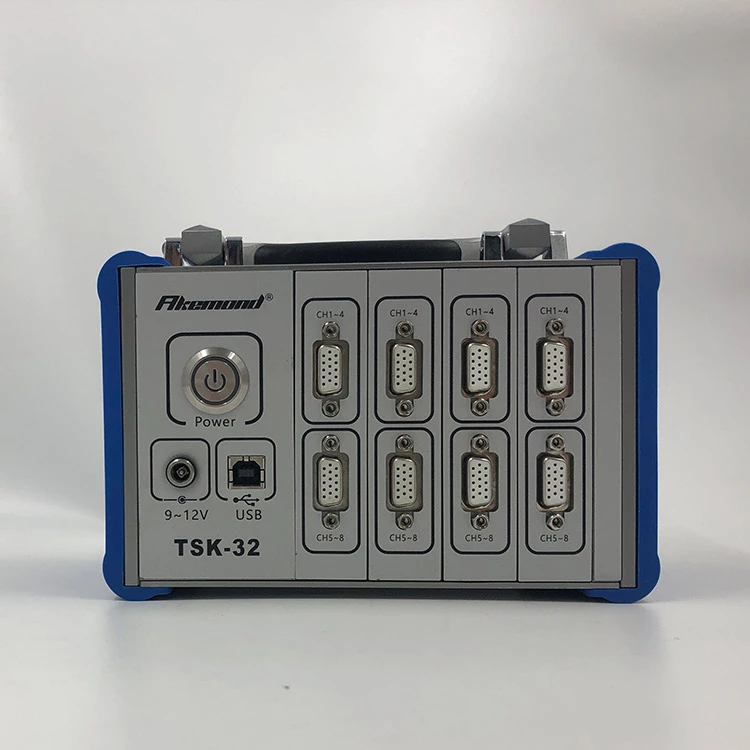

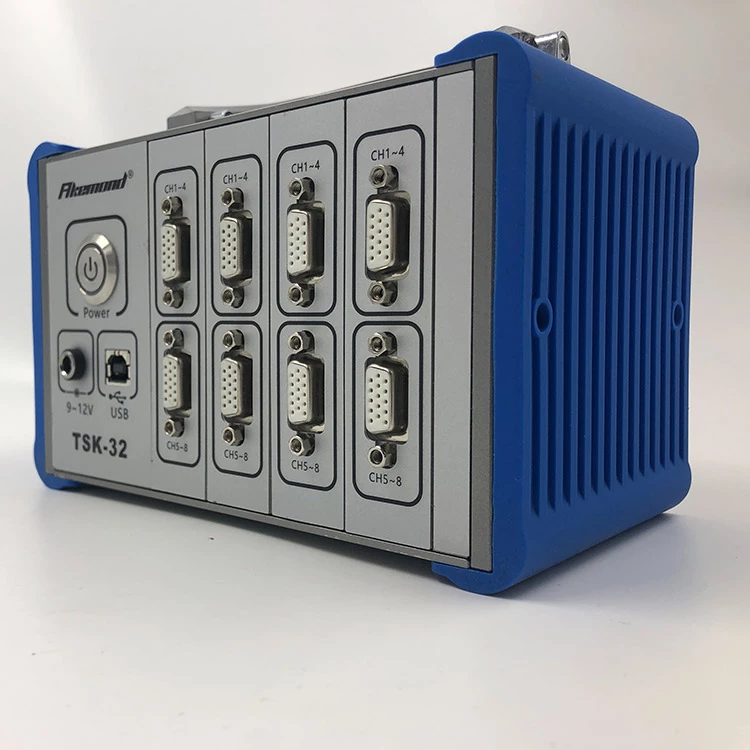

Veshay Akemond TSK-32-32C PCB Strain Measurement System
Specifications |
|
|---|---|
| Measurement Range: | -55500 – 55500 uE |
| Accuracy: | -0.3 – 0.3 % |
| Stability: | 6 ppm/degC |
| Sampling Frequency: | 10 KHz (per channel) |
| Operational Temperature Range: | -40 – 70 degC |
| Channels: | 8-channel strain signal input |
| Maximum Capacity Module: | 32 |
| Sampling Frequency: | Max10KHZ/per channel |
| AD Converter Resolution: | 24bits |
| Wheatstone Bridge Type: | 1/4 bridge |
| Measurement Objects: | Strain gauges |
| Measurement Range: | 士55500uE |
| Sampling Method: | Simultaneous sampling of all Channel |
| Operation Temperature: | -40℃℃ to 70℃ |
Features
- In accordance IPC-JEDEC 9704
- Light and easy to carry, impact resistance, more convenience for the users in different situation
- 120 and 350 ohm bridge circuit is directly connected with strain gauge
- High speed USB interface, 100% synchronous measurement of strain signal
- 50000Hz ultra high speed sampling rate and the resolution of the 24bits
- Single - report output function, greatly enhance the work efficiency
- English, Simplified, Traditional Operation Language
- Professional Diagonal Strain, Max/Min Principal strain Strain Rate analysis.
Applications
Strain testing allows objective analysis of the strain and strain rate levels that a SMT package is subjected to during PWB assembly, test and operation.
The PCB Strain Measurement System is special design for printed wiring board strain testing application, The real-time data provided by the Veshay system avoid the risk such failures include solder ball cracking, trace damage, pad lifting and substrate cracking during board manufacturing and test processes.
