Name: Veshay Akemond TSK-64-40C PCB Strain Measurement System
Brand: Dongguan Veshay Laser Technology Co., Ltd
Availability: InStock

Description

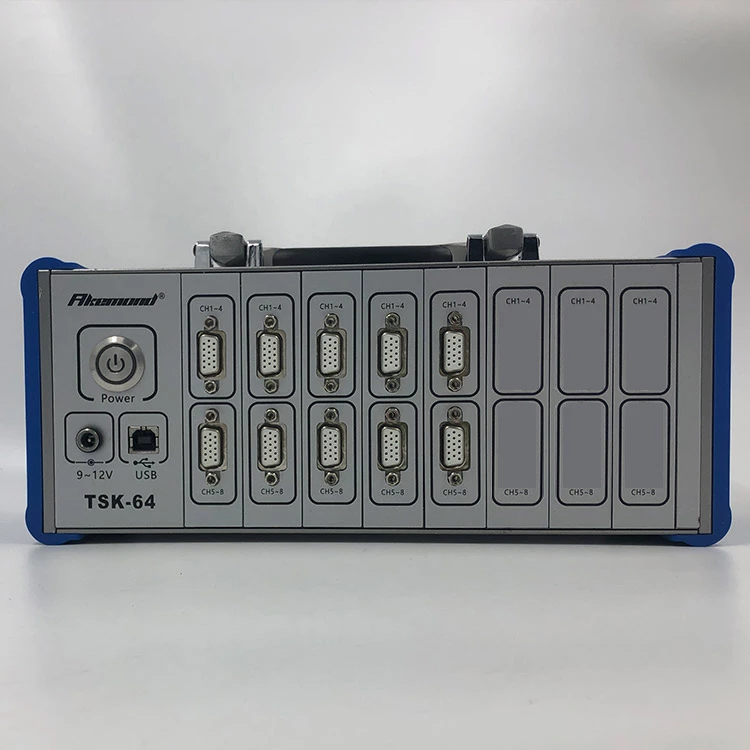

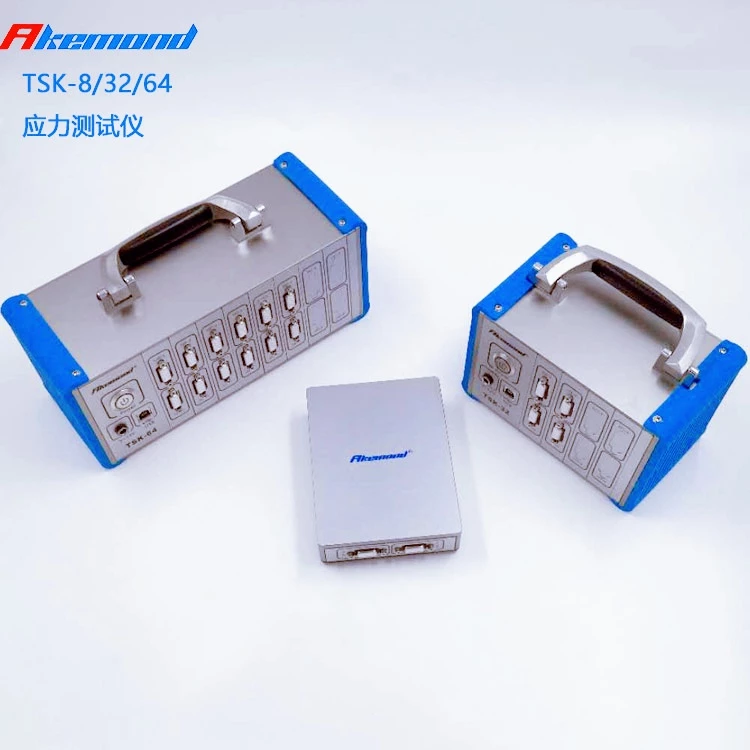

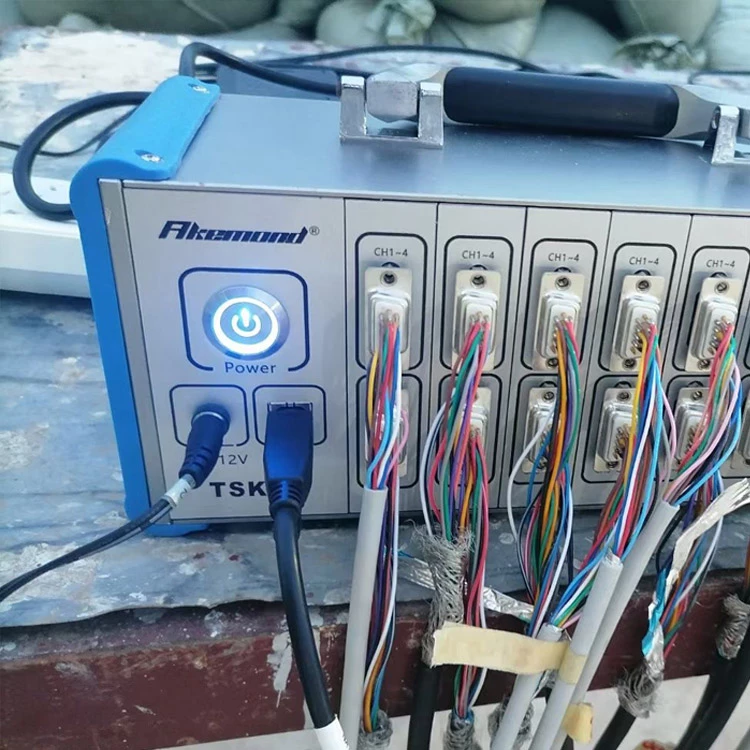

Akemond TSK Series PCB Strain Measurement System

Akemond Strain measurements is a designed for PCB board test and special tailor-made test system, the system provides many more stable hardware and powerful analysis software, and provides a user-friendly interface, to be able to significantly improve your test efficiency and product quality.

1.Compact and light weight

2.Card expansion channel

3.Software filtering function

4.Connect to strain gauge directly

5.Available for 120 and 350 ohms in puts

6.Easily connect to PC via Hi-Speed USB port

7.All channels acquire strain signal simultaneously

8.High speed sampling rate up to 10kHZ per channel

9.User-friendly software with One-touch report generation function

Date record/analysis/report software

Real-time display, Reporting function , Parameters setting, Auto-calcalationfunction(Max/Min strain value ,Peak to Peak strain value,Diagonal strain,Max/Min Principal strain,Strain rate and more)

Specifications

Measurement Range:	-55500 – 55500 uE
Accuracy:	-0.3 – 0.3 %
Stability:	6 ppm/degC
Sampling Frequency:	10 KHz (per channel)
Operational Temperature Range:	-40 – 70 degC
Channels:	8-channel strain signal input
Maximum Capacity Module:	40
Sampling Frequency:	Max10KHZ/per channel
AD Converter Resolution:	24bits
Wheatstone Bridge Type:	1/4 bridge
Supports Strain Gauge Sensors:	120Ohms/350ohmss
Nonlinear:	±0.1%FS or less
Measurement Objects:	Strain gauges
Measurement Range:	士55500uE
Accuracy:	士0.3%
Sampling Method:	Simultaneous sampling of all Channel
Sampling Frequency:	10KHZ/CH
Operation Temperature:	-40℃℃ to 70℃

Download Data Sheet

Features

Akemond TSK Series PCB Strain Measurement System Features：
1. In accordance IPC-JEDEC 9704
2. Light and easy to carry, impact resistance, more convenience for the users in different situation
3. 120 and 350 ohm bridge circuit is directly connected with strain gauge
4. High speed USB interface, 100% synchronous measurement of strain signal
5. 50000Hz ultra high speed sampling rate and the resolution of the 24bits
6. Single - report output function, greatly enhance the work efficiency
7. English, Simplified, Traditional Operation Language
8. Professional Diagonal Strain,Max/Min Principal strain Strain Rate etc. analysis.

Applications

Strain testing allows objective analysis of the strain and strain rate levels that a SMT package is subjected to during PWB assembly, test and operation.
The PCB Strain Measurement System is special design for printed wiring board strain testing application, The real-time data provided by the Veshay system avoid the risk such failures include solder ball cracking, trace damage, pad lifting and substrate cracking during board manufacturing and test processes.
