Description
The Veshay Akemond TSK-32-8C PCB Strain Measurement System is a specialized solution designed to accurately measure and analyze strain on printed circuit boards (PCBs) during various stages of manufacturing, testing, and operation. This system is tailored to detect mechanical stresses that can lead to failures such as solder joint cracking, trace damage, pad lifting, and substrate cracking.
Equipped with 8 strain signal input channels and supporting both 120Ω and 350Ω strain gauges, the TSK-32-8C ensures precise and simultaneous data acquisition across all channels at a high sampling rate of up to 10 kHz per channel. Its 24-bit analog-to-digital converter and 1/4 bridge Wheatstone configuration provide high-resolution measurements with an accuracy of ±0.3% and nonlinearity of ±0.1% FS.
The system's user-friendly software offers real-time data display, advanced analysis features—including diagonal strain, principal strain, and strain rate calculations—and one-touch report generation. Its compact and lightweight design, coupled with a high-speed USB interface, facilitates easy integration into various testing environments. Operating reliably within a temperature range of -40°C to 70°C, the TSK-32-8C is an essential tool for enhancing product quality and reliability in PCB manufacturing processes.

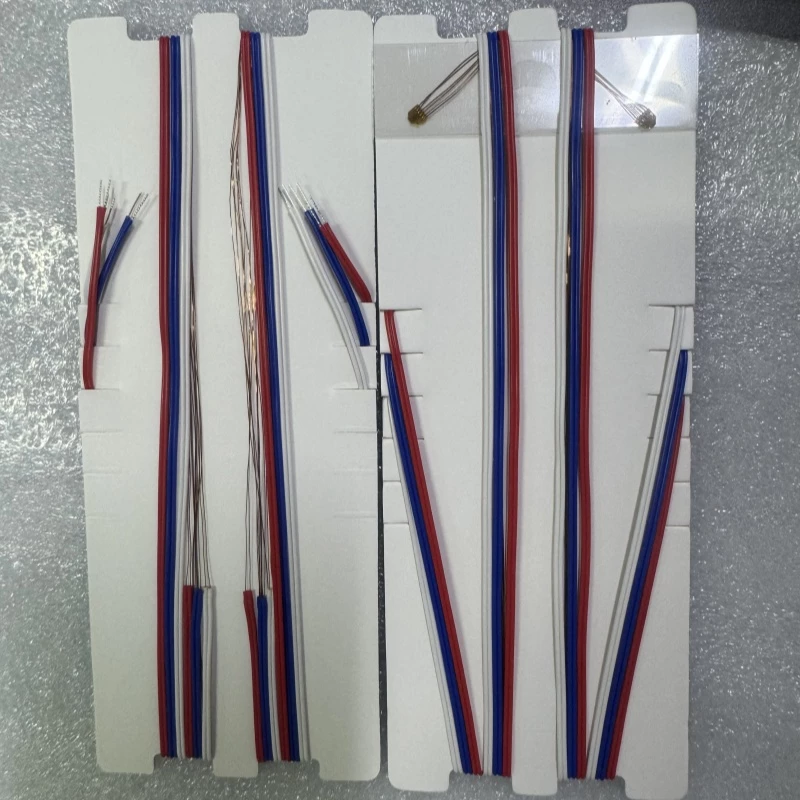

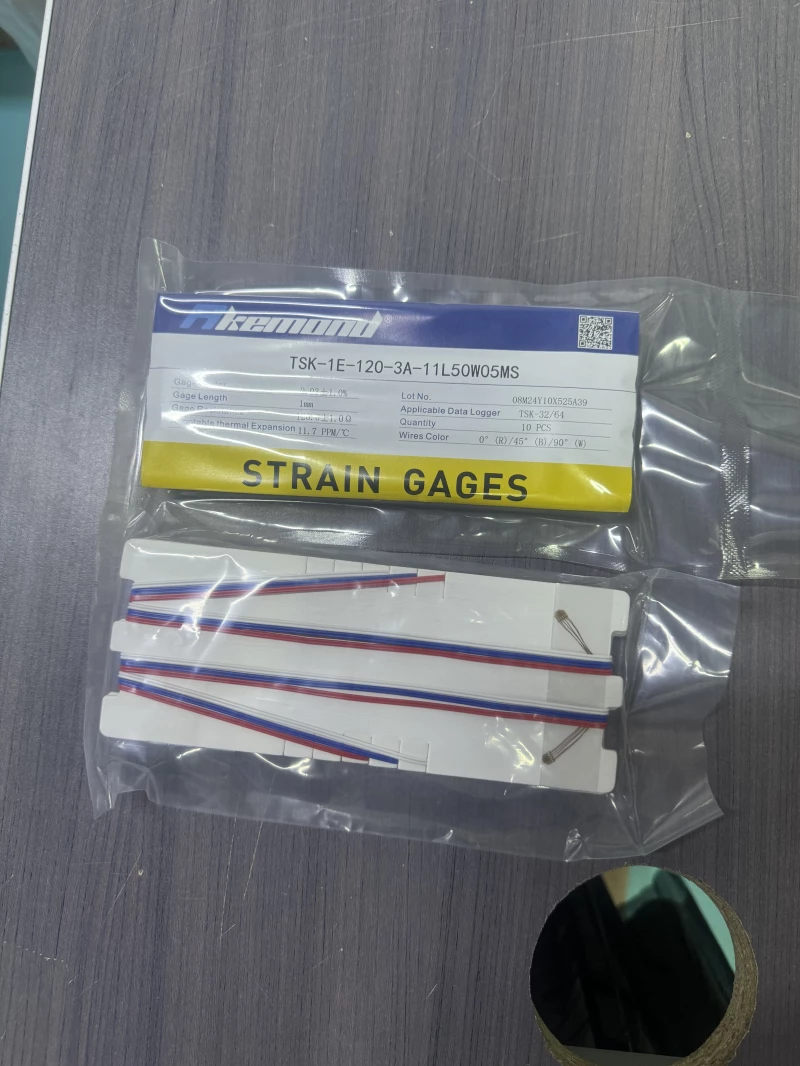

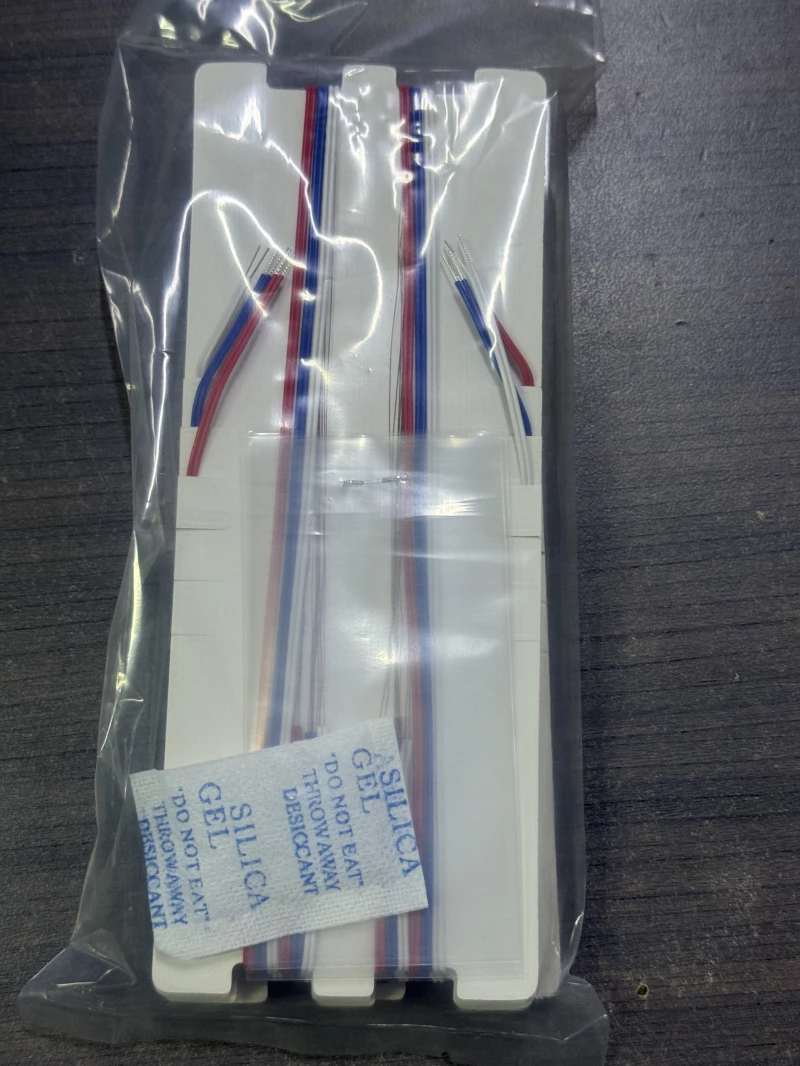

Veshay Akemond PCB Strain Gauges TSK-1E-120-3A-11L30W05MS
Specifications |
|
|---|---|
| Measurement Range: | -55500 – 55500 uE |
| Accuracy: | -0.3 – 0.3 % |
| Stability: | 6 ppm/degC |
| Sampling Frequency: | 10 KHz (per channel) |
| Operational Temperature Range: | -40 – 70 degC |
| Style: | Triaxial |
| Resistance: | 120 |
| Grid Length: | 1.1*1.0mm |
| Base Size: | 4*4mm |
| Insulated Wire: | 30cm |
| Extensive Wire: | 50cm |
| Channels: | 8 strain signal input channels |
| Maximum Capacity Module: | 32 |
| A/D Converter Resolution: | 24 bits |
| Wheatstone Bridge Type: | 1/4 bridge |
| Nonlinearity: | ±0.1% FS or less |
| Interface: | High-speed USB |
| Software Features: | Real-time display, analysis, report generation |
| Compliance: | IPC-JEDEC 9704 |
Features
- Simultaneous Multi-Channel Acquisition: 8 channels for concurrent strain signal measurement
- High Sampling Rate: Up to 10 kHz per channel for capturing transient events
- High-Resolution Measurement: 24-bit A/D converter ensures precise data capture
- Wide Compatibility: Supports 120Ω and 350Ω strain gauges
- User-Friendly Software: Real-time display, advanced analysis, and one-touch report generation
- Compact and Lightweight: Facilitates portability and ease of integration
- Robust Operating Range: Functions effectively between -40°C and 70°C
- Compliance: Meets IPC-JEDEC 9704 standards for strain measurement
Applications
- PCB Manufacturing: Detecting strain during assembly, testing, and operation to prevent mechanical failures
- Quality Assurance: Ensuring product reliability by identifying potential stress points
- Test Adapter Optimization: Measuring mechanical stress to refine test fixtures and minimize strain
- Research and Development: Analyzing strain effects in new PCB designs and materials
Frequently Asked Questions
The TSK-32-8C supports both 120Ω and 350Ω resistance strain gauges. These are commonly used in PCB strain testing and provide flexibility for a variety of testing scenarios.
The system features 8 strain signal input channels, enabling simultaneous data acquisition across all channels. It also supports scalability up to 32 channels using modular configurations.
Each input channel can sample data at up to 10 kHz, allowing the system to accurately capture fast, transient strain events during testing or operation.
Yes, the TSK-32-8C includes intuitive software that supports real-time data display, diagonal and principal strain calculations, strain rate analysis, and one-touch automated report generation.
The system is compliant with IPC-JEDEC 9704, the industry standard guideline for PCB strain testing during assembly and functional testing.
The TSK-32-8C is designed for use in environments ranging from -40°C to 70°C, ensuring reliable performance under diverse testing conditions.
