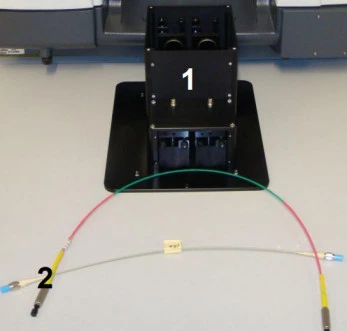

Thumbnail of FTIR Fiber Coupler FPC-6M photo 1
Thumbnail of FTIR Fiber Coupler FPC-6M photo 2

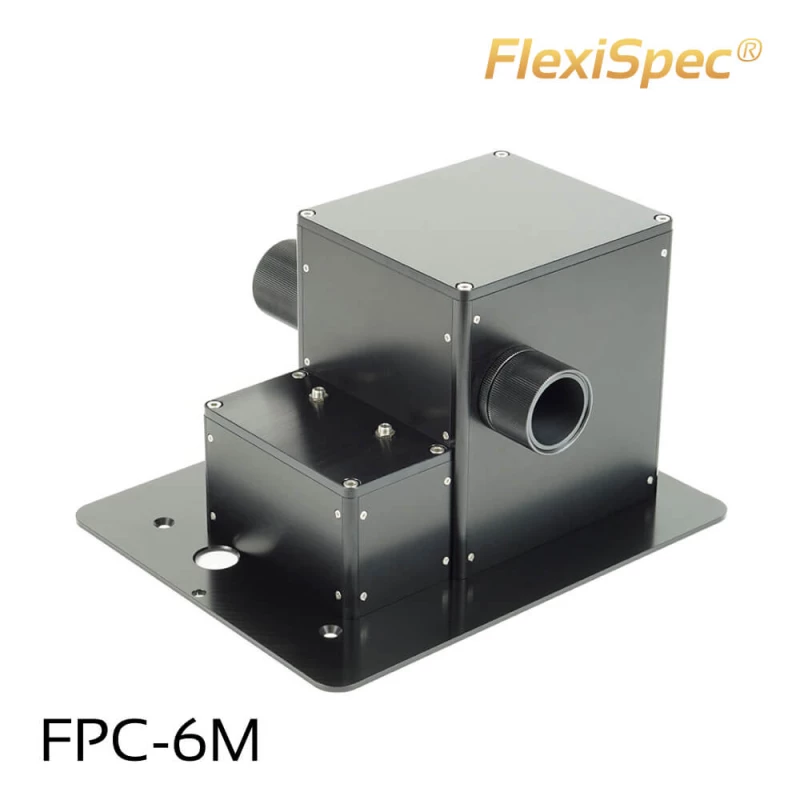

Thumbnail of FTIR Fiber Coupler FPC-6M photo 3

Description

FlexiSpec® fiber probe couplers from art photonics GmbH enable easy coupling of fiber probes with any FTIR spectrometer. Coupling with art photonics' FlexiSpec® fiber Probes with FT-spectrometers eliminates the need to prepare samples and place them into the sample chamber, and makes remote analysis possible for molecular reaction monitoring in-line.

FPC-6M is the latest generation Fiber Probe Coupler for big FTIR-spectrometers based on 6 mirror design providing the highest coupling efficiency with various fiber probes.

Suitable for various FTIR:

  • Nicolet iS 10/20/50
  • Nicolet 5700/6700
  • Nexus 360 / 670 (ThermoFisher Scientific)
  • Equinox 55 (ThermoFisher Scientific)
  • Vector 22 (Bruker)
  • IFS 25 / 55 / 66 / 66V / 88 (Bruker)

FPC-6M can be customized to match iBox and other industrial or lab FTIR- spectrometers, coupling probes with SMA or other connectors.

FTIR Fiber Coupler FPC-6M

Visit the Art photonics GmbH Store

Specifications

Fiber Connectors: SMA905
Suitable For Spectrometers: Nicolet iS 10/20/50, Nicolet 5700/6700, Nexus 360 / 670, Equinox 55, Vector 22, IFS 25 / 55 / 66 / 66V / 88

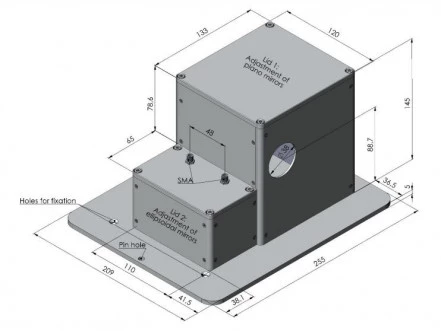

Dimensions (w/o Baseplate): 198 x 145 x 110 mm^3
Dimensions (with Baseplate): 255 x 150 x 209 mm^3
Axis-to-axis: 48 mm (between fiber connectors)
Case Material: Aluminum alloy (black anodized)
Weight: 2.5 kg
Ellipsoidal Metallic Coating Mirrors - Diameter: 42 mm
Ellipsoidal Metallic Coating Mirrors - Focus: 25 x 160 mm
Ellipsoidal Metallic Coating Mirrors - Coating: Gold
Plano Metallic Coating Mirrors - Diameter: 25.4 mm
Plano Metallic Coating Mirrors - Coating: Gold

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Fiber Probe Coupler FPC-6M comes with the following key features:

  • Efficient coupling of fiber probe to FTIR-spectrometer
  • Compatible with sample chamber of iS5 & other FTIR
  • Mirror optics to enable work in broad spectral range
  • In/Out ports compatible with SMA-terminated fiber probes
  • Pre-aligned for distinct FTIR-model and adjustable to maximize coupling efficiency



Applications

  • Upgrading Lab FTIR to replace sampling for remote reaction monitoring in-line.
  • Process- control with robust fiber probe terminated by SMA or other connectors.
  • Upgradable for various FTIR-models and adjustable for high coupling efficiency.
  • Easy to install in sample chamber - as any other accessories.



Frequently Asked Questions

What is the Fiber Probe Coupler FPC-6M?
The Fiber Probe Coupler FPC-6M is a device that enables easy coupling of fiber probes with any FTIR spectrometer.
What are the key features of the Fiber Probe Coupler FPC-6M?
The key features of the Fiber Probe Coupler FPC-6M include efficient coupling of fiber probe to FTIR-spectrometer, compatibility with sample chamber of iS5 & other FTIR, mirror optics to enable work in broad spectral range, in/out ports compatible with SMA-terminated fiber probes, and pre-alignment for distinct FTIR-model and adjustable to maximize coupling efficiency.
Which FTIR spectrometers is the Fiber Probe Coupler FPC-6M compatible with?
The Fiber Probe Coupler FPC-6M can be installed in sample chamber of various FTIR spectrometers from Thermo Fisher: iS10, iS50, Nexus 670 and Nicolet 6700. It can also be customized to match iBox and other industrial or lab FTIR-spectrometers, coupling probes with SMA or other connectors.
What are the applications of the Fiber Probe Coupler FPC-6M?
The applications of the Fiber Probe Coupler FPC-6M include upgrading Lab FTIR to replace sampling for remote reaction monitoring in-line, process-control with robust fiber probe terminated by SMA or other connectors, upgradable for various FTIR-models and adjustable for high coupling efficiency, and easy to install in sample chamber - as any other accessories.
What is included in the content of delivery for the Fiber Probe Coupler FPC-6M?
The content of delivery for the Fiber Probe Coupler FPC-6M includes the coupler itself, a user manual, and attachments such as new safety regulations for servicing laboratory equipment and confirmation on decontamination.
