Description
The bases for manual stages are made of aluminum alloy, they are used for connecting different stages.
Baseplates in these series come in several different model as you can see from the attached specification sheet. We have the mechanical drawing of the following models of these square and rectangular baseplates:
- BP-A40 (40mm x 40mm)
- BP-S40 (40mm x 40mm)
- BP-A60 (60mm x 60mm)
- BP-S60 (60mm x 60mm)
- BP-A65 (65mm x 65mm)
- BP-S65 (65mm x 65mm)
- BP-A80A (80mm x 80mm)
- BP-A80B (80mm x 100mm)
- BP-A80C (80mm x 125mm)
- BP-A80D (80mm x 175mm)
- BP-A100 (100mm x 100mm)
- NFP-461-Base (40mm x 40mm)
- NFP-462-Base (120mm x 65mm)
All plates are 10mm thick except for NFP series. If you have any questions, please do not hesitate to contact us using the button on the upper right.
Base for Manual Stages
Specifications
| Mount Material: | Anodized Aluminum |
|---|---|
| Adjustments: | Fixed |
| Thickness: | 9 -10 mm (depending on the model) |
| Width: | 40 - 100 mm (depending on the model) |
| Length: | 40 - 175 mm (depending on the model) |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Anodized Aluminum construction that balances weight and thermal stability
- Anodized aluminum surface minimizes stray light reflection making it ideal for low light spectroscopy experiments
Applications
These aluminum baseplates are ideal for connecting different manual stages or adding additional opto-mechamical components.
Frequently Asked Questions
What material is this baseplate made of?
It is made of a black anodized aluminum balancing excellent thermal stability and minimizing stray light reflection.
What holes do these baseplates come with?
These baseplates come predrilled with metric holes. Depending on the model the quantity, size and the distance of the holes varies. Please download the specification sheet for the various models available.
Do you have these baseplates in stock?
We typically carry an ample stock of inventory. However, to inquire about a specific model please contact us?
How much are those baseplates and do you offer quantity discounts?
For all pricing inquiries please contact using the button in the upper right corner.
Can I use these baseplates with motorized stages?
As long us the distance between the holes matches your motorized stage baseplate you should be able to easily connect these baseplates to your motorized stages. We have 13 different models to ensure we cover many possible geometries.
What are the bases for manual stages made of?
The bases for manual stages are made of aluminum alloy.
What are the dimensions of the square baseplates?
The square baseplates come in the following dimensions: BP-A40 (40mm x 40mm), BP-S40 (40mm x 40mm), BP-A60 (60mm x 60mm), BP-S60 (60mm x 60mm), BP-A65 (65mm x 65mm), BP-S65 (65mm x 65mm), BP-A80A (80mm x 80mm), and BP-A100 (100mm x 100mm).
Are all the baseplates the same thickness?
All baseplates, except for the NFP series, are 10mm thick.
What are the applications of these aluminum baseplates?
These aluminum baseplates are ideal for connecting different manual stages or adding additional opto-mechanical components.
Where can I find the mechanical drawings of the baseplates?

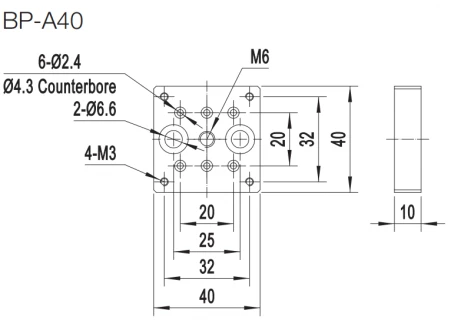

The mechanical drawings of the baseplates can be found in the attached specification sheet.
Got more questions? Use the inquiry form to ask the supplier directly.
