Description

The MID5C is a high-precision Motorized Iris Diaphragm featuring an adjustable square aperture, controlled via an intuitive PC-based graphical user interface (GUI). Its unique

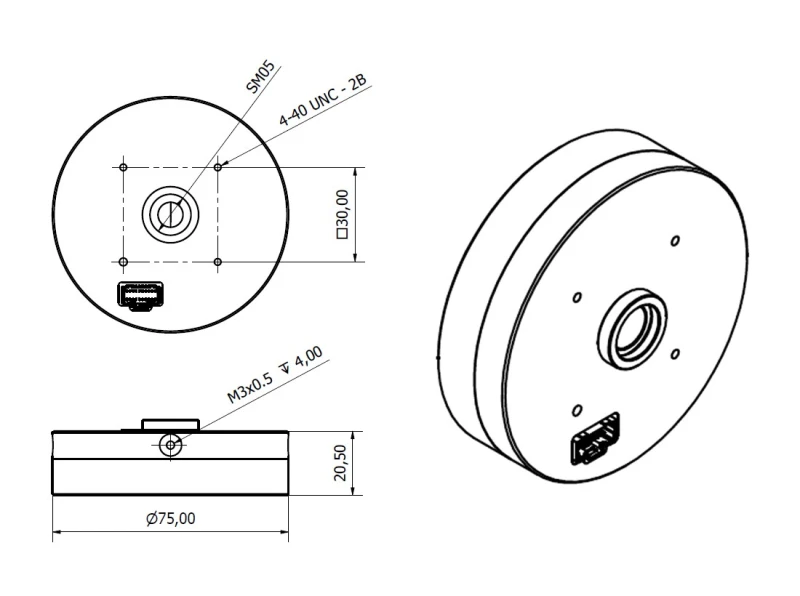

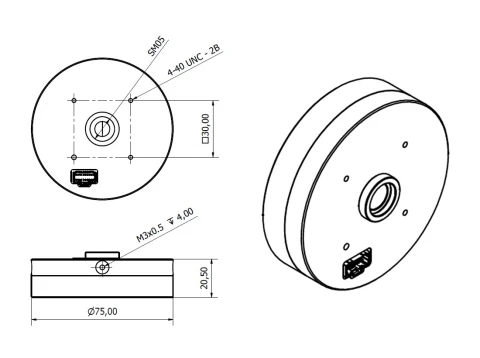

design ensures that the metallic blades maintain perfect onaxis centering relative to an internal hole - which can optionally be configured with an SM05-threaded mount.
Even when adjusted from 0 to 5 mm, the square aperture remains perfectly centered within the round external diaphragm. The blades are black anodized to minimize unwanted reflections, ensuring optimal performance. With an aperture adjustment precision of <0.5 µm and repeatability of <1 µm across the entire tuning range, the MID5C delivers exceptional accuracy. It is designed for seamless integration into both stand-alone setups and 30 mm cage systems (e.g., Thorlabs).

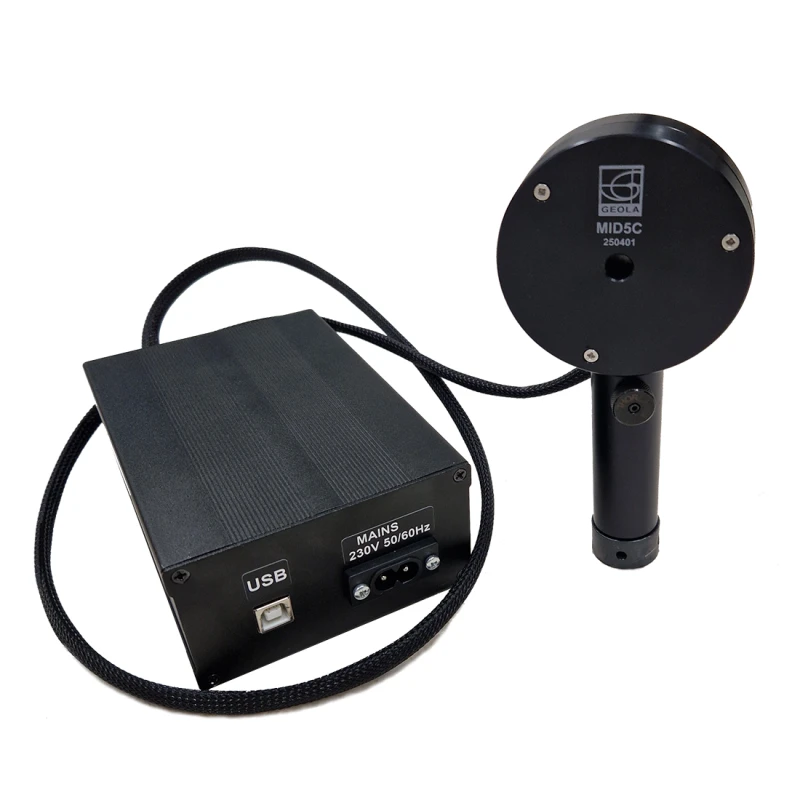

Motorized Iris Diaphragm MID5C

Geola Digital Ltd

Specifications

Aperture Shape: Square
Material (body): Anodized Aluminum
Material (blades): Aluminum
Aperture Size: 0 – 5 mm
Microstep Size (Default Resolution): 1 µm
Repeatability: < 1 µm
Precision: < 0.4 µm
Closing Speed (Max To Min): ~3 sec
Default Resolution: 1/512 of a step
Optics (objective) Mounting Interface: M25 x 0.5

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Always square and axis-centered!
  • Compatible with 30 mm cage system
  • Motorized adjustment range - 0 to 5 mm
  • Adjustment precision <0.5 µm within full adjustment range
  • Adjustment repeatability <1 µm within full adjustment range
  • Housing contains SM05–threaded mount for mounting an external optics (optional)
  • USB connection interface for PC

Applications

  • Light shaping
  • Light attenuation
  • OEM for laser processing units
  • OEM laser optics
  • Beam alignment

Frequently Asked Questions

What is the adjustment range of the MID-5C Motorized Iris Diaphragm?
The MID-5C Motorized Iris Diaphragm has an adjustment range of 0 to 5 mm.
What level of precision does the MID-5C offer?
The MID-5C offers an adjustment precision of less than 0.5 µm across its full adjustment range.
Is the MID-5C compatible with vacuum environments?
No, the MID-5C is not vacuum compatible.
What type of mounting interface does the MID-5C use?
The MID-5C uses M3 threaded holes for mounting and has an M25 x 0.5 optics (objective) mounting interface.
Does the MID-5C come with a built-in controller?

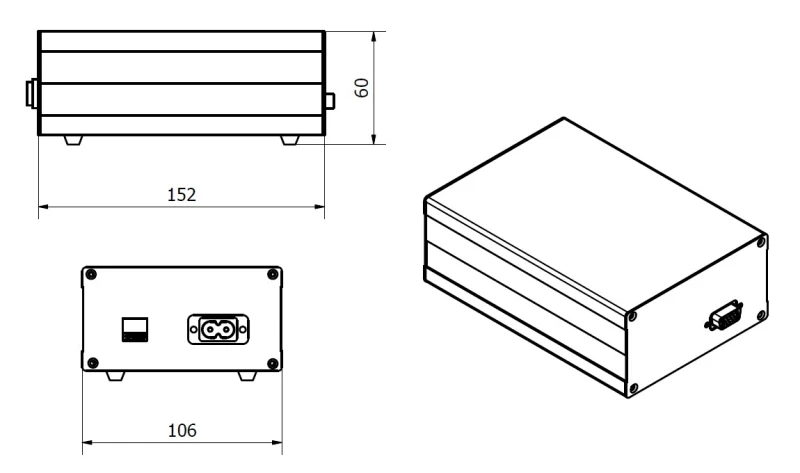

No, the MID-5C does not have a built-in controller. The recommended controller is the GSMC-E.
What is the operating temperature range for the MID-5C?
The MID-5C operates within a temperature range of -15 to 55 °C.
How is the MID-5C connected to a PC?
The MID-5C uses a USB connection interface for PC integration.

Got more questions? Use the inquiry form to ask the supplier directly.
