Description

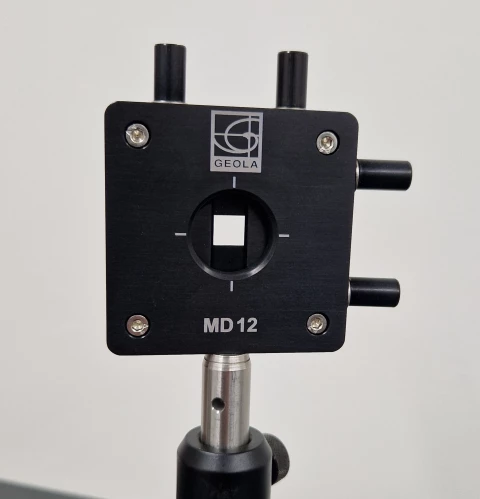

The MD12 is client-inspired very handy manually adjustable mechanical diaphragm. Intuitively simple aperture control consists of 4 independently-controlled aluminum sliding jaws, which can form either rectangle or square aperture of any size within 0…12mm range. Black anodized finish aluminum blades greatly reduce unwanted reflections. The MD12C model is intended for standard 60 mm cage system.
Mechanical Diaphragm
Geola Digital Ltd
Specifications
| Aperture Shape: | Rectangle |
|---|---|
| Material (body): | Black Anodized Aluminum |
| Material (blades): | Aluminum |
| Aperture Size: | 0 – 12 mm |
| Aperture Shape: | Square or Rectangle |
| Material (body): | Aluminum |
| Material (blades): | Aluminum (Brass – optional) |
| Aperture Size: | 0…12 mm |

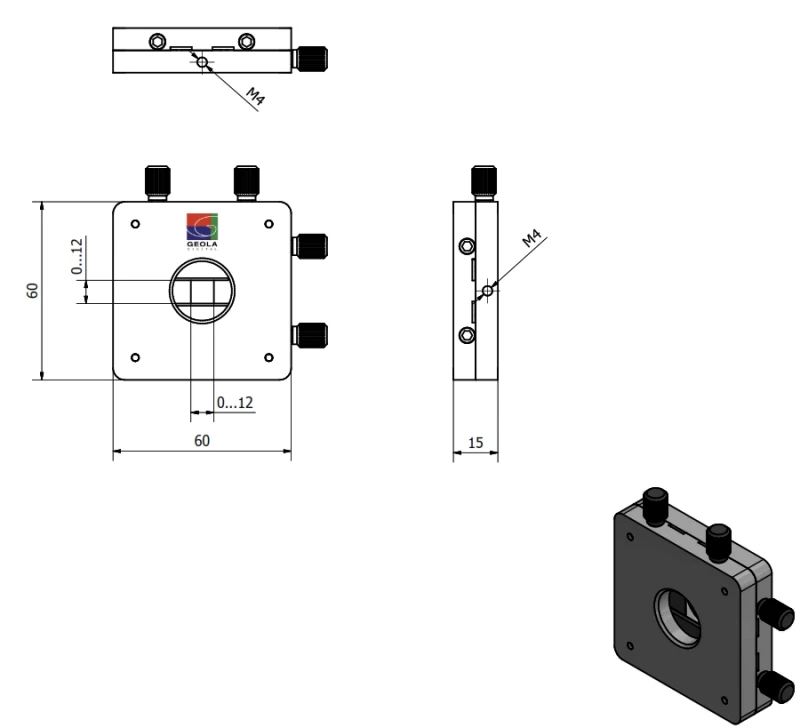

| Mechanical Size (W×H×L): | 60 × 60 × 15 mm |
| MD12 Mounting Thread: | 2 × M4 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Clients inspired very handy design
- Easy adjustable ranging from 0 to 12 mm

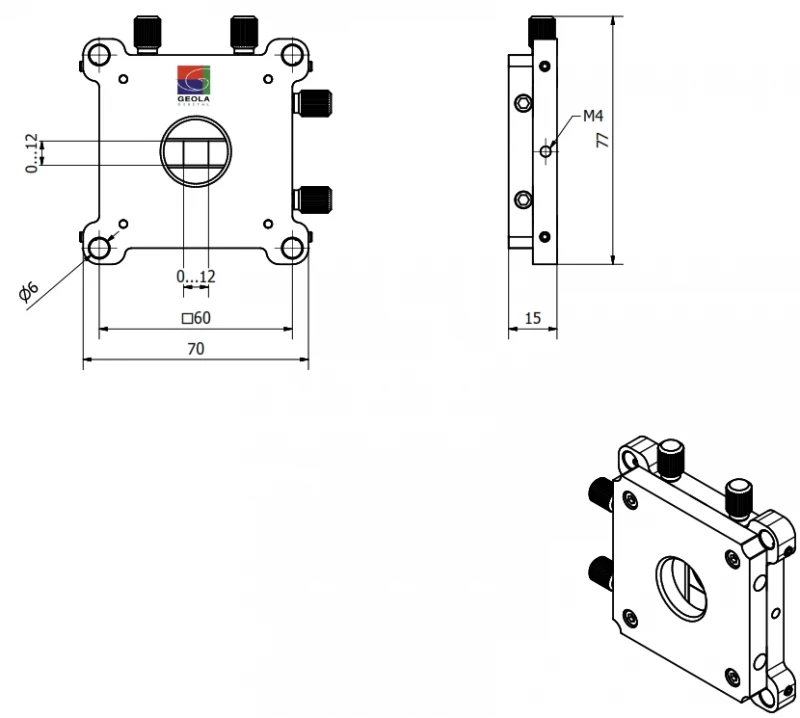

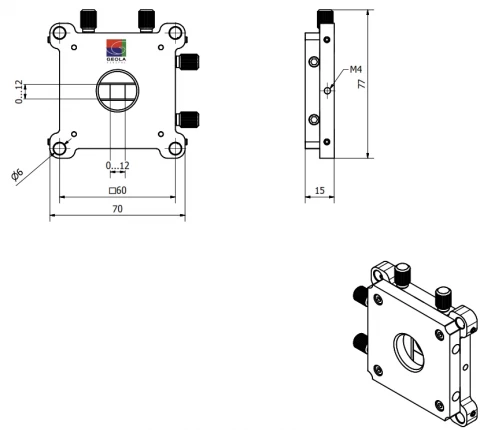

- MD12C model is designed for standard 60mm cage systems

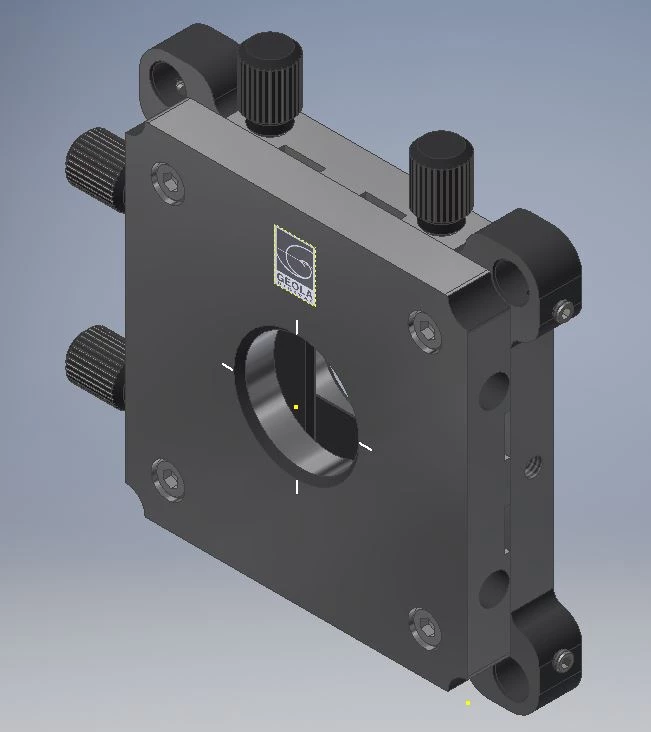

- MD12 housing may contain optional C-mount compatible mounting bed for external optics (optional)
Applications
- Light restriction for CCD
- General Light apodization
- Light restrictions for Monochromators
- Laser light apodization for laser-photonics
Frequently Asked Questions
What is the MD12 mechanical diaphragm used for?
The MD12 mechanical diaphragm is used for light restriction in various applications such as CCD, monochromators, and laser-photonics.
How does the aperture control of the MD12 work?
The aperture control of the MD12 consists of 4 independently-controlled aluminum sliding jaws, which can form either a rectangle or square aperture of any size within the 0...12mm range.
Can the MD12 be adjusted manually?
Yes, the MD12 can be easily adjusted manually ranging from 0 to 12mm.
Does the MD12 have optional external optics compatibility?
Yes, the MD12 housing may contain an optional C-mount compatible mounting bed for external optics.
What are the dimensions of the MD12?
The mechanical size of the MD12 is 60 × 60 × 15 mm and it has a mounting thread of 2 × M4.
Can the MD12 be integrated in to standard 60 mm cage system?
Yes, the model MD12C is particularly adopted for standard 60mm cage system.
Got more questions? Use the inquiry form to ask the supplier directly.
