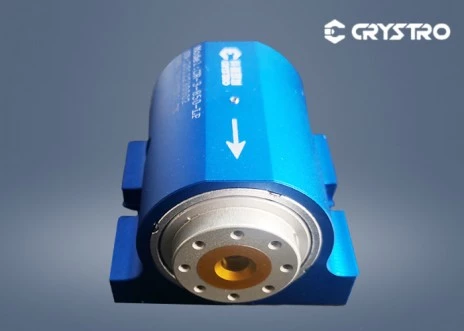

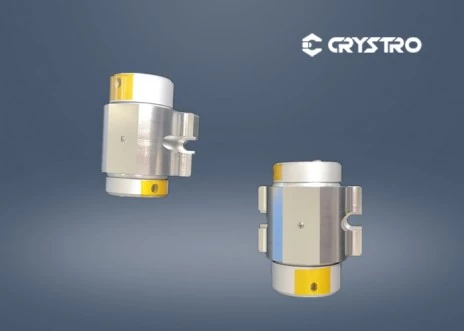

TGG Faraday Isolator
Description
Faraday isolator is a passive device that allows light to pass in one direction and prevents it from passing in the opposite direction.It's function is to limit the direction of light,so that light can only be transimitted in one direction and the light reflected through the fiber echo can be well isolated by the optical isolator and improve the efficiency of light wave transmission,The free space type isolator can be divided into two categories:polarization dependent and polarization independent type.
TGG Faraday Isolator
Specifications |
|
|---|---|
| Wavelength: | 1064nm nm |
| Bandwidth: | customized nm |
| Power: | 10w,30w,50w,100w W |
| Isolation Range: | 35-75dB |
| Transmission: | >93 % |
| Wavelength: | 750nm/850nm/1064nm |
| Material: | TGG,TSAG |
| Clear Aperture: | 3mm,5mm,8mm,12mm |
| Damagethreshold: | 10J/cm2@10ns |
Features
Crystro's own magneto=optical crystal TGG,TSAG has the characteristics of high extinction raio,low absorption ,low loss,etc.
It's used in optical isolator to acheive reliable isolation and stable performance.
Applications
Solid state laser machine
Fiber laser machine
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
A Faraday isolator is a passive device that allows light to pass in one direction and prevents it from passing in the opposite direction.
The function of a Faraday isolator is to limit the direction of light, allowing it to only be transmitted in one direction and isolating the light reflected through the fiber echo.
There are two categories of Faraday isolators: polarization dependent and polarization independent types.
Crystro's TGG and TSAG magneto-optical crystals have the characteristics of high extinction ratio, low absorption, low loss, etc., making them suitable for optical isolators with reliable isolation and stable performance.
Faraday isolators are commonly used in solid-state laser machines and fiber laser machines.
