Description

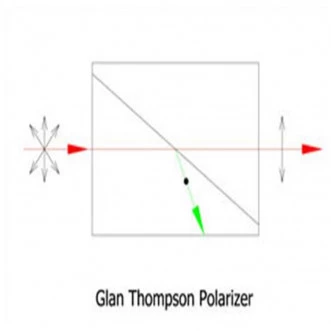

Photonchina presents the Glan-Thompson Polarizer, a precision optical device crafted from two cemented calcite or a-BBO prisms. This polarizer stands out for its exceptional optical clarity, ensuring the separation of unpolarized light into distinct polarized beams. As light enters the polarizer, it interacts at the junction of the calcite crystals, effectively splitting into S-polarized (e-ray) and P-polarized (o-ray) components. This separation is crucial for applications requiring distinct linear polarization states, making Photonchina's Glan-Thompson Polarizer a reliable choice for specialized optical needs.

The design of the Glan-Thompson Polarizer boasts a large field of view, making it particularly suitable for managing highly converging or diverging beams. This feature ensures high polarization efficiency and excellent transmission rates across both emerging beams. The polarizer is meticulously engineered to maintain superior optical performance, making it an indispensable component for applications where the utilization of both linear polarization states is necessary.

While the Glan-Thompson Polarizer offers outstanding optical capabilities, it is essential to handle it with care due to the sensitivity of calcite crystals to temperature fluctuations. To prevent thermal shock, it is advisable to allow the polarizer to acclimate for 6-8 hours upon arrival. Additionally, the polarizer's cemented prism interface limits its optical intensity, making it suitable for low-power applications. For higher power requirements, Photonchina recommends exploring their Glan Laser Polarizers, which are designed to withstand more demanding conditions.

Glan-Thompson Polarizer Calcite 350-2300nm High Extinction Ratio

Specifications

Material: Calcite, Custom, YVO4, a-BBO
Wavelength Range: 200 – 3500 nm
Max Extinction Ratio: >= 100:1, >= 1000:1, >= 10000:1
Wavefront Distortion: <= Lambda/4, <= Lambda/6, <= Lambda/10, <= Lambda/20
Surface Quality (Input, Output Faces): 60-40 scratch-dig, 40-20 scratch-dig, 20-10 scratch-dig, 10-5 scratch-dig
Material: a-BBO, Calcite
Wavelength Range: a-BBO: 200~3500 nm, Calcite: 350~2300 nm
Extinction Ratio: a-BBO:<5x10-6 , Calcite:<5x10-5
Surface Quality: 20 / 10
Parallelism: <1 arc Min
Beam Deviation: < 3 arc minutes
Wavefront Distortion: λ /4@633nm
Damage Threshold: >200 MW/cm²
Coating: Single MgF2
Mount: Black Anodized Aluminium

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide Field of View: Ideal for highly converging or diverging beams, providing high polarization and great transmission.
  • High Extinction Ratio: Ensures superior separation of polarized light.
  • Coating Options: Available in both coated and uncoated types, with wavelength ranges of 350-2300 nm for uncoated, and 350-700 nm or 650-1050 nm for AR coated options.
  • Material Choices: Available in calcite or a-BBO crystal, catering to different application needs.
  • Mounting Options: Photonchina provides both mounted and unmounted Glan-Thompson Polarizers.
  • Limitations/Warnings:
    • Calcite crystals are sensitive to temperature and may crack under thermal shock. Allow 6-8 hours for thermal equilibrium after delivery.
    • Glan-Thompson Polarizers are suitable for low power applications due to their cemented prism interface. For high power applications, consider Photonchina’s Glan Laser Polarizers.

Applications

  • Wide field of view: Ideal for highly converging or diverging beams.
  • High extinction ratio: Provides excellent polarization.
  • Coating options: Available in both coated and uncoated types.
    • Uncoated: 350-2300 nm
    • AR Coated: 350-700 nm or 650-1050 nm
  • Material options: Choose from calcite or a-BBO crystal.
  • Mounting options: Both mounted and unmounted are available.



Frequently Asked Questions

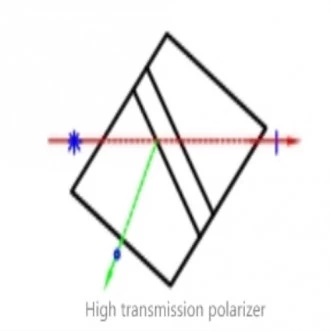

What is the damage threshold for the High Transmission Glan Laser Polarizers?
The damage threshold for the High Transmission Glan Laser Polarizers is >500 MW/cm2.
What is the incidence angle of the High Transmission Glan Laser Polarizers?
The incidence angle of the High Transmission Glan Laser Polarizers is brewster angle cut.
What is the recommended acceptance angle for the High Transmission Glan Laser Polarizers?
The polarizers are not recommended to use for large acceptance angle. It is typically used at the angle within +/-5 degrees.
What is the surface quality of Photonchina’s Glan-Thompson Polarizer?
The surface quality of Photonchina’s Glan-Thompson Polarizer is 20/10.
What is the wavelength range for the uncoated Glan-Thompson Polarizer?
The wavelength range for the uncoated Glan-Thompson Polarizer is 350-2300 nm.

Got more questions? Use the inquiry form to ask the supplier directly.
