Description

Stimulated Brillouin Scattering (SBS) is one of the most common nonlinear optical processes for achieving Phase Conjugating Mirror (PCM). Phase conjugating SBS mirrors are simple self-pumped devices that can easily be applied in double-pass amplifier configurations as high-reflecting mirrors.

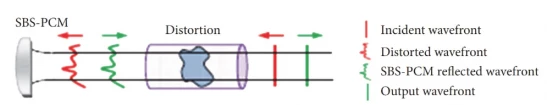

The wavefront inversion with respect to the propagation direction of the light, the phase conjugation, allows for the compensation of phase distortions from, for example, the active material in solid-state lasers in the second pass. As result, almost ideal wavefronts can be obtained at the output of such lasers.

The beam quality of such laser systems containing phase conjugating SBS mirrors can be diffraction-limited, although the phase distortions from the highly pumped and thus strongly thermally stressed active material would not allow beam propagation factors better than 10.

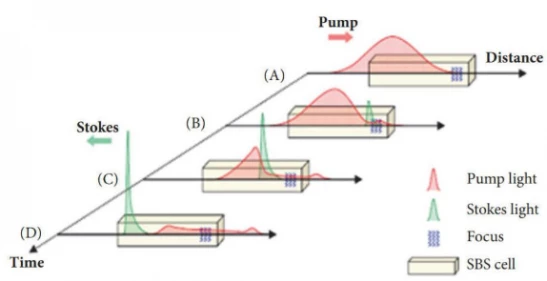

Besides phase conjugation mirror the SBS cells can be applicable for another important phenomenon called SBS pulse compression. The SBS pulse compression is based on the ability of an SBS-active material to amplify the leading edge of a backward Stokes pulse in the field of forward-propagating pump beam.

For more information follow the link: https://www.geola.com/product/sbs-phase-conjugating-cells/

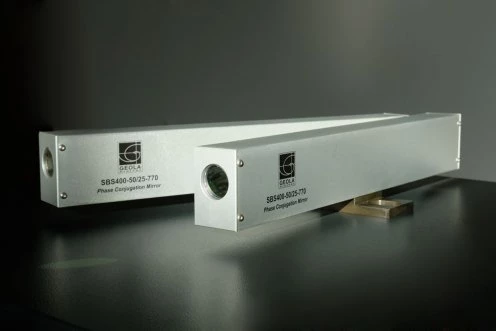

Phase Conjugating Mirror

Geola Digital Ltd

Specifications

Liquid: Fluorinert (FC40 through FC3283)
Brillouin Linewidth: 1292 MHz
Brillouin Shift: 1386 MHz
SBS Cell Lengths: 200, 250, 300, 400, 500 mm
Standard Window Diameters: 20 mm, 25 mm
Beam Height: 25mm or 50 mm
Rigid Stainless Steel /Standard Glass Type: YES / YES

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact design
  • Custom cell length, mounting and its designs are welcome!
  • Non-toxic (fluorinert) SBS active liquids are default
  • Available models with build-in frontal focusing lens

Applications

  • Phase Conjugation Mirror
  • Beam cleanup
  • Beam combining

Frequently Asked Questions

What is a Phase Conjugating Mirror (PCM)?
A Phase Conjugating Mirror is a device that uses Stimulated Brillouin Scattering (SBS) to achieve wavefront inversion and compensate for phase distortions in laser systems.
How can phase conjugating SBS mirrors improve beam quality?
Phase conjugating SBS mirrors can produce almost ideal wavefronts, resulting in diffraction-limited beam quality.
What are the applications of phase conjugating SBS mirrors?
Phase conjugating SBS mirrors can be used for phase conjugation, beam cleanup, and beam combining in laser systems.
Are the SBS active liquids used in the mirrors toxic?
No, the SBS active liquids used in the mirrors are non-toxic (fluorinert).
Can the SBS cells be customized?
Yes, the SBS cells have a compact design and can be customized in terms of cell length, mounting, and designs.

Got more questions? Use the inquiry form to ask the supplier directly.
