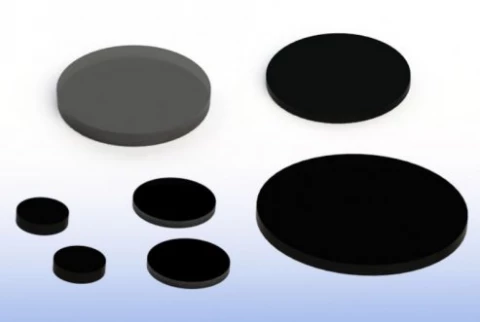

Neutral Density Filter-Absorptive

Specifications

Attenuator Type: Absorptive
Shape: Round, Square, Custom
Size: 25.4 mm
Optical Density: 0.1
Design Wavelength: 400 - 700 nm
Surface Quality: 80/50 scratch and dig
Clear Aperture: > 90 %
Flatness: < 2λ @632.8nm
Parallelism: < 5 arc minutes
Document icon Download Data Sheet Download icon

Features

  • Material Absorptive Glass
  • Dimension Tolerance +0.0/-0.2mm
  • Thickness Tolerance ±0.2mm
  • Flatness 2λ @632.8nm
  • Surface Quality 80/50 scratch and dig
  • Parallelism Clear Aperture >90%
  • Design Wavelength 400-700nm
  • OD Tolerance ±10% of OD
