Multi-C-1.5
Description

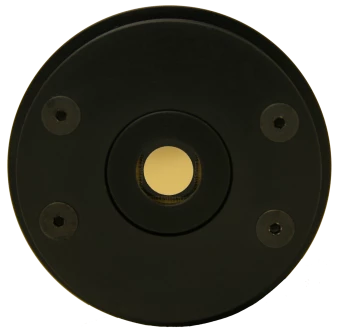

The Multi-C-DM deformable mirror: A versatile, robust deformable mirror system for advanced wavefront control.
The popular Multi-DM offers sophisticated aberration compensation in an easy-to use package. With 137 precisely controlled elements and low inter-actuator coupling, this system is ideal for a broad range of applications including microscopy, retinal imaging, and laser beam shaping. The high speed, high precision drive electronics are easily controlled via USB interface. This deformable mirror is available in both continuous and segmented surfaces for adaptive optics or spatial light modulator applications. The DMs are capable of up to 100kHz frame rate, have sub-nm step size, and zero hysteresis.
Multi-C-1.5
Specifications |
|
|---|---|
| Number Of Actuators: | 137 |
| Wavefront Tip-Tilt Stroke (PtV): | 1.5 um |
| Actuator Pitch: | 300 um |
| Pupil Size (Clear Aperture): | 3.6 mm |
| Surface Quality (RMS): | 30 nm |
| Mechanical Response (10%-90%): | 70 us |
| Reflective Coating Material: | Gold, Aluminum, Protected Silver |
Features
Coating: Aluminum, Gold or Protected Silver
Zero hysteresis
Sub-nm average step size
Fill Factor >99% (DM), 98% (SLM)
Applications
Microscopy
Astronomy
Laser beam shaping
Laser communication
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The Multi-C-DM deformable mirror is used for advanced wavefront control in a broad range of applications including microscopy, retinal imaging, and laser beam shaping.
The Multi-C-DM deformable mirror has 137 precisely controlled elements.
The mechanical response time of the Mini-DM is less than 20 μs.
The stroke of the Multi-DM deformable mirror is 5.5 μm.
The price of the Mini-DM is $5,000.
