Deformable Mirror HEX-3K
Description
The +K-DM Family deformable mirrors: High spatial-resolution wavefront correctors for next generation applications in astronomy and laser communications. Boston Micromachines Corporation is leading the industry in high actuator‐count MEMS deformable mirror technology. These mirrors are fielded at prominent astronomical facilities around the world to improve wavefront correction capabilities, enabling cutting edge science. The 4K‐DM deformable mirror is currently being installed on the Gemini Planet Imager instrument and our 3KDM is included in the design for multiple space telescope concepts. Finally, the 2K‐DM is currently installed as an enabling component in the Subaru Coronagraph Extreme Adaptive Optics (SCExAO) Instrument and has been on‐sky multiple times.

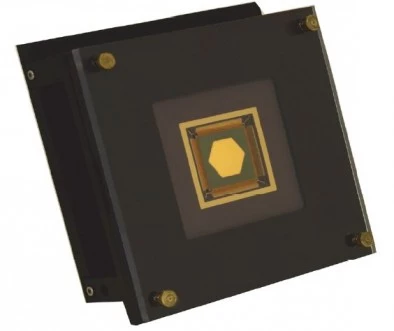

Deformable Mirror HEX-3K
Specifications |
|
|---|---|
| Number Of Actuators: | 3063 |
| Wavefront Tip-Tilt Stroke (PtV): | 1.5 um |
| Actuator Pitch: | 300 um |
| Pupil Size (Clear Aperture): | 18.6 mm |
| Surface Quality (RMS): | 40 nm |
| Mechanical Response (10%-90%): | 75 us |
| Reflective Coating Material: | Gold, Aluminum, Protected Silver |
| Hexagonal Segment: | 1021 |
| Rings Of Hexagonal Segment: | 19 |
| Approximate Interactuator Coupling: | 15% +/- 5% |
| Dimensions: | 5.25” x 19’ x 14’ (3U Chassis) |
| Frame Rate: | 20 kHz |
| Driver IO Interface: | SFP fiber link 2.5 Gbps |
| Driver Step Resolution: | 14 bit |
Features
MEMS deformable mirrors are the most commonly used architecture in many AO applications given their versatility, maturity of technology, and the high resolution wavefront correction capabilities with sub-nm step size. Using advanced, inexpensive manufacturing technology, MEMS DMs’ performance strengths are inherent to micromachining:
1. Large arrays create high resolution wavefront correction.
2. Advanced microstructures allow minimal influence between adjacent actuators for high spatial frequency surfaces
3. Optimized design enables rapid wavefront shaping for high speed applications.
Applications
The +K-DM Family: High spatial-resolution wavefront
correctors for next generation applications in astronomy and laser communications.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The +K-DM Family deformable mirror is a high spatial-resolution wavefront corrector for next generation applications in astronomy and laser communications.
MEMS deformable mirrors have large arrays that create high resolution wavefront correction, advanced microstructures that allow minimal influence between adjacent actuators for high spatial frequency surfaces, and optimized design that enables rapid wavefront shaping for high speed applications.
The driver specifications for the +K-DM Family deformable mirror include DIO interface: SFP fiber link (2.5 Gbps), 14 bit step resolution, Frame Rate: 20 kHz, and Dimensions: 5.25” x 19’ x 14’ (3U Chassis).
The specifications for the 2K DM include continuous or segmented surface, 2048 actuators, 50 actuators across the aperture, active aperture: 20mm, 1.5μm, 3.5μm stroke available, approx. Mechanical Response Time (10%-90%) < 75μs, and approx. Interactuator Coupling (±5%): 15%.
The specifications for the 4K DM include continuous surface, 4092 actuators, 64 actuators across the aperture, active aperture: 25mm, 3.5μm stroke, approx. Mechanical Response Time (10%-90%) < 100 μs, and approx. Interactuator Coupling (±5%): 13%.
