Description
Surface mounted FBG strain sensor MS-01/MST-01 can meet the strain measurement needs of various occasions, and can be installed in different monitoring positions such as concrete surfaces or steel surfaces. Mainly used to measure the strain of steel structures and concrete surfaces. The external strain transmits the strain to the internal fiber grating through the sensor mounting base, and the high-precision fiber grating converts the sensed tiny strain into a sensitive optical wavelength, which is analyzed by an FBG interrogator.

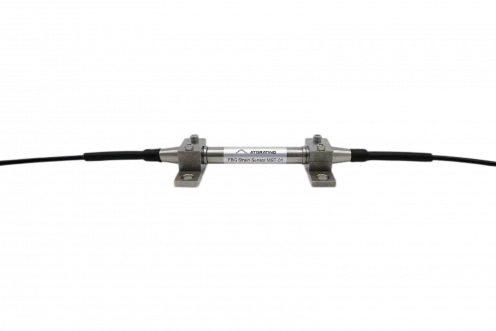

Surface Mounted FBG Strain Gauge MST-01
Specifications
| Strain Sensitivity: | 1.2 pm/με |
|---|---|
| Gage Length: | 71 mm |
| Operating Temperature Range: | -20 – 80 deg C |
| Strain Limits: | -1500 – 1500 με |
| Center Wavelength: | 1460 ~ 1610 nm |
| Strain Resolution: | 0.01% F.S. με |
| Strain Accuracy: | 0.1% F.S. με |
| Temperature Compensation: | Build-in |
| Material: | Stainless steel |
| Dimension: | Φ12 x 126 mm |
| Installation: | Welding |
| Pigtail Length: | 1m Φ3mm armored cable |
| Optical Connector: | FC/APC |
Download Data Sheet
Features
- High precision, resolution, and stability
- Buit-in Temperature Compensation (MST-01)
- Anti-electromagnetic interference
- Long-term zero point stability
- Easy to set up distributed sensor network
- Easy to install and reusable
Applications
- Suitable for strain monitoring of bridges, gas pipelines, etc
- Large steel structures such as transmission line towers, cranes, hoists
- Strain monitoring of rail surface
- Steel structure & concrete surface strain measurement
Frequently Asked Questions
What is the Surface Mounted FBG Strain Gauge MST-01 used for?
The Surface Mounted FBG Strain Gauge MST-01 is mainly used to measure the strain of steel structures and concrete surfaces.
What are the key features of the Surface Mounted FBG Strain Gauge MST-01?
The key features of the Surface Mounted FBG Strain Gauge MST-01 include high precision, resolution, and stability, built-in temperature compensation (MST-01), anti-electromagnetic interference, long-term zero point stability, easy setup of distributed sensor network, and easy installation and reusability.
What applications is the Surface Mounted FBG Strain Gauge MST-01 suitable for?
The Surface Mounted FBG Strain Gauge MST-01 is suitable for strain monitoring of bridges, gas pipelines, large steel structures such as transmission line towers, cranes, hoists, strain monitoring of rail surfaces, and steel structure & concrete surface strain measurement.
Does the Surface Mounted FBG Strain Gauge MST-01 have temperature compensation?
Yes, the MST-01 variant of the Surface Mounted FBG Strain Gauge has built-in temperature compensation.
What is the operating temperature range of the Surface Mounted FBG Strain Gauge MST-01?
The operating temperature range of the Surface Mounted FBG Strain Gauge MST-01 is -20°C to +80°C.
