os3500 Embeddable Optical Strain Gage
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The os3500 Embeddable Strain Sensor measures average strain over the length of the gage while providing integrated temperature compensation. It is based on fiber Bragg grating (FBG) technology. The os3500 is intended exclusively for embedding in concrete structures. Disk ends form a solid bond to surrounding concrete or grout.
A rugged, stainless steel body, ruggedized cables and optional connector protection fittings make the os3500 suitable for harsh environments.Two FBGs are well protected inside the os3500 body. One FBG measures strain, and the other provides for integrated temperature compensation. Since there are no epoxies holding the fiber to the carrier, long-term stability is ensured by design.
In side-by-side comparisons with vibrating-wire and foil strain gages, the os3500 is equally sensitive and accurate, while providing 100 times more fatigue life. The os3500 strain gage is qualified for use in harsh environments and delivers the many advantages inherent to all FBG based sensors.
This sensor can be used alone or in series as part of an FBG sensor array. Installation and cabling for such arrays is much less expensive and less cumbersome than comparable electronic gage networks.

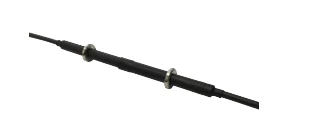

os3500 Embeddable Optical Strain Gage
Specifications |
|
|---|---|
| Strain Sensitivity: | 1.2 pm/με |
| Gage Length: | 110 mm |
| Operating Temperature Range: | -40 – 80 deg C |
| Strain Limits: | -2500 – 2500 με |
Features
- Temperature compensation sensor integrated inside. Measurement of relative temperature for compensation of strain measurements.
- Qualified to same rigorous standards applied to comparable electronic gages.
- Connector protection fittings available for harsh environments.
- Fast, Simple, repeatable installation
- Non-metallic ruggedized sensor package.
- Double ended design supports multiplexing of many sensors on one fiber
- Luna’s patented micro opto-mechanical technology.
Applications
- Structures (bridges, dams, tunnels, mines, buildings, oil platforms)
- Energy (wind turbines, oil wells, pipelines, nuclear reactors, generators)
- Transportation (railways, trains, roadways, specialty vehicles, cranes)
- Marine vessels (hull, deck, cargo containers)
- Aerospace (airframes, composite structures, wind tunnels, static and dynamic tests)
Frequently Asked Questions
Yes, the os3500 Embeddable Strain Sensor can be used alone or in series as part of an FBG sensor array. Installation and cabling for such arrays is much less expensive and less cumbersome than comparable electronic gage networks.
The os3500 Embeddable Strain Sensor is intended exclusively for embedding in concrete structures and can be used in structures, energy, transportation, marine vessels, and aerospace applications.
Yes, the os3500 Embeddable Strain Sensor is qualified for use in harsh environments and has a rugged, stainless steel body, ruggedized cables, and optional connector protection fittings.
In side-by-side comparisons with vibrating-wire and foil strain gages, the os3500 is equally sensitive and accurate, while providing 100 times more fatigue life.
The os3500 Embeddable Strain Sensor is based on fiber Bragg grating (FBG) technology.
