os3600 Embeddable Optical Strain Sensor
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description

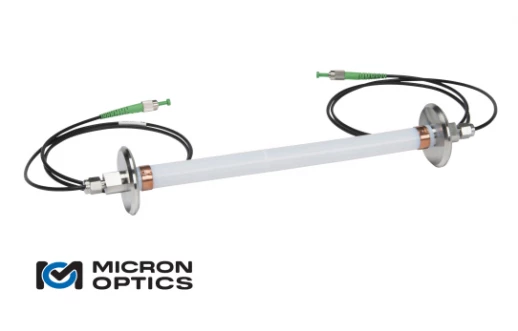

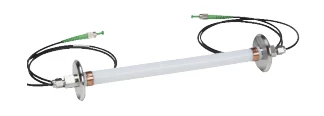

The os3600 is based on fiber Bragg grating (FBG) technology and is available two gage lengths of 25 or 100 cm. It is intended exclusively for embedding in concrete structures. Disk ends form a solid bond to surrounding concrete or grout. Universal ends allow the user to employ bolt-on, weld-on, or custom end brackets for attachment to rebar or other structures before embedding.
A rugged, Teflon and steel-shielded body, armored cables, and optional connector protection fittings make the os3600 suitable for harsh environments. Two FBGs are well protected inside the os3600 body. One FBG measures strain, and the other provides for integrated temperature compensation. Since there are no epoxies holding the fiber to the carrier, long-term stability is ensured by design.
In side-by-side comparisons with vibrating wire and foil strain gages, the os3600 is equally sensitive and accurate, while providing 100 times more fatigue life. The os3600 strain gage is qualified for use in harsh environments and delivers the many advantages inherent to all FBG based sensors.
This sensor can be used alone or in series as a part of an FBG sensor array. Installation and cabling for such arrays is much less expensive and less cumbersome than comparable electronic gage networks.
os3600 Embeddable Optical Strain Sensor
Specifications |
|
|---|---|
| Strain Sensitivity: | 1.2 pm/με |
| Gage Length: | 250 mm |
| Operating Temperature Range: | -40 – 80 deg C |
| Strain Limits: | -2500 – 2500 με |
Features
- Temperature compensation sensor integrated inside. Measurement of relative temperature for compensation of strain measurements.
- Two standard gage lengths of 25 and 100 cm.
- Fast, simple, repeatable installation.
- Qualified to same rigorous standards used for comparable electronic gages.
- Double ended design supports multiplexing of many sensors on one fiber.
- Cable integrated with sensor package for fiber protection and strain relief.
- Connector protection fittings available for harsh environment.
- Luna’s patented micro opto-mechanical technology.
- Included in ENLIGHT’s sensor templates – allows for quick and easy optical to mechanical conversions.
- IP67 rated for protection from dust and water ingress.
Applications
- Structures (bridges, dams, tunnels, mines, buildings, oil platforms)
- Energy (wind turbines, oil wells, pipelines, nuclear reactors, generators)
- Transportation (railways, trains, roadways, specialty vehicles, cranes)
- Marine vessels (hull, deck, cargo containers)
- Aerospace (airframes, composite structures, wind tunnels, static and dynamic tests).
- Homeland security (perimeter intrusion, heat detection, security gate monitoring)
Frequently Asked Questions
The os3600 has a temperature compensation sensor integrated inside, two standard gage lengths of 25 and 100 cm, fast and simple installation, and is qualified to the same rigorous standards used for comparable electronic gages. It also has a double-ended design that supports multiplexing of many sensors on one fiber, cable integrated with sensor package for fiber protection and strain relief, connector protection fittings available for harsh environments, and is IP67 rated for protection from dust and water ingress.
The os3600 can be used in structures, energy, transportation, marine vessels, aerospace, and homeland security for various purposes such as measuring strain and temperature in wind turbines, oil wells, pipelines, nuclear reactors, generators, airframes, composite structures, and more.
The os3600 is a strain sensor that measures average strain over the length of the gage while providing integrated temperature compensation. It is based on fiber Bragg grating (FBG) technology and is available in two gage lengths of 25 or 100 cm.
In side-by-side comparisons with vibrating wire and foil strain gages, the os3600 is equally sensitive and accurate, while providing 100 times more fatigue life.
The os3600 is intended exclusively for embedding in concrete structures such as bridges, dams, tunnels, mines, buildings, and oil platforms.
