Description

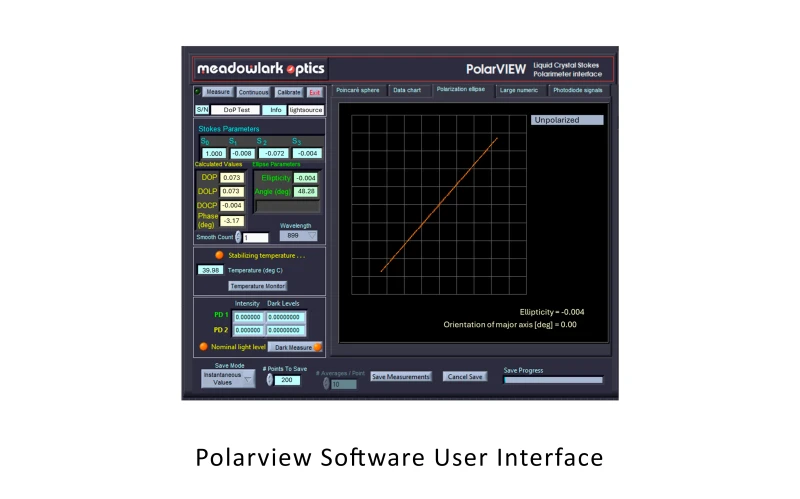

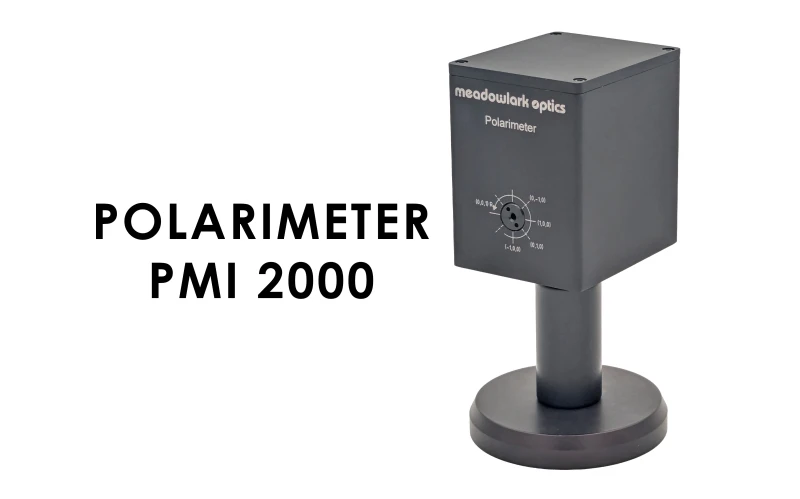

Our NEW user-friendly Liquid Crystal Stokes vector Polarimeter (PMI-2000) provides high accuracy and reliability in an easy-to-use instrument, suitable for manufacturing and laboratory applications. Our Polarimeter is a compact system with convenient computer control that accurately measures Stokes parameters 10 times per second. It quantifies the State of Polarization (SOP) and graphically displays the Poincaré Sphere, Polarization Ellipse, or running chart. The Meadowlark Optics system contains no spinning waveplates, motors, or other moving parts to wear or cause vibrations. Patented algorithms provide high accuracy and calibration versatility.

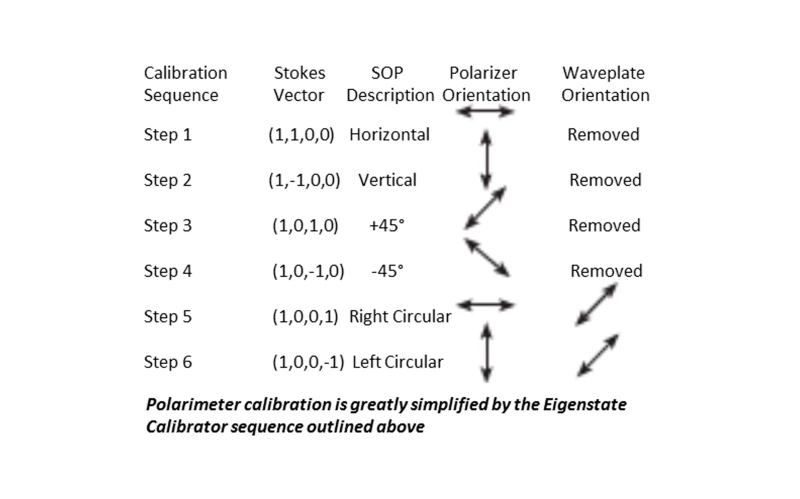

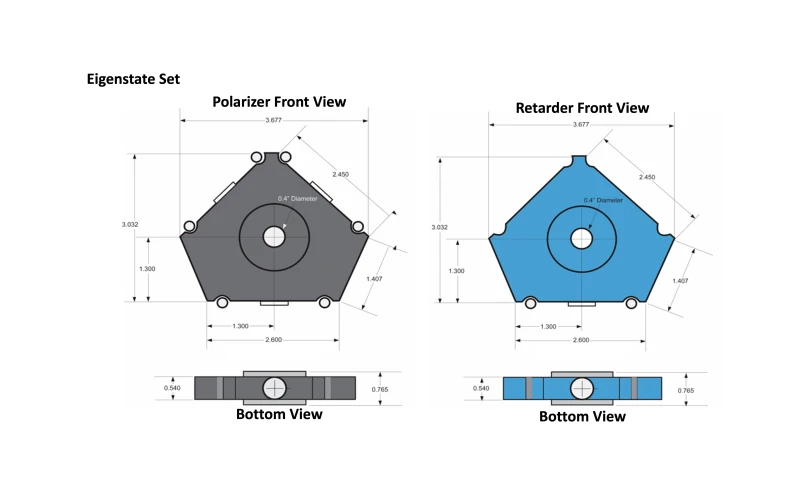

Meadowlark Optics Polarimeter 2.0 (PMI2) and Eigenstate Calibration Set (ECS)
Specifications
| Wavelength Coverage: | 450 – 1700 nm |
|---|---|
| Sampling Rate: | 10 Samples/Sec |
| Measured Parameters: | Stokes Parameters, Degree of Polarization |
| VIS Version: | 450-1100 nm |
| NIR Version: | 900-1700 nm |
| Command And Control Interface: | USB 2.0 Micro A |
| Degree Of Polarization Accuracy: | <1% |
| Warm-Up Time: | 15 minutes |
| Minimum Optical Power To Maintain Accuracy: | 10 uW |
| Resolution Of Stokes Vector Components: | 0.001 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Compact
- No moving parts
- Broad wavelength range
- Versatile Configuration
- User-Friendly Operation
- High Sensitivity
Applications
- Polarimetry
