Description
High-precision centration test devices, the product group represents the global standard for optical centration testing. With its extremely high degree of centration accuracy and integrated operation, systems are indispensable in modern optics productions. It makes no difference whether the sample has a small or very large diameter, works in the visual or infrared spectral range of measuring: modular systems permit a wide range of different applications and samples for optimum composition.

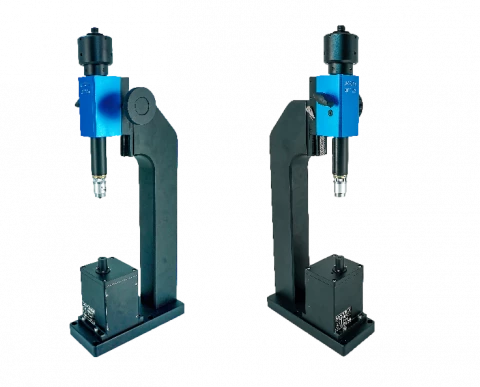

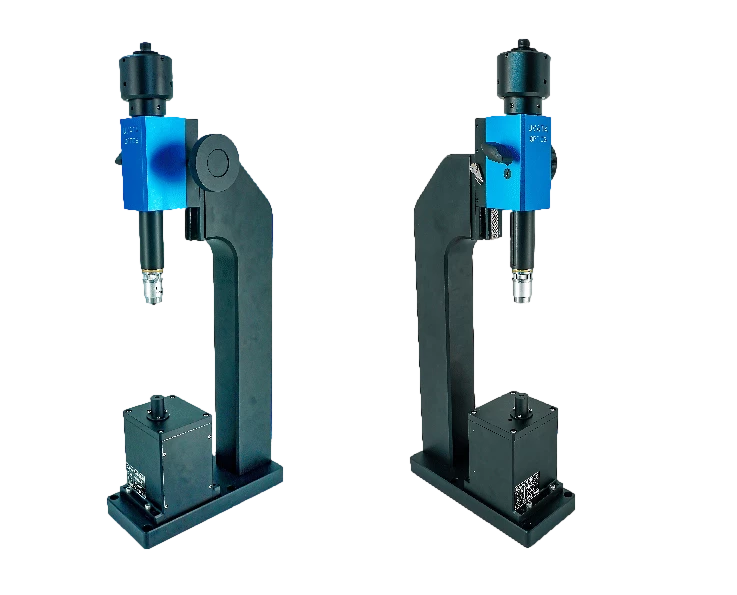

Centration Testing Instrument
Specifications
| Magnification: | CCDTV-X10 Objective lens 10X |
|---|---|
| Targeting Type: | CROSS |
| Moving Type: | Electric type |
| Measurable Lens Max. Diameter: | 180mm |
| Measurable Lens Focal Length: | ±500mm |
Download Data Sheet
Features
- Modular Designed, Easy to install
- No need Calibration, Time Efficient
- CHART Modular software control, Precise, Convenient
- Height >180mm, Measurable lens focal length ±500mm
Applications
- Laminated lens centering equipment
- Assembly eccentricity correction equipment
- automatic eccentricity detection equipment
Frequently Asked Questions
What is the CSRayzer RZAF001?
The CSRayzer RZAF001 is a modular-designed Centration Testing Instrument, developed for easy installation and efficient operation without the need for calibration. It's ideal for precise lens centration and assembly eccentricity correction.
How does the RZAF001 ensure time efficiency?
The RZAF001 requires no calibration, which significantly reduces setup time, making it a time-efficient solution for optical device testing.
What software controls the RZAF001?
The instrument is controlled by the CHART Modular software, known for its precision and convenience, allowing for easy operation and accurate measurements.
What is the maximum measurable lens focal length of the RZAF001?
The RZAF001 can measure lenses with a focal length of up to ±500mm, accommodating a wide range of optical devices.
What types of lenses can the RZAF001 measure?
It can measure lenses up to 180mm in diameter, making it suitable for a variety of lens sizes and types.
How accurate is the RZAF001?
The instrument boasts a maximum accuracy of 3.3 arcseconds, ensuring precise and reliable measurements for critical applications.
What type of light source does the RZAF001 use?
It uses a 6V 3W Greenlight LED with a lifespan of over 10,000 hours, providing a stable and long-lasting light source for measurements.
What are the main applications of the RZAF001?
The RZAF001 is used for laminated lens centering, assembly eccentricity correction, and automatic eccentricity detection, making it versatile for various optical manufacturing and testing processes.
How is the RZAF001 operated?
Its electric moving type mechanism ensures smooth and precise adjustments, enhancing the user experience and measurement accuracy.
How can I learn more about the RZAF001?
Please use the "Contact Supplier" button to contact the CSRayzer experts.
