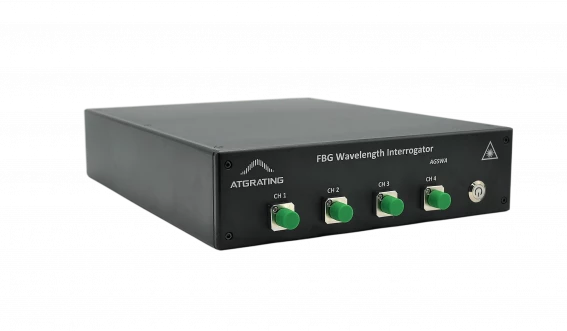

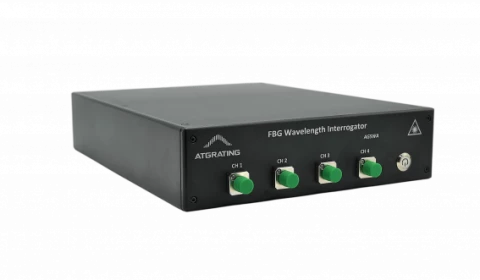

FBG Wavelength Interrogator AGSWA

Specifications

Measurement Capability: Strain, Pressure, Temperature, Displacement, Vibration
Number Of Optical Channels: 1
Scan Frequency: 5000 Hz
Wavelength Range: 1510 – 1590 nm
Wavelength Accuracy: 1 pm
Dynamic Range: 30 dB
Wavelength Repeatibility: +/-3 pm
Standard Number Of FBG Per Channel: 40 pcs
Connector: FC/APC
Interface: Ethernet
Software Support: Windows
Dimension: 260 x 210 x 62 mm
Operation Humidity: 0-80 %RH
Operation Temperature: -5 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
Input Voltage: DC 12V
Maximum Power: 30 W
Document icon Download Data Sheet Download icon

Features


  • Built-in wavelength module

  • Spectral Diagnostic View for optimizing sensor system setup and operation

  • High stability and reliability

  • Fast, simple and repeatable installation

Applications


  • Continuous lifetime health monitoring of bridges, dams, buildings, tunnels, ships, aircraft, trains, and other complex structures.

  • Measurements of fiber Bragg grating (FBG) strain gages, temperature probes, accelerometers, pressure, displacement, and other FBG sensors.

  • Simultaneous static and dynamic measurement.
