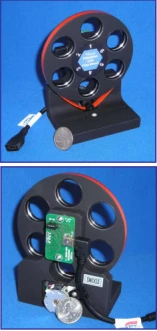

USB-FilterWheel System
Description
USB-FilterWheel System.
USB-FilterWheel System
Specifications |
|
|---|---|
| Range: | -- degrees |
| Resolution: | -- degrees |
| Accuracy (unidirectional): | -- degrees |
| Repeatability: | Custom degrees |
| Backlash: | Custom |
| Encoder Resolution: | -- states/rev |
Features
USB powered and controlled filter wheel system
Holds six standard 1.0” (25mm) optics with 1.0” mounting/retaining rings
All filter positions have clear apertures (no filter positions are obstructed)
Mounts on standard optical tables with .-20 screws on 1.0” centers
Motorized or manual override control of the filter wheel’s position
Low power, motor is energized only when
moving the filter wheel (changing filter
positions)
Quiet long life stepper motor operation for reliable and repeatable filter wheel positioning
Absolute positional sensing is used to insure proper wheel positioning
USB Hot pluggable with Auto-detection
Easy to use Windows (XP/Vista) based User Interface software, LabView drivers and DLL files included
A Quad System comes with four FilterWheels, an externally powered 4-port USB Hub and 10’ (3 meter) USB cables
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Yes, the USB-FilterWheel System can be mounted on standard optical tables with ¼-20 screws on 1.0” centers.
The Quad System comes with four FilterWheels, an externally powered 4-port USB Hub and 10’ (3 meter) USB cables.
Yes, the USB-FilterWheel System is easy to use. It comes with Windows (XP/Vista) based User Interface software, LabView drivers and DLL files included.
A single unit of the USB-FilterWheel System costs $785.
The USB-FilterWheel System is a filter wheel system that is powered and controlled by USB. It can hold six standard 1.0” (25mm) optics with 1.0” mounting/retaining rings.
