Motorized Filter Wheel X-FWR06A-FH0625
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's X-FWR Series represents the pinnacle of motorized filter wheel technology, offering a seamless blend of high-speed performance and user-friendly design. These filter wheels are engineered to provide rapid filter changes, making them an ideal choice for applications requiring quick adjustments. The X-FWR Series boasts a low-profile design that integrates easily into various setups, ensuring versatility and ease of use.
Each unit in the X-FWR Series comes equipped with interchangeable filter holders that accommodate either 25 mm or 32 mm optics, catering to a wide range of optical needs. The inclusion of an indexed knob allows for manual control, providing flexibility for operations that may not require computer connectivity. This feature ensures that the device remains functional and efficient, even in standalone scenarios.
Designed with connectivity in mind, the X-FWR Series can be easily integrated into existing systems through RS-232 or USB ports. This connectivity is further enhanced by the ability to daisy-chain with other Zaber products, allowing for shared power and streamlined operation across multiple devices. The secure, locking 4-pin M8 connectors ensure robust connections, minimizing the risk of disconnection during operation.
The X-FWR Series is crafted to be 'plug and play', emphasizing ease of setup and operation. With its built-in controller and compatibility with Zaber's ASCII and Binary communication protocols, the series provides a straightforward user experience. This makes it an excellent choice for both novice users and seasoned professionals looking to enhance their optical setups with reliable, high-performance filter wheels.

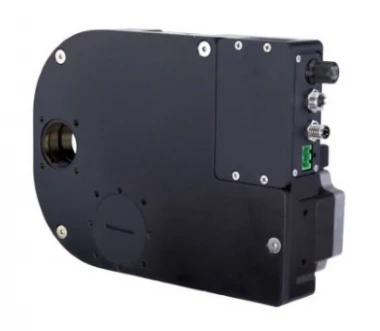

Motorized Filter Wheel X-FWR06A-FH0625
Specifications |
|
|---|---|
| Range: | 360 degrees |
| Resolution: | 0.010714285 degrees |
| Accuracy (unidirectional): | 0.4 degrees |
| Repeatability: | <0.1 degree degrees |
| Backlash: | <0.2 degree |
| Encoder Resolution: | 1 states/rev |
Features
- Interchangeable Filter Holders: Accommodates 25 mm optics (10 positions) or 32 mm optics (7 positions).
- High-Speed Filter Changes: Smooth operation with an adjacent filter change time of 57 ms for the 10-position wheel.
- Built-in Controller: Easily daisy-chain with other Zaber products for seamless integration.
- Versatile Mounting: Compatible with optical cage systems and C-mount components.
- Stand-Alone Operation: Requires only a standard 48 V power supply for functionality.
- Manual Control: Indexed knob allows for manual operation without a computer.
- Easy Connectivity: Connects to RS-232 or USB ports and shares power through daisy-chaining.
- Secure Connections: Features convenient locking, 4-pin, M8 connectors for secure unit connections.
- Plug and Play Design: Simple setup and operation, typical of Zaber's product line.
- Precision and Accuracy: Offers a micro step size of 0.010714285° with an accuracy of 0.4° and repeatability of < 0.1°.
- Wide Range of Motion: 360° range with minimal backlash of < 0.19°.
- Compatible Optics: Supports optic thickness up to 6.5 mm and diameters of 25 mm.
- Robust Motor: Stepper motor with 200 steps per revolution and a rated current of 2100 mA/phase.
- Environmentally Compliant: RoHS and CE compliant.
- Durable Construction: Weighs 1.478 kg and includes a magnetic home sensor for limit or home sensing.
- Flexible Mounting Options: M6 threaded hole for optic post and M3 holes for AP134 post mount adaptor.
Applications
- Spectroscopy Systems: Enables rapid and precise filter changes for wavelength selection.
- Fluorescence Microscopy: Supports fast multi-wavelength imaging for biological and materials research.
- Laser Experiments: Allows quick switching of optical filters in laser alignment and attenuation setups.
- Automated Optical Testing: Ideal for automated systems requiring programmable, high-speed filter changes.
- Optical Measurement Systems: Enhances efficiency in photometric and radiometric testing applications.
Frequently Asked Questions
The X-FWR Series is a computer-controlled, motorized filter wheel with high speed filter change capabilities and interchangeable filter holders.
Each filter wheel is sold with one included filter holder - FH0625 for 10 x 25 mm filter positions or FH0632 for 7 x 32 mm filter positions.
The X-FWR filter wheels are stand-alone units requiring only a standard 48 V power supply.
Yes, an indexed knob provides convenient manual control for versatile operation even without a computer.
These devices connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber products.
