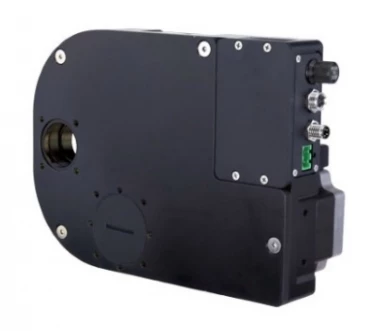

Thumbnail of Motorized Filter Wheel X-FWR06A-FH0632 photo 1

Description

The Zaber X-FWR Series represents a leap forward in motorized filter wheel technology, offering an efficient solution for high-speed filter changes with a sleek, low-profile design. Each device is equipped with interchangeable filter holders, allowing users to easily switch between FH0625 for 10 x 25 mm filter positions and FH0632 for 7 x 32 mm filter positions. With a focus on standalone functionality, these filter wheels require only a standard 48 V power supply, making integration into existing setups seamless.

Designed for versatility, the X-FWR Series features an indexed knob that enables manual control, ensuring ease of use even without computer assistance. Connectivity is a breeze with options to link via RS-232 or USB ports, allowing for daisy-chaining with other Zaber products. This daisy-chain capability not only simplifies the power supply requirements but also enhances the operational synergy of multiple devices. Secure connections are guaranteed with the convenient locking 4-pin M8 connectors, ensuring reliability in any configuration.

True to Zaber's commitment to user-friendly design, the X-FWR Series is engineered for 'plug and play' simplicity. This ease of setup and operation is complemented by the robust build quality and precision engineering that Zaber is known for. Ideal for those seeking a streamlined, efficient solution for motion control, the X-FWR Series combines cutting-edge technology with practical functionality to meet the demands of modern applications.

Motorized Filter Wheel X-FWR06A-FH0632

Visit the Zaber Technologies Store

Specifications

Range: 360 degrees
Resolution: 0.010714285 degrees
Accuracy (unidirectional): 0.4 degrees
Repeatability: <0.1 degree degrees
Backlash: <0.2 degree
Encoder Resolution: 1 states/rev

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Speed Filter Change: Zaber's X-FWR Series offers rapid filter switching capabilities, enhancing operational efficiency.
  • Low Profile Design: Compact and sleek, these filter wheels are designed to fit seamlessly into various setups.
  • Interchangeable Filter Holders: Comes with one filter holder, supporting either 10 x 25 mm or 7 x 32 mm filter positions.
  • Stand-Alone Operation: Requires only a standard 48 V power supply, ensuring easy and independent operation.
  • Manual and Computer Control: Features an indexed knob for manual control and connects to RS-232 or USB for computer control.
  • Daisy-Chain Capability: Can be linked with other Zaber products, sharing power and simplifying setup.
  • Secure Connections: Equipped with locking 4-pin, M8 connectors for reliable inter-device connectivity.
  • Plug and Play: Designed for easy setup and operation, minimizing downtime and technical hassle.
  • Precision and Accuracy: Offers a microstep size of 0.010714285° with an accuracy of 0.4° and repeatability of < 0.1°.
  • Wide Range of Compatibility: Supports optics with a thickness of up to 6.5 mm and diameters between 31-32 mm.
  • Efficient Power Usage: Maximum current draw of 650 mA, compatible with 24-48 VDC power supply.
  • Stepper Motor: Utilizes a 2-phase stepper motor with 200 steps per revolution for precise control.
  • Magnetic Home Sensor: Features a magnetic sensor for accurate limit or home sensing.
  • Versatile Mounting Options: Includes M6 threaded hole for optic post and M3 holes for AP134 post mount adaptor.
  • Compliance and Safety: RoHS and CE compliant, ensuring safety and environmental standards.
  • Durable Build: Weighs 1.473 kg, offering robust construction for long-term use.

Applications

  • Spectroscopy Systems: Enables rapid filter switching for wavelength selection.
  • Fluorescence Microscopy: Allows fast multi-wavelength imaging in microscopy setups.
  • Laser Experiments: Facilitates quick attenuation or wavelength adjustments in laser paths.
  • Automated Optical Testing: Integrates into systems requiring programmable filter changes.
  • Optical Measurement Setups: Enhances efficiency in photometric and radiometric testing.

Frequently Asked Questions

What is the X-FWR Series device?
The X-FWR Series device is a computer-controlled, motorized filter wheel with high speed filter change capabilities, a low profile, and interchangeable filter holders.
What filter holders are included with the X-FWR filter wheel?
Each filter wheel is sold with one included filter holder. The FH0625 is for 10 x 25 mm filter positions and the FH0632 is for 7 x 32 mm filter positions.
What type of power supply is required for the X-FWR filter wheel?
The X-FWR filter wheel is a stand-alone unit requiring only a standard 48 V power supply.
Can the X-FWR filter wheel be controlled manually?
Yes, an indexed knob provides convenient manual control for versatile operation even without a computer.
What is the communication interface for the X-FWR filter wheel?
The X-FWR filter wheel can connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber products.

Got more questions? Use the inquiry form to ask the supplier directly.
