Description

AKG series high precision manual goniometer is a precision goniometer stage with a large table size of 60×60 mm. The travel range is up to 10°.

This High Precision Manual Goniometer Stage is made of black anodized aluminum that offers light yet rigid construction and minimizes stray light in situation where light sensitivity is important.

We offer two models of these stages with 10 and 8 degrees of travel range. Please refer to the downloadable data sheet for detailed list of specifications and inquire if anything is not clear.

Both models come with a horizontal fixing screw that allows fixing the rotation angle after fine adjustment.

The models are equipped with a high end precision micrometer that changes the angle by less than 1.5 degrees with a complete turn.

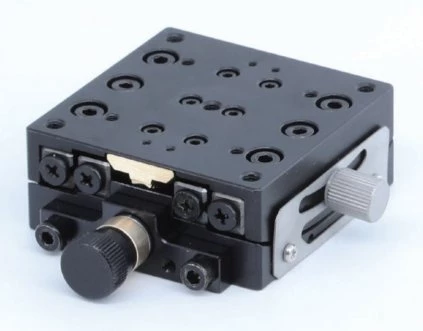

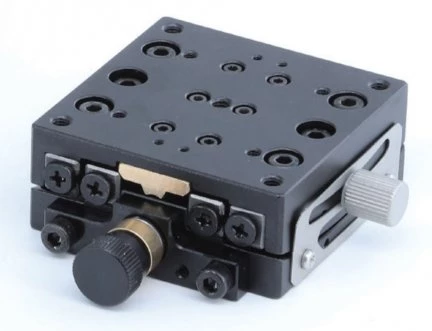

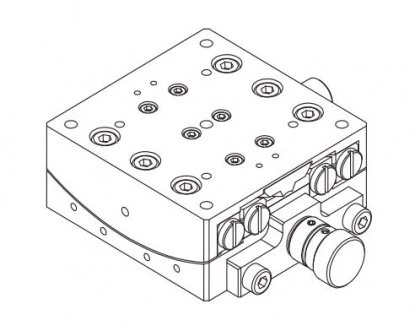

High Precision Manual Goniometer Stage (AKG series by Zolix)

Specifications

Travel Range: -10 – 10 deg
Center Of Rotation: 50 mm
Load Capacity (horizontal): 5 kg
Load Capacity (vertical): Not Specified
Table Size: 60 mm
Guiding Mechanism: Not Specified
Axes Of Motion: One Axis
Drive Position: Center Drive
Material: Black Anodized Aluminum
Thickness: 25 mm
Transmission Ratio: 252:1
Weight: 0.36 kg
Rotation Center Runoujt: ≤15 µm
Rotation By One Full Turn Of Micrometer: ≈1.43 degree

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

We currently offer two distinct models of this High Precision Manual Goniometer Stage:

AKG50-60: ±10 degrees in travel
AKG75-60: ±8 degrees in travel

Applications

This High Precision Manual Goniometer Stage is used for changing the sample's yaw and pitch precisely. Thanks to their rigid construction, precision and durability they are the perfect choice for many demanding applications including but not limited to:
  • Spectroscopy
  • Optical alignment
  • Rapid prototyping
  • Fine tuning of laser crystals

Frequently Asked Questions

What material is this High Precision Manual Goniometer Stage made of?
We use black anodized aluminum alloy that offer light yet rigid construction and minimizes stray light.
What is the maximum travel range on these goniometer stages?
We have two models: the travel range on our AKG50-60 is ±10 degrees and the travel range on our AKG75-60 is ±8 degrees.
Is the table size different on different models?
Both models of this High Precision Manual Goniometer Stage come with a 60mm x 60mm stage.
Does the baseplate have predrilled holes?
Yes, both models come with baseplates that have predrilled holes (4-M3 and 5-M4). In the downloadable data sheet we show the placement and size of the holes.
How much is this goniometer stage?
We have two different models and the pricing on our stages might vary based on quantity ordered, etc. Please contact us for pricing information, for a personalized quote or for ordering information.

Got more questions? Use the inquiry form to ask the supplier directly.
