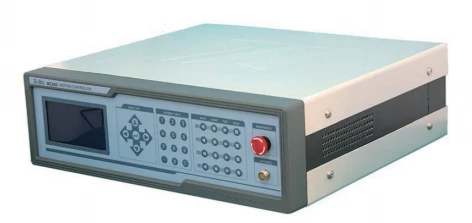

Thumbnail of MC600 series controllers photo 1

Description

MC600 series products are high-performance controllers designed and manufactured by Zolix. They employ 32-bit DSPs to realize 3-axis linear interpolation and 2-axis circle interpolation with closed-cycle feedback with each axis. They can be operated with a built-in SD cards which means that host computer is not a necessary part in the controlling systems.

MC600 series products can be used for the controlling of motorized linear stages, rotation stages and goniometers. Drivers of stepping motors and servo motors can be installed inside of MC600 controllers to provide higher operation reliability. They also ensure customers friendly HMI, full function of parameters setting and flexible IOs.

MC600 series controllers

Visit the Zolix Instruments CO.,LTD Store

Specifications

Types Of Motors Controlled: Linear
Controller FEatures: Unspecified

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 32-bit DSPs employed
  • Absolute- and relative-position control functions
  • Combination controlling of multi-stages
  • Offer four kinds of controlling units: pulse number, angle, mm and µm
  • Offer close-cycle controlling function by using external grating rulers
  • Provide controlling of initial speed, constant speed and acceleration speed separately
  • Can setup an arbitrary position as customer-defined origin point
  • Real-time readout of status parameters such as logic position, true position, driving speed and acceleration speed
  • 16-channel IOs provides enough host- and slave-controlling functions
  • 240*180 liquid-crystal display panel
  • Controlling parameters can be saved before turn down, easy for next operation
  • Controlling function of optional handles
  • Zolix MC600 control software provided

Applications

  • Laser optics
  • Spectroscopy
  • Mechatronics

Frequently Asked Questions

What are the main features of the MC600 series controllers?
The main features of the MC600 series controllers include 32-bit DSPs, absolute- and relative-position control functions, combination controlling of multi-stages, and four kinds of controlling units: pulse number, angle, mm, and µm.
What can the MC600 series controllers be used for?
The MC600 series controllers can be used for the controlling of motorized linear stages, rotation stages, and goniometers.
Can drivers of stepping motors and servo motors be installed inside the MC600 controllers?
Yes, drivers of stepping motors and servo motors can be installed inside the MC600 controllers to provide higher operation reliability.
Does the MC600 series controllers require a host computer for operation?
No, the MC600 series controllers can be operated with a built-in SD card, which means that a host computer is not a necessary part of the controlling systems.
What are the controlling parameters that can be saved before turning down the MC600 series controllers?
The controlling parameters that can be saved before turning down the MC600 series controllers include logic position, true position, driving speed, and acceleration speed.

Got more questions? Use the inquiry form to ask the supplier directly.
