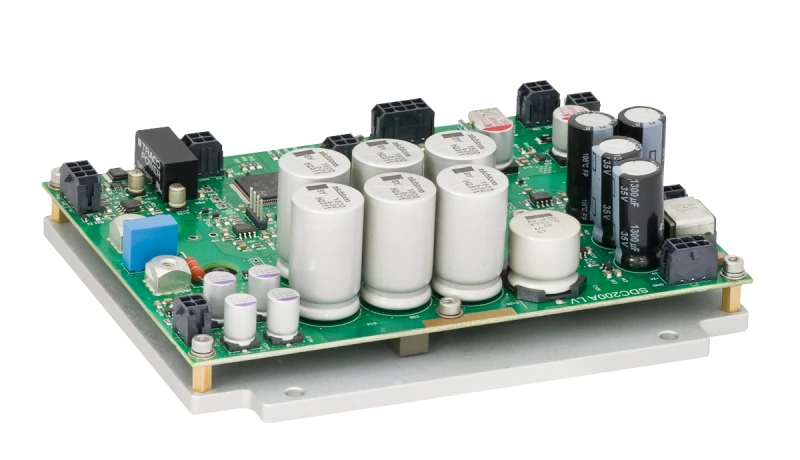

The SDC-200 series diode driver is a sophisticated solution tailored for the precise needs of medium-power Nd:YAG-like solid-state laser systems. This family of drivers is engineered to deliver exceptional performance, integrating a robust current source, a buffer capacitor bank, and a capacitor charger. Additionally, the SDC-200 series includes one or two TEC modules, enhancing its versatility and functionality. This driver is adept at powering and controlling a Pockels cell driver, facilitating the generation of Q-switched pulses, which are crucial for various laser applications. Furthermore, the SDC-200 series is equipped to send adjustable output synchronization signals to other equipment, ensuring seamless integration into complex systems.

One of the standout features of the SDC-200 series is its comprehensive control capabilities. Users can manage critical parameters such as output current, buffer voltage, pulse width, and pulse repetition rate through a computer interface. The default communication interface is RS-485, although RS-232 is available upon request, providing flexibility to meet diverse operational requirements. This level of control ensures that the SDC-200 series can be precisely tuned to meet the specific demands of different laser applications, making it a versatile choice for professionals in the field.

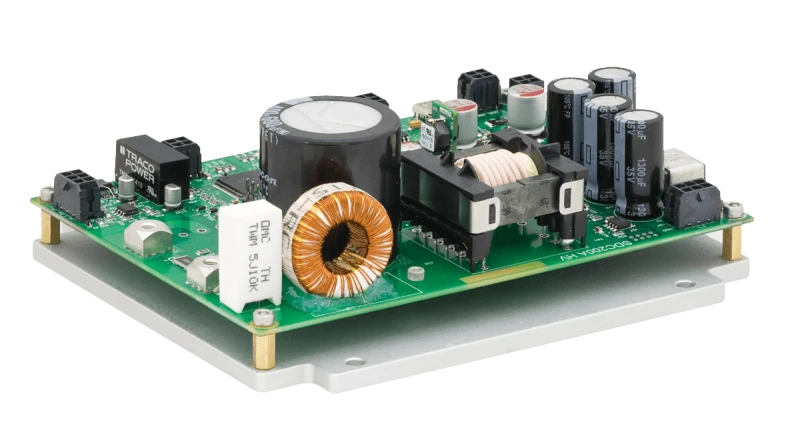

Designed with both low-voltage and high-voltage versions, the SDC-200 series caters to a wide range of operational needs. Its robust construction and advanced features make it an ideal choice for those seeking reliable and efficient laser diode drivers. Whether you are working with standard configurations or require customized solutions, the SDC-200 series offers the adaptability and performance necessary to achieve optimal results in your laser systems.
